Inpage Navigation Section: Overview

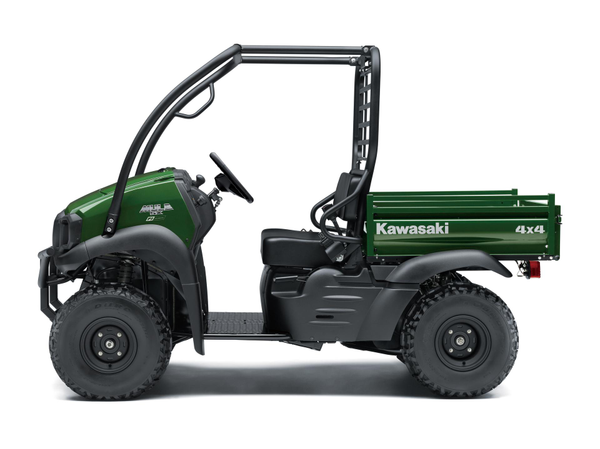

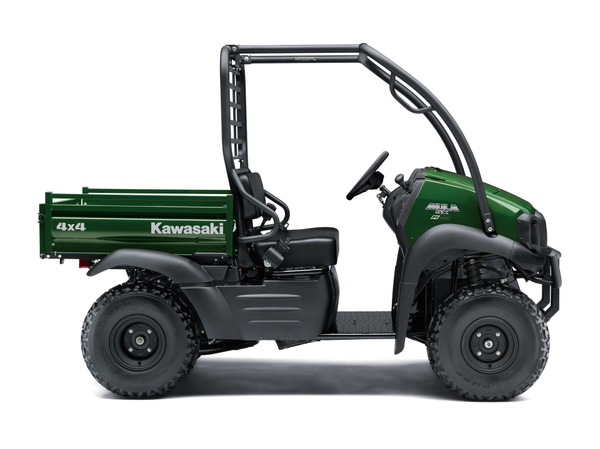

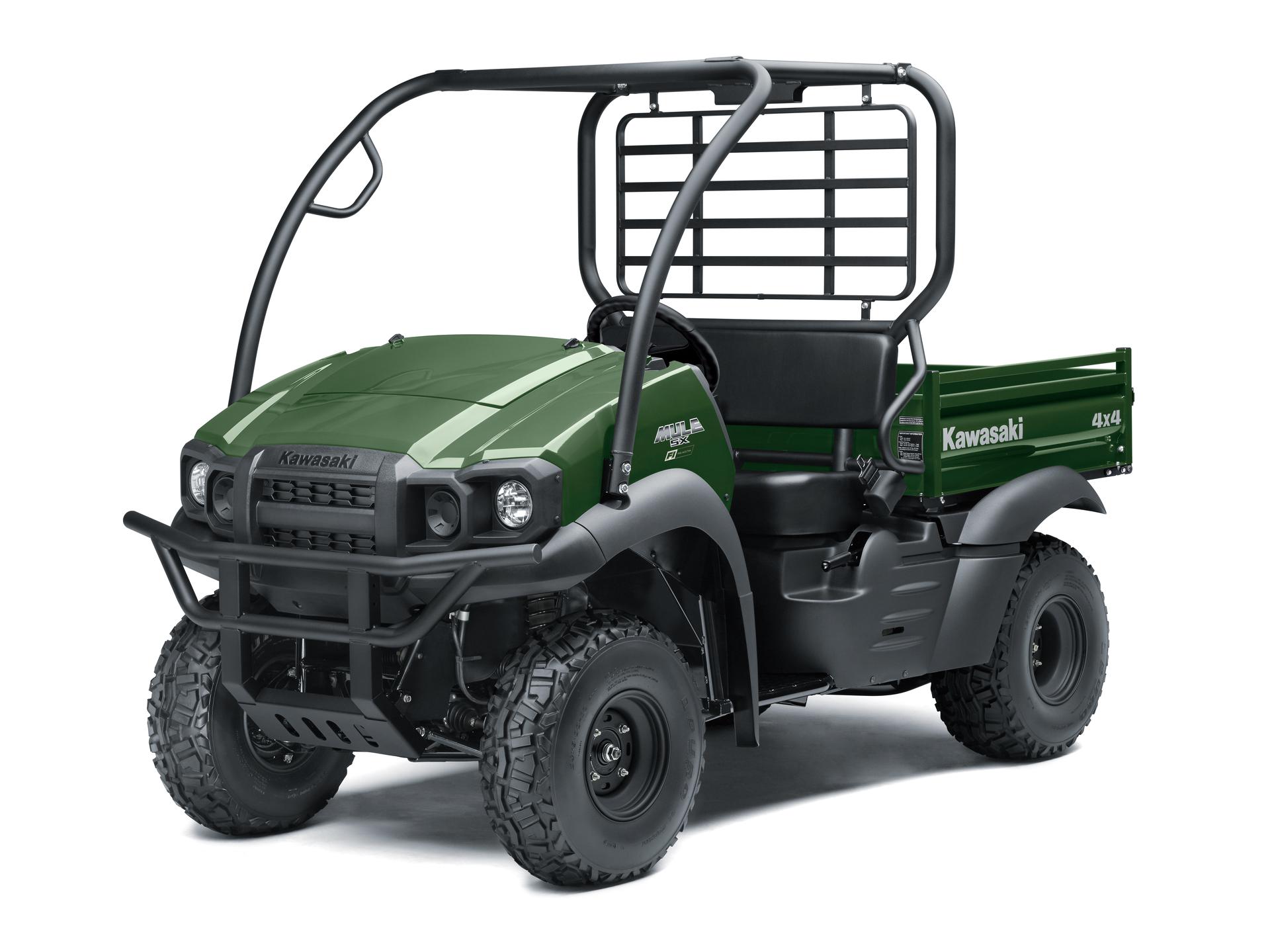

The MULE SX 4x4 rides on 24 inch tyres and offers selectable 2WD and 4WD with Hi-Lo dual-range transfer case and rear differential lock. Kawasaki PRO styling, tilting steering wheel and the dependable OHV 410cc engine, 181kg load and 500kg towing capacity make this is a true Go-Anywhere vehicle.
Colour
Edition of MULE SX 4x4
Inpage Navigation Section: Gallery
Inpage Navigation Section: Features & Specs
Highly durable ladder-type tubular steel frame designed for an ideal blend of rigidity and ride comfort.
Highly durable ladder-type tubular steel frame designed for an ideal blend of rigidity and ride comfort.
Removable front hood allows quick access to a spacious 60-litre sealed storage area. The hood releases are on the cab side, allowing access from inside the cab.
Removable front hood allows quick access to a spacious 60-litre sealed storage area. The hood releases are on the cab side, allowing access from inside the cab.
Cargo bed dimensions are 1,040 x 905 x 245 mm. Its square, flat design makes it easy to load from three sides. Cargo bed load capacity is 181 kg
Cargo bed dimensions are 1,040 x 905 x 245 mm. Its square, flat design makes it easy to load from three sides. Cargo bed load capacity is 181 kg
Idealised front and rear suspension settings offer the following benefits: - increased stability - improved suspension action, contributing to off-road bump absorption and ground following, as well as increased ride comfort - improved handling response, facilitating control
Idealised front and rear suspension settings offer the following benefits: - increased stability - improved suspension action, contributing to off-road bump absorption and ground following, as well as increased ride comfort - improved handling response, facilitating control
The MULE SX is powered by a 401 cm3, 4-stroke, OHV, air-cooled engine. Compact, lightweight and durable, the engine is extremely reliable.
The MULE SX is powered by a 401 cm3, 4-stroke, OHV, air-cooled engine. Compact, lightweight and durable, the engine is extremely reliable.
Steering wheel has a stepless adjustability range of approximately 29o, allowing drivers to set its position to suit their preference, as well as lift it out of the way to facilitate getting in and out of the vehicle
Steering wheel has a stepless adjustability range of approximately 29o, allowing drivers to set its position to suit their preference, as well as lift it out of the way to facilitate getting in and out of the vehicle
Pulling the parking brake lever (conveniently located to the left of the driver’s seat) operates a mechanical internal expansion type brakefor the rear wheels.
Pulling the parking brake lever (conveniently located to the left of the driver’s seat) operates a mechanical internal expansion type brakefor the rear wheels.
16-litre fuel tank gives the fuel-efficient MULEs ample operating range. Redesigned fuel tank filler hole makes refuelling much easier.
16-litre fuel tank gives the fuel-efficient MULEs ample operating range. Redesigned fuel tank filler hole makes refuelling much easier.
Overall width is 1,335 mm; length is 2,710 mm. Tread measures 1,055 mm (front) and 1,000 mm (rear). Wheelbase is 1,780 mm.
Overall width is 1,335 mm; length is 2,710 mm. Tread measures 1,055 mm (front) and 1,000 mm (rear). Wheelbase is 1,780 mm.
Pickup truck style front hood, front grill and headlamp design modelled after the PRO Series MULE flagship models give the MULE SX models a tougher, rugged image like their bigger brethren.
Pickup truck style front hood, front grill and headlamp design modelled after the PRO Series MULE flagship models give the MULE SX models a tougher, rugged image like their bigger brethren.
Belt-driven automatic transmission with a Hi-Lo dual-range transfer case gives the 4WD models excellent off-road riding capability. Two forward speeds to choose from lend flexibility when hill-climbing with a heavy load.
Belt-driven automatic transmission with a Hi-Lo dual-range transfer case gives the 4WD models excellent off-road riding capability. Two forward speeds to choose from lend flexibility when hill-climbing with a heavy load.
Automotive-style dashboard designed based on that of the PRO Series models puts all controls within easy reach of the driver.
Automotive-style dashboard designed based on that of the PRO Series models puts all controls within easy reach of the driver.
Highly durable ladder-type tubular steel frame designed for an ideal blend of rigidity and ride comfort.
Highly durable ladder-type tubular steel frame designed for an ideal blend of rigidity and ride comfort.
Removable front hood allows quick access to a spacious 60-litre sealed storage area. The hood releases are on the cab side, allowing access from inside the cab.
Removable front hood allows quick access to a spacious 60-litre sealed storage area. The hood releases are on the cab side, allowing access from inside the cab.
Cargo bed dimensions are 1,040 x 905 x 245 mm. Its square, flat design makes it easy to load from three sides. Cargo bed load capacity is 181 kg
Cargo bed dimensions are 1,040 x 905 x 245 mm. Its square, flat design makes it easy to load from three sides. Cargo bed load capacity is 181 kg
Idealised front and rear suspension settings offer the following benefits: - increased stability - improved suspension action, contributing to off-road bump absorption and ground following, as well as increased ride comfort - improved handling response, facilitating control
Idealised front and rear suspension settings offer the following benefits: - increased stability - improved suspension action, contributing to off-road bump absorption and ground following, as well as increased ride comfort - improved handling response, facilitating control
The MULE SX is powered by a 401 cm3, 4-stroke, OHV, air-cooled engine. Compact, lightweight and durable, the engine is extremely reliable.
The MULE SX is powered by a 401 cm3, 4-stroke, OHV, air-cooled engine. Compact, lightweight and durable, the engine is extremely reliable.
Steering wheel has a stepless adjustability range of approximately 29o, allowing drivers to set its position to suit their preference, as well as lift it out of the way to facilitate getting in and out of the vehicle
Steering wheel has a stepless adjustability range of approximately 29o, allowing drivers to set its position to suit their preference, as well as lift it out of the way to facilitate getting in and out of the vehicle
Pulling the parking brake lever (conveniently located to the left of the driver’s seat) operates a mechanical internal expansion type brakefor the rear wheels.
Pulling the parking brake lever (conveniently located to the left of the driver’s seat) operates a mechanical internal expansion type brakefor the rear wheels.
16-litre fuel tank gives the fuel-efficient MULEs ample operating range. Redesigned fuel tank filler hole makes refuelling much easier.
16-litre fuel tank gives the fuel-efficient MULEs ample operating range. Redesigned fuel tank filler hole makes refuelling much easier.
Overall width is 1,335 mm; length is 2,710 mm. Tread measures 1,055 mm (front) and 1,000 mm (rear). Wheelbase is 1,780 mm.
Overall width is 1,335 mm; length is 2,710 mm. Tread measures 1,055 mm (front) and 1,000 mm (rear). Wheelbase is 1,780 mm.
Pickup truck style front hood, front grill and headlamp design modelled after the PRO Series MULE flagship models give the MULE SX models a tougher, rugged image like their bigger brethren.
Pickup truck style front hood, front grill and headlamp design modelled after the PRO Series MULE flagship models give the MULE SX models a tougher, rugged image like their bigger brethren.
Belt-driven automatic transmission with a Hi-Lo dual-range transfer case gives the 4WD models excellent off-road riding capability. Two forward speeds to choose from lend flexibility when hill-climbing with a heavy load.
Belt-driven automatic transmission with a Hi-Lo dual-range transfer case gives the 4WD models excellent off-road riding capability. Two forward speeds to choose from lend flexibility when hill-climbing with a heavy load.
Automotive-style dashboard designed based on that of the PRO Series models puts all controls within easy reach of the driver.
Automotive-style dashboard designed based on that of the PRO Series models puts all controls within easy reach of the driver.
Engine Type | Air-cooled, 4-stroke, single-cylinder |
---|---|
Compression ratio | 8.6:1 |
Valve system | OHV |
Bore x stroke | 82.0 x 76.0 mm |
Displacement | 401 cm³ |
Fuel System | Fuel injection |
Lubrication | Forced lubrication, wet sump |
Starting system | Electric |
Ignition | Battery & Coil (transistorised ignition) |
Maximum power | 9.9 kW {13.5 PS} / 4,000 rpm |
---|---|
Maximum torque | 29.7 N•m {3.0 kgf•m} / 2,400 rpm |
Transmission | CVT, 2-speed & reverse, automatic |
Primary reduction ratio | 3.653 ~ 0.794 |
Primary drive | Belt drive torque converter (CVT) |
Final drive | Shaft 2WD/4WD |
Final reduction ratio | 4.000 (64/16) |
Frame type | Tubular ladder type steel |
---|---|
Wheel travel front | 78 mm |
Wheel travel rear | 79 mm |
Tyre, front | 24 x 9-10 |
Tyre, rear | 24 x 11-10 |
L x W x H | 2,710 x 1,335 x 1,800 mm |
Steering angle L R | 43° / 38° (43° in - 38° out) |
Wheel base | 1,780 mm |
Ground clearance | 170 mm |
Fuel capacity | 16.0 litres |
Seat height | 780 mm |
Curb mass | 468 kg |
Parking brake | Mechanical internal expansion type on rear wheels |
---|---|
Front brake type | Dual hydraulic drums |
Rear brake type | Dual hydraulic drums |
Front suspension type | MacPherson struts |
Rear suspension type | Unit swingarm |
Inpage Navigation Section: Accessories
Automatically activates loud beep sound when shifted to reverse. Easy installation with plunger switch.
•Requires Gasket (92065058) and Switch (131511080)
Vertical shatter-resistant safety glass mirror sits in high-impact plastic housing. Convex mirror surface increases the driver’s field or rear view. Adaptive 360° bracket rotation provides optimal viewing position. Mirrors attach directly to vehicle ROPS
•Sold as a set of 2
*Can not be combined with hard cabin
The Pro Vantage 2500S offers the same class-leading premium components as the Pro Vantage 2500 but replaces the standard wire rope with 15,24 m (50') of 4,76 mm (3/16") synthetic rope and a double-powder-coated hawse fairlead
•Featuring 2,500 lbs. of pulling capacity, the Pro Vantage 2500S is ideal for recovering stuck vehicles on the trail or pulling heavy loads on the work site
•With an easy-to-use clutch dial, powerful permanent magnet motor, and all-metal gear ho
Help protect your cargo bed base with this tough 7,9 mm (5/16”) thick rubber mat. Extra thick rubber helps prevent cargo from sliding. Reduces sound levels caused from vibrations. 6,4 (4/16”) thick black molded rubber, Mule™ in the center of the mat.
Read MorePlastic liner to reduce damage to original bed surface. Matching cover for the tailgate supplied.
Read MoreOptional coil spring to replace standard spring. Order 2 per vehicle. (Spring rate 24.5 - 44.1N)
Read MoreIncrease night time visibility by adding these high power output LED headlights to your vehicle. Five individual LEDs in each light emit a bright white light.
•Sold as a set of two
Attaches to rear cross member of vehicle. Load rating determined by vehicle tow rating.
•Hitch Ball 50 mm (NL101B), sold separately.
The Canvas Cabin offers protection against the elements whilst being durable and light weight. The structure is made of high grade steel with a quality black finish. Fixed tinted single layer safety glass windscreen with rubber seals. Usage of Velcro allows for easy installation of the roof, doors and rear panel.
The transparant doors can be folded up or closed using the zippers.
Available in packages and as modular parts.
PACKAGES:
022CAT0096 : Canvas Cabin
Durable, weatherproof 18 oz. fiber-reinforced PVC laminate material. Installs easily with durable straps. Includes fiberglass support rod to shape peak.
•Not to be used with hard cabin windscreen
•Remove for towing or use an enclosed trailer when transporting a vehicle with a Soft Roof.
The Tool Mounting System from Kawasaki is a highly adaptable and practical addition to your vehicle. Designed specifically for the Kawasaki side-by-side models, this system allows you to securely attach a variety of tools to your vehicle. Whether you need to mount additional storage, equipment, or accessories, this versatile system provides a reliable and convenient solution. Its durable construction ensures long-lasting performance, while its easy installation process makes it user-friendly for all levels of experience. Upgrade your vehicle's functionality with the Tool Mounting System and enjoy the freedom to customize your ride according to your specific needs.
