You can beat all opponents, but there is always a challenge you still have to face, the one within yourself. For those like you who rise to any challenge, we have developed the bike that a true champion deserves. The new Ninja ZX-10R & Ninja ZX-10RR have what it takes to win: all new aerodynamic body with integrated winglets, small & light LED headlights, TFT colour instrumentation, and Smartphone connectivity plus updates derived from Kawasaki Racing Team World Superbike expertise. Now that you have the definitive race focused Ninja, Face Yourself.
Colour
Show all
Show less
Edition Accessories
Show all
Show less
Inpage Navigation Section: Gallery
Inpage Navigation Section: Features & Specs
Fitted inside the airbox, the VAI system uses a set of movable intake funnels to alter the intake funnel height. When the VAI funnels are raised, intake air bypasses the system for optimal high rpm performance; when lowered, intake air passes through the taller intake funnels, for increased low-mid range performance. Movement of the funnels is regulated to maximize output at all rpm. The use of the VAI system is limited to racing applications. To activate the system, the bike must be fitted with the race-kit ECU and sub-controller. In street-legal configuration, the system is inactive: the funnels are fixed in the raised position.
Fitted inside the airbox, the VAI system uses a set of movable intake funnels to alter the intake funnel height. When the VAI funnels are raised, intake air bypasses the system for optimal high rpm performance; when lowered, intake air passes through the taller intake funnels, for increased low-mid range performance. Movement of the funnels is regulated to maximize output at all rpm. The use of the VAI system is limited to racing applications. To activate the system, the bike must be fitted with the race-kit ECU and sub-controller. In street-legal configuration, the system is inactive: the funnels are fixed in the raised position.
7-spoke multi-directional forged aluminium wheels specially developed by Marchesini contribute to lighter handling – especially when changing direction. They offer a balance of high rigidity and a significantly reduced moment of inertia, while their machined finish contributes to a high-quality appearance.
7-spoke multi-directional forged aluminium wheels specially developed by Marchesini contribute to lighter handling – especially when changing direction. They offer a balance of high rigidity and a significantly reduced moment of inertia, while their machined finish contributes to a high-quality appearance.
The use of lightweight titanium connecting rods contributes to the Ninja ZX-10RR’s high rev limit, as well as its 1 PS† peak power advantage versus the standard model Ninja ZX-10R.
The use of lightweight titanium connecting rods contributes to the Ninja ZX-10RR’s high rev limit, as well as its 1 PS† peak power advantage versus the standard model Ninja ZX-10R.
Lightweight pistons save 20 g each. The lower reciprocating weight aids in achieving the higher rev limit and contributes to smoothclimbing revs.
Lightweight pistons save 20 g each. The lower reciprocating weight aids in achieving the higher rev limit and contributes to smoothclimbing revs.
Piston pins are matched to the pistons and feature a DLC (Diamond-Like Carbon) coating to protect against wear.
Piston pins are matched to the pistons and feature a DLC (Diamond-Like Carbon) coating to protect against wear.
RR-specific camshafts, designed to elicit high-rpm performance.
The Ninja ZX-10R’s gear ratios were idealised for circuit riding. A larger rear sprocket (39T >> 41T) and shorter ratios for 1st, 2nd and 3rd gears offer strong low-mid range acceleration for quicker corner exits, as well as quicker off-the-line acceleration for strong launches on the circuit.
The Ninja ZX-10R’s gear ratios were idealised for circuit riding. A larger rear sprocket (39T >> 41T) and shorter ratios for 1st, 2nd and 3rd gears offer strong low-mid range acceleration for quicker corner exits, as well as quicker off-the-line acceleration for strong launches on the circuit.
All-inclusive modes that link S-KTRC and Power Mode allow riders to efficiently set traction control and power delivery to suit a given riding situation.
All-inclusive modes that link S-KTRC and Power Mode allow riders to efficiently set traction control and power delivery to suit a given riding situation.
Based on feedback from Kwasaki's WSB race machine, the new air cooled oil cooler features an independent circuit. A design often seen on highperformance models.
Based on feedback from Kwasaki's WSB race machine, the new air cooled oil cooler features an independent circuit. A design often seen on highperformance models.
The single seat enhances the track focus of the Ninja ZX-10RR.
The compact new all-digital TFT colour instrumentation gives the cockpit a high-tech, high-grade appearance. The new meter also offers additional features unavailable on the previous model.
The compact new all-digital TFT colour instrumentation gives the cockpit a high-tech, high-grade appearance. The new meter also offers additional features unavailable on the previous model.
The Ninja ZX-10RR is fit standard with top of the range Pirelli Diablo Supercorsa SP tyres.
The Ninja ZX-10RR is fit standard with top of the range Pirelli Diablo Supercorsa SP tyres.
The aerodynamic racer-inspired front cowl, highlighted by compact LED headlights, new Ram Air intake and a taller windshield, is the “face” of the Ninja ZX-10R’s nextgeneration Ninja styling.
The aerodynamic racer-inspired front cowl, highlighted by compact LED headlights, new Ram Air intake and a taller windshield, is the “face” of the Ninja ZX-10R’s nextgeneration Ninja styling.
Kawasaki’s cruise control system allows a desired speed to be maintained with the simple press of a button. Once activated, the rider does not have to constantly apply the throttle. This reduces stress on the right hand when traveling long distances, enabling relaxed cruising and contributing to a high level of riding comfort.
Kawasaki’s cruise control system allows a desired speed to be maintained with the simple press of a button. Once activated, the rider does not have to constantly apply the throttle. This reduces stress on the right hand when traveling long distances, enabling relaxed cruising and contributing to a high level of riding comfort.
Complementing the highly acclaimed stability of the 2019 model, updates to the chassis geometry contribute to increased cornering performance and light handling.
Complementing the highly acclaimed stability of the 2019 model, updates to the chassis geometry contribute to increased cornering performance and light handling.
Dual high-spec Brembo M50 monobloc calipers gripping large Ø 330 mm discs, specially prepared radial-pump master cylinder and race-quality steel-braided lines* deliver next-level braking performance. *Steel-braided lines on the Ninja ZX-10RR only
Dual high-spec Brembo M50 monobloc calipers gripping large Ø 330 mm discs, specially prepared radial-pump master cylinder and race-quality steel-braided lines* deliver next-level braking performance. *Steel-braided lines on the Ninja ZX-10RR only
Winglets built into the upper cowl generate downforce that helps keep the front wheel on the ground during strong acceleration.
Winglets built into the upper cowl generate downforce that helps keep the front wheel on the ground during strong acceleration.
In recognition of its achievement in the Superbike World Championship, special permission to use the River Mark on the Ninja ZX-10RR was granted. This is its first use on a nonsupercharged mass-production model.
In recognition of its achievement in the Superbike World Championship, special permission to use the River Mark on the Ninja ZX-10RR was granted. This is its first use on a nonsupercharged mass-production model.
Handlebar and footpeg positions contribute to a more aggressive, circuit-focused riding position, while a new seat design helps riders minimise drag when tucked behind the windshield going down the straight.
Handlebar and footpeg positions contribute to a more aggressive, circuit-focused riding position, while a new seat design helps riders minimise drag when tucked behind the windshield going down the straight.

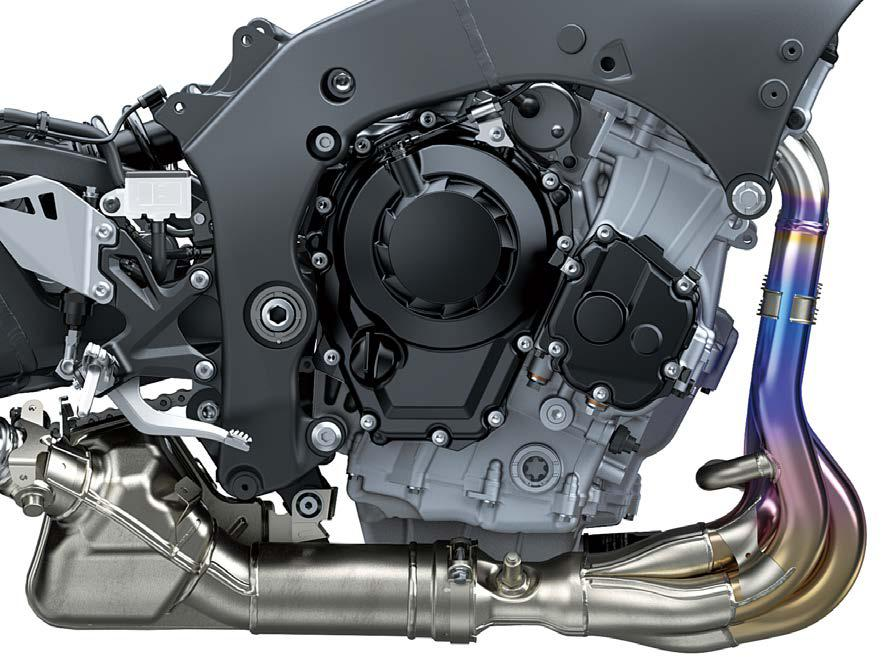

Updates to the Ninja ZX-10R’s powerful engine offer cleaner emissions while maintaining the performance of its predecessor.
Updates to the Ninja ZX-10R’s powerful engine offer cleaner emissions while maintaining the performance of its predecessor.
The WSB-developed BFF (Balance Free Front Fork) and BFRC lite (Balance Free Rear Cushion) shock benefit from more circuit-focused settings, including a lower spring rate (21.5 N/mm >>21.0 N/mm), complemented by firmer compression damping and softer rebound damping. The settings make it easier to weight front wheel, and contribute to lighter handling.
The WSB-developed BFF (Balance Free Front Fork) and BFRC lite (Balance Free Rear Cushion) shock benefit from more circuit-focused settings, including a lower spring rate (21.5 N/mm >>21.0 N/mm), complemented by firmer compression damping and softer rebound damping. The settings make it easier to weight front wheel, and contribute to lighter handling.
With an engine and chassis designed to be the fastest on the track, the Ninja ZX-10R offers a high level of circuit riding potential. To ensure it continues its race-winning ways, Kawasaki engineers made a host of changes that will benefit racers and World Superbike teams alike.
With an engine and chassis designed to be the fastest on the track, the Ninja ZX-10R offers a high level of circuit riding potential. To ensure it continues its race-winning ways, Kawasaki engineers made a host of changes that will benefit racers and World Superbike teams alike.
Technologies for street-riding enjoyment; Features like Electronic Cruise Control, full-colour TFT instrumentation, with smartphone connectivity all add to the experience.
Technologies for street-riding enjoyment; Features like Electronic Cruise Control, full-colour TFT instrumentation, with smartphone connectivity all add to the experience.
Powered by Kawasaki’s proprietary dynamic modelling program and enhanced with input from a Bosch IMU, the Ninja ZX-10R’s cutting-edge electronics contribute to the riding excitement of piloting a high-performance SuperSport machine. New features like integrated Riding Modes, Electronic Cruise Control and TFT instrumentation with smartphone connectivity add to street-riding enjoyment.
Powered by Kawasaki’s proprietary dynamic modelling program and enhanced with input from a Bosch IMU, the Ninja ZX-10R’s cutting-edge electronics contribute to the riding excitement of piloting a high-performance SuperSport machine. New features like integrated Riding Modes, Electronic Cruise Control and TFT instrumentation with smartphone connectivity add to street-riding enjoyment.
Fitted inside the airbox, the VAI system uses a set of movable intake funnels to alter the intake funnel height. When the VAI funnels are raised, intake air bypasses the system for optimal high rpm performance; when lowered, intake air passes through the taller intake funnels, for increased low-mid range performance. Movement of the funnels is regulated to maximize output at all rpm. The use of the VAI system is limited to racing applications. To activate the system, the bike must be fitted with the race-kit ECU and sub-controller. In street-legal configuration, the system is inactive: the funnels are fixed in the raised position.
Fitted inside the airbox, the VAI system uses a set of movable intake funnels to alter the intake funnel height. When the VAI funnels are raised, intake air bypasses the system for optimal high rpm performance; when lowered, intake air passes through the taller intake funnels, for increased low-mid range performance. Movement of the funnels is regulated to maximize output at all rpm. The use of the VAI system is limited to racing applications. To activate the system, the bike must be fitted with the race-kit ECU and sub-controller. In street-legal configuration, the system is inactive: the funnels are fixed in the raised position.
7-spoke multi-directional forged aluminium wheels specially developed by Marchesini contribute to lighter handling – especially when changing direction. They offer a balance of high rigidity and a significantly reduced moment of inertia, while their machined finish contributes to a high-quality appearance.
7-spoke multi-directional forged aluminium wheels specially developed by Marchesini contribute to lighter handling – especially when changing direction. They offer a balance of high rigidity and a significantly reduced moment of inertia, while their machined finish contributes to a high-quality appearance.
The use of lightweight titanium connecting rods contributes to the Ninja ZX-10RR’s high rev limit, as well as its 1 PS† peak power advantage versus the standard model Ninja ZX-10R.
The use of lightweight titanium connecting rods contributes to the Ninja ZX-10RR’s high rev limit, as well as its 1 PS† peak power advantage versus the standard model Ninja ZX-10R.
Lightweight pistons save 20 g each. The lower reciprocating weight aids in achieving the higher rev limit and contributes to smoothclimbing revs.
Lightweight pistons save 20 g each. The lower reciprocating weight aids in achieving the higher rev limit and contributes to smoothclimbing revs.
Piston pins are matched to the pistons and feature a DLC (Diamond-Like Carbon) coating to protect against wear.
Piston pins are matched to the pistons and feature a DLC (Diamond-Like Carbon) coating to protect against wear.
RR-specific camshafts, designed to elicit high-rpm performance.
The Ninja ZX-10R’s gear ratios were idealised for circuit riding. A larger rear sprocket (39T >> 41T) and shorter ratios for 1st, 2nd and 3rd gears offer strong low-mid range acceleration for quicker corner exits, as well as quicker off-the-line acceleration for strong launches on the circuit.
The Ninja ZX-10R’s gear ratios were idealised for circuit riding. A larger rear sprocket (39T >> 41T) and shorter ratios for 1st, 2nd and 3rd gears offer strong low-mid range acceleration for quicker corner exits, as well as quicker off-the-line acceleration for strong launches on the circuit.
All-inclusive modes that link S-KTRC and Power Mode allow riders to efficiently set traction control and power delivery to suit a given riding situation.
All-inclusive modes that link S-KTRC and Power Mode allow riders to efficiently set traction control and power delivery to suit a given riding situation.
Based on feedback from Kwasaki's WSB race machine, the new air cooled oil cooler features an independent circuit. A design often seen on highperformance models.
Based on feedback from Kwasaki's WSB race machine, the new air cooled oil cooler features an independent circuit. A design often seen on highperformance models.
The single seat enhances the track focus of the Ninja ZX-10RR.
The compact new all-digital TFT colour instrumentation gives the cockpit a high-tech, high-grade appearance. The new meter also offers additional features unavailable on the previous model.
The compact new all-digital TFT colour instrumentation gives the cockpit a high-tech, high-grade appearance. The new meter also offers additional features unavailable on the previous model.
The Ninja ZX-10RR is fit standard with top of the range Pirelli Diablo Supercorsa SP tyres.
The Ninja ZX-10RR is fit standard with top of the range Pirelli Diablo Supercorsa SP tyres.
The aerodynamic racer-inspired front cowl, highlighted by compact LED headlights, new Ram Air intake and a taller windshield, is the “face” of the Ninja ZX-10R’s nextgeneration Ninja styling.
The aerodynamic racer-inspired front cowl, highlighted by compact LED headlights, new Ram Air intake and a taller windshield, is the “face” of the Ninja ZX-10R’s nextgeneration Ninja styling.
Kawasaki’s cruise control system allows a desired speed to be maintained with the simple press of a button. Once activated, the rider does not have to constantly apply the throttle. This reduces stress on the right hand when traveling long distances, enabling relaxed cruising and contributing to a high level of riding comfort.
Kawasaki’s cruise control system allows a desired speed to be maintained with the simple press of a button. Once activated, the rider does not have to constantly apply the throttle. This reduces stress on the right hand when traveling long distances, enabling relaxed cruising and contributing to a high level of riding comfort.
Complementing the highly acclaimed stability of the 2019 model, updates to the chassis geometry contribute to increased cornering performance and light handling.
Complementing the highly acclaimed stability of the 2019 model, updates to the chassis geometry contribute to increased cornering performance and light handling.
Dual high-spec Brembo M50 monobloc calipers gripping large Ø 330 mm discs, specially prepared radial-pump master cylinder and race-quality steel-braided lines* deliver next-level braking performance. *Steel-braided lines on the Ninja ZX-10RR only
Dual high-spec Brembo M50 monobloc calipers gripping large Ø 330 mm discs, specially prepared radial-pump master cylinder and race-quality steel-braided lines* deliver next-level braking performance. *Steel-braided lines on the Ninja ZX-10RR only
Winglets built into the upper cowl generate downforce that helps keep the front wheel on the ground during strong acceleration.
Winglets built into the upper cowl generate downforce that helps keep the front wheel on the ground during strong acceleration.
In recognition of its achievement in the Superbike World Championship, special permission to use the River Mark on the Ninja ZX-10RR was granted. This is its first use on a nonsupercharged mass-production model.
In recognition of its achievement in the Superbike World Championship, special permission to use the River Mark on the Ninja ZX-10RR was granted. This is its first use on a nonsupercharged mass-production model.
Handlebar and footpeg positions contribute to a more aggressive, circuit-focused riding position, while a new seat design helps riders minimise drag when tucked behind the windshield going down the straight.
Handlebar and footpeg positions contribute to a more aggressive, circuit-focused riding position, while a new seat design helps riders minimise drag when tucked behind the windshield going down the straight.
Updates to the Ninja ZX-10R’s powerful engine offer cleaner emissions while maintaining the performance of its predecessor.
Updates to the Ninja ZX-10R’s powerful engine offer cleaner emissions while maintaining the performance of its predecessor.
The WSB-developed BFF (Balance Free Front Fork) and BFRC lite (Balance Free Rear Cushion) shock benefit from more circuit-focused settings, including a lower spring rate (21.5 N/mm >>21.0 N/mm), complemented by firmer compression damping and softer rebound damping. The settings make it easier to weight front wheel, and contribute to lighter handling.
The WSB-developed BFF (Balance Free Front Fork) and BFRC lite (Balance Free Rear Cushion) shock benefit from more circuit-focused settings, including a lower spring rate (21.5 N/mm >>21.0 N/mm), complemented by firmer compression damping and softer rebound damping. The settings make it easier to weight front wheel, and contribute to lighter handling.
With an engine and chassis designed to be the fastest on the track, the Ninja ZX-10R offers a high level of circuit riding potential. To ensure it continues its race-winning ways, Kawasaki engineers made a host of changes that will benefit racers and World Superbike teams alike.
With an engine and chassis designed to be the fastest on the track, the Ninja ZX-10R offers a high level of circuit riding potential. To ensure it continues its race-winning ways, Kawasaki engineers made a host of changes that will benefit racers and World Superbike teams alike.
Technologies for street-riding enjoyment; Features like Electronic Cruise Control, full-colour TFT instrumentation, with smartphone connectivity all add to the experience.
Technologies for street-riding enjoyment; Features like Electronic Cruise Control, full-colour TFT instrumentation, with smartphone connectivity all add to the experience.
Powered by Kawasaki’s proprietary dynamic modelling program and enhanced with input from a Bosch IMU, the Ninja ZX-10R’s cutting-edge electronics contribute to the riding excitement of piloting a high-performance SuperSport machine. New features like integrated Riding Modes, Electronic Cruise Control and TFT instrumentation with smartphone connectivity add to street-riding enjoyment.
Powered by Kawasaki’s proprietary dynamic modelling program and enhanced with input from a Bosch IMU, the Ninja ZX-10R’s cutting-edge electronics contribute to the riding excitement of piloting a high-performance SuperSport machine. New features like integrated Riding Modes, Electronic Cruise Control and TFT instrumentation with smartphone connectivity add to street-riding enjoyment.
KCMF (Kawasaki Cornering Management Function) monitors engine and chassis parameters throughout the corner.
KCMF monitors engine and chassis parameters throughout the corner from entry, through the apex, to corner exit modulating brake force and engine power to facilitate smooth transition from acceleration to braking and back again, and to assist riders in tracing their intended line through the corner. KCMF oversees the following systems (where available): KTRC (including traction, wheelie and sliding control), KIBS (including pitching control), Kawasaki Engine Brake Control
Combined with Kawasaki’s proprietary dynamic modelling program, input from the IMU (Inertial Measurement Unit) enables even more precise chassis orientation awareness, the key to bringing Kawasaki’s electronics to the next level.
IMU means Enhanced Chassis Orientation Awareness. The strength of Kawasaki's cutting-edge electronics has always been the highly sophisticated programming that, using minimal hardware, gives the ECU an accurate real-time picture of what the chassis is doing. Kawasaki's proprietary dynamic modelling program makes skillful use of the magic formula tyre model as it examines changes in multiple parameters, enabling it to take into account changing road and tyre conditions. The addition of an IMU (Inertial Measurement Unit) enables inertia along 6 DOF (degrees of freedom) to be monitored. Acceleration along longitudinal, transverse and vertical axes, plus roll rate and pitch rate are measured. The yaw rate is calculated by the ECU. This additional feedback contributes to an even clearer real-time picture of chassis orientation, enabling even more precise management for control at the limit. With the addition of the IMU and the latest evolution of Kawasaki's advanced modelling software, Kawasaki's electronic engine and chassis management technology takes the step to the next level changing from setting-type and reaction-type systems to feedback-type systems to deliver even greater levels of riding excitement.
S-KTRC (Sport-Kawasaki TRaction Control) is a racing technology-based predictive traction control system designed to help riders push harder on the racetrack by maximising acceleration.
S-KTRC, Kawasaki's original predictive traction control, uses the same base technology as Kawasaki’s works machines. Designed to maximise acceleration, it allows riding at the edge of traction on the track. This technology continually controls the rear wheel slip that occurs when power is applied, ensuring optimal acceleration. In general, maximum forward drive requires a certain amount of slip. To ensure the most effective transfer of power to the tarmac, S-KTRC monitors the slip ratio in real time, and governs engine power delivery to optimise rear wheel traction.
S-KTRC monitors a number of parameters, including front and rear wheel speed (slip), engine rpm, throttle position and acceleration. Conditions are confirmed every 5 milliseconds, at which time the system looks at each of the parameters as well has how much they are changing (i.e. their rate of change). This unique Kawasaki method makes it possible to make interpolations and precisely calibrate engine output to suit traction conditions. By acting before slippage exceeds the limits of traction, drops in power can be minimised, resulting in ultra-smooth operation.
Because the sophisticated software bases its dynamic analysis on the chassis’ orientation relative to the track surface (rather than relative to a horizontal plane), it is able to take into account corner camber, gradient, etc, and adapt accordingly. It also automatically adjusts for tyre wear, different tyre profiles, high-grip tyres, and numerous other factors that setting-type systems treat as fixed parameters. Models equipped with IMU incorporate chassis-orientation feedback to offer even more precise management.
Smartphone connectivity contributes to an enhanced motorcycling experience by enabling riders to connect to their motorcycle wirelessly.
Clever technology enables riders to connect to their motorcycle wirelessly. Using the smartphone application RIDEOLOGY THE APP a number of instrument functions can be accessed, contributing to an enhanced motorcycling experience. Vehicle information (such as the odometer, fuel gauge, maintenance schedule, etc) can be viewed on the smartphone. Riding logs (varies by model, but may include GPS route, gear position, rpm, and other information) can be viewed on the smartphone. When connected, telephone (call, mail) notices are displayed on the instrument panel. Riders can also make changes to their motorcycle instrument display settings (preferred units, clock and date setting, etc) via the smartphone. And on certain models, it is even possible to check and adjust vehicle settings (such as Rider Mode, electronic rider support features, and payload settings) using the smartphone.
Electronic Throttle Valves allow the ECU to deliver the ideal amount of fuel and air to the engine.
Kawasaki's fully electronic throttle actuation system enables the ECU to control the volume of both the fuel (via fuel injectors) and the air (via throttle valves) delivered to the engine. Ideal fuel injection and throttle valve position results in smooth, natural engine response and the ideal engine output. The system also makes a significant contribution to reduced emissions. Electronic throttle valves also enable more precise control of electronic engine management systems like S-KTRC and KTRC, and allow the implementation of electronic systems like KLCM, Kawasaki Engine Brake Control, and Electronic Cruise Control.
KLCM (Kawasaki Launch Control Mode) optimises acceleration from a stop by electronically managing engine output to prevent wheelspin.
Designed to assist riders by optimising acceleration from a stop, KLCM electronically manages engine output to prevent wheelspin when moving off. Riders can choose from three modes, each offering a progressively greater level of intrusion. Each mode allows the rider to leave from a stop with the throttle held wide open. With the clutch lever pulled in and the system activated, engine speed is limited to a determined speed while the rider holds the throttle open. Once the rider releases the clutch lever to engage the clutch, engine speed is allowed to increase, but power is regulated to prevent wheelspin and help keep the front wheel on the ground. (In Mode 1, the least intrusive, the front wheel may lift a little.) The system disengages automatically at 150 km/h or when the rider shifts into 3rd gear.
KIBS (Kawasaki Intelligent anti-lock Brake System) is a high-precision brake system designed specifically for supersport models, offering highly efficient braking while maintaining natural feel.
Kawasaki developed KIBS to take into account the particular handling characteristics of supersport motorcycles, ensuring highly efficient braking with minimal intrusion during hard sport riding. It is the first mass-production brake system to link the ABS ECU (Electronic Control Unit) and engine ECU. In addition front and rear wheel speed, KIBS monitors front brake caliper hydraulic pressure, throttle position, engine speed, clutch actuation and gear position. This diverse information is analysed to determine the ideal front brake hydraulic pressure. Through precise control, the large drops in hydraulic pressure seen on standard ABS systems can be avoided. Additionally, the tendency on supersport models for the rear wheel to lift under heavy braking can be suppressed and rear brake controllability can be maintained when downshifting.
Kawasaki Engine Brake Control allows riders to set engine braking according to preference.
The Kawasaki Engine Brake Control system allows riders to select the amount of engine braking they prefer. When the system is activated, the engine braking effect is reduced, providing less interference when riding on the circuit.
Designed to help riders maximise their acceleration on the circuit by enabling clutchless upshifts with the throttle fully open, KQS detects that the shift lever has been actuated and sends a signal to the ECU to cut ignition so that the next gear can be engaged without having to use the clutch. On models that offer clutchless downshifts, during deceleration the system automatically controls engine speed so that the next lower gear can be selected without operating the clutch.
Horizontal Back-link Rear Suspension arranges its shock unit horizontally, greatly contributing to efficient use of space and mass centralisation.
Compared to Kawasaki's traditional Uni-Trak rear suspension, which mounts the shock unit vertically, with Horizontal Back-link rear suspension, the shock unit is almost horizontal. Kawasaki's original suspension arrangement locates the shock unit very close to the bike's centre of gravity, greatly contributing to mass centralisation. And because there is no linkage or shock unit protruding beneath the swingarm, this frees up space for a larger exhaust pre-chamber (an exhaust expansion chamber situated just upstream of the silencer). With a larger pre-chamber, silencer volume can be reduced, and heavy exhaust components can be concentrated closer to the centre of the bike, further contributing to mass centralisation. The result is greatly improved handling. Another benefit is that the shock unit is placed far away from exhaust heat. Because it is more difficult for heat from the exhaust system to adversely affect suspension oil and gas pressure, suspension performance is more stable. Horizontal Back-link rear suspension offers numerous secondary benefits like this.
Power Mode selection allows engine power delivery to be changed to suit the riding situation.
Models equipped with multiple Power Modes offer riders an easily selectable choice of engine power delivery to suit riding conditions or preference. In addition to Full Power mode, one (Low) or two (Middle, Low) alternate mode(s) in which maximum power is limited and throttle response is milder are provided.
Electronic Cruise Control allows vehicle speed to be fixed. Rider support technology that helps reduce rider fatigue on long trips and contributes to increased touring comfort.
Electronic Cruise Control allows a desired speed (engine rpm) to be maintained with the simple press of a button. Once activated, the rider does not have to constantly apply the throttle. This reduces stress on the right hand when travelling long distances, enabling relaxed cruising and contributing to a high level of riding comfort.
The Economical Riding Indicator is a mark appearing on the instrument panel to indicate favourable fuel consumption, encouraging fuel efficient riding.
Using high-precision electronic control for engine management, Kawasaki models can achieve a high level of fuel efficiency. However, fuel consumption is greatly affected by throttle use, gear selection, and other elements under the rider's control. The Economical Riding Indicator is a function that indicates when current riding conditions are consuming a low amount of fuel. The system continuously monitors fuel consumption, regardless of vehicle speed, engine speed, throttle position and other riding conditions. When fuel consumption is low for a given speed (i.e. fuel efficiency is high), an "ECO" mark appears on the instrument panel's LCD screen. By riding so that the "ECO" mark remains on, fuel consumption can be reduced. While effective vehicle speed and engine speed may vary by model, paying attention to conditions that cause the "ECO" mark to appear can help riders improve their fuel efficiency – a handy way to increase cruising range. Further, keeping fuel consumption low also helps minimise negative impact on the environment.
ABS (Anti-lock Brake System) ensures stable braking performance by preventing wheel lock during braking.
Sudden over-application of the brakes, or braking on low-grip surfaces (surfaces with a low coefficient of friction) such as wet asphalt or manhole covers may cause a motorcycle's wheel(s) to lock up and slip. ABS was developed to prevent such incidents. Kawasaki ABS systems are controlled by high precision and highly reliable programming formulated based on thorough testing of numerous riding situations. By ensuring stable braking performance, they offer rider reassurance that contributes to greater riding enjoyment. And to meet the special requirements of certain riders, specialised ABS systems are also available. For example, KIBS (Kawasaki Intelligent anti-lock Brake System) is a high-precision brake system designed specifically for supersport models, enabling sport riding to be enjoyed by a wider range of riders. And by linking the front and rear brakes, K-ACT (Kawasaki Advanced Coactive-braking Technology) ABS provides the confidence to enjoy touring on heavyweight models. Kawasaki is continually working on the development of other advanced ABS systems.
KCMF (Kawasaki Cornering Management Function) monitors engine and chassis parameters throughout the corner.
KCMF monitors engine and chassis parameters throughout the corner from entry, through the apex, to corner exit modulating brake force and engine power to facilitate smooth transition from acceleration to braking and back again, and to assist riders in tracing their intended line through the corner. KCMF oversees the following systems (where available): KTRC (including traction, wheelie and sliding control), KIBS (including pitching control), Kawasaki Engine Brake Control
Combined with Kawasaki’s proprietary dynamic modelling program, input from the IMU (Inertial Measurement Unit) enables even more precise chassis orientation awareness, the key to bringing Kawasaki’s electronics to the next level.
IMU means Enhanced Chassis Orientation Awareness. The strength of Kawasaki's cutting-edge electronics has always been the highly sophisticated programming that, using minimal hardware, gives the ECU an accurate real-time picture of what the chassis is doing. Kawasaki's proprietary dynamic modelling program makes skillful use of the magic formula tyre model as it examines changes in multiple parameters, enabling it to take into account changing road and tyre conditions. The addition of an IMU (Inertial Measurement Unit) enables inertia along 6 DOF (degrees of freedom) to be monitored. Acceleration along longitudinal, transverse and vertical axes, plus roll rate and pitch rate are measured. The yaw rate is calculated by the ECU. This additional feedback contributes to an even clearer real-time picture of chassis orientation, enabling even more precise management for control at the limit. With the addition of the IMU and the latest evolution of Kawasaki's advanced modelling software, Kawasaki's electronic engine and chassis management technology takes the step to the next level changing from setting-type and reaction-type systems to feedback-type systems to deliver even greater levels of riding excitement.
S-KTRC (Sport-Kawasaki TRaction Control) is a racing technology-based predictive traction control system designed to help riders push harder on the racetrack by maximising acceleration.
S-KTRC, Kawasaki's original predictive traction control, uses the same base technology as Kawasaki’s works machines. Designed to maximise acceleration, it allows riding at the edge of traction on the track. This technology continually controls the rear wheel slip that occurs when power is applied, ensuring optimal acceleration. In general, maximum forward drive requires a certain amount of slip. To ensure the most effective transfer of power to the tarmac, S-KTRC monitors the slip ratio in real time, and governs engine power delivery to optimise rear wheel traction.
S-KTRC monitors a number of parameters, including front and rear wheel speed (slip), engine rpm, throttle position and acceleration. Conditions are confirmed every 5 milliseconds, at which time the system looks at each of the parameters as well has how much they are changing (i.e. their rate of change). This unique Kawasaki method makes it possible to make interpolations and precisely calibrate engine output to suit traction conditions. By acting before slippage exceeds the limits of traction, drops in power can be minimised, resulting in ultra-smooth operation.
Because the sophisticated software bases its dynamic analysis on the chassis’ orientation relative to the track surface (rather than relative to a horizontal plane), it is able to take into account corner camber, gradient, etc, and adapt accordingly. It also automatically adjusts for tyre wear, different tyre profiles, high-grip tyres, and numerous other factors that setting-type systems treat as fixed parameters. Models equipped with IMU incorporate chassis-orientation feedback to offer even more precise management.
Smartphone connectivity contributes to an enhanced motorcycling experience by enabling riders to connect to their motorcycle wirelessly.
Clever technology enables riders to connect to their motorcycle wirelessly. Using the smartphone application RIDEOLOGY THE APP a number of instrument functions can be accessed, contributing to an enhanced motorcycling experience. Vehicle information (such as the odometer, fuel gauge, maintenance schedule, etc) can be viewed on the smartphone. Riding logs (varies by model, but may include GPS route, gear position, rpm, and other information) can be viewed on the smartphone. When connected, telephone (call, mail) notices are displayed on the instrument panel. Riders can also make changes to their motorcycle instrument display settings (preferred units, clock and date setting, etc) via the smartphone. And on certain models, it is even possible to check and adjust vehicle settings (such as Rider Mode, electronic rider support features, and payload settings) using the smartphone.
Electronic Throttle Valves allow the ECU to deliver the ideal amount of fuel and air to the engine.
Kawasaki's fully electronic throttle actuation system enables the ECU to control the volume of both the fuel (via fuel injectors) and the air (via throttle valves) delivered to the engine. Ideal fuel injection and throttle valve position results in smooth, natural engine response and the ideal engine output. The system also makes a significant contribution to reduced emissions. Electronic throttle valves also enable more precise control of electronic engine management systems like S-KTRC and KTRC, and allow the implementation of electronic systems like KLCM, Kawasaki Engine Brake Control, and Electronic Cruise Control.
KLCM (Kawasaki Launch Control Mode) optimises acceleration from a stop by electronically managing engine output to prevent wheelspin.
Designed to assist riders by optimising acceleration from a stop, KLCM electronically manages engine output to prevent wheelspin when moving off. Riders can choose from three modes, each offering a progressively greater level of intrusion. Each mode allows the rider to leave from a stop with the throttle held wide open. With the clutch lever pulled in and the system activated, engine speed is limited to a determined speed while the rider holds the throttle open. Once the rider releases the clutch lever to engage the clutch, engine speed is allowed to increase, but power is regulated to prevent wheelspin and help keep the front wheel on the ground. (In Mode 1, the least intrusive, the front wheel may lift a little.) The system disengages automatically at 150 km/h or when the rider shifts into 3rd gear.
KIBS (Kawasaki Intelligent anti-lock Brake System) is a high-precision brake system designed specifically for supersport models, offering highly efficient braking while maintaining natural feel.
Kawasaki developed KIBS to take into account the particular handling characteristics of supersport motorcycles, ensuring highly efficient braking with minimal intrusion during hard sport riding. It is the first mass-production brake system to link the ABS ECU (Electronic Control Unit) and engine ECU. In addition front and rear wheel speed, KIBS monitors front brake caliper hydraulic pressure, throttle position, engine speed, clutch actuation and gear position. This diverse information is analysed to determine the ideal front brake hydraulic pressure. Through precise control, the large drops in hydraulic pressure seen on standard ABS systems can be avoided. Additionally, the tendency on supersport models for the rear wheel to lift under heavy braking can be suppressed and rear brake controllability can be maintained when downshifting.
Kawasaki Engine Brake Control allows riders to set engine braking according to preference.
The Kawasaki Engine Brake Control system allows riders to select the amount of engine braking they prefer. When the system is activated, the engine braking effect is reduced, providing less interference when riding on the circuit.
Designed to help riders maximise their acceleration on the circuit by enabling clutchless upshifts with the throttle fully open, KQS detects that the shift lever has been actuated and sends a signal to the ECU to cut ignition so that the next gear can be engaged without having to use the clutch. On models that offer clutchless downshifts, during deceleration the system automatically controls engine speed so that the next lower gear can be selected without operating the clutch.
Horizontal Back-link Rear Suspension arranges its shock unit horizontally, greatly contributing to efficient use of space and mass centralisation.
Compared to Kawasaki's traditional Uni-Trak rear suspension, which mounts the shock unit vertically, with Horizontal Back-link rear suspension, the shock unit is almost horizontal. Kawasaki's original suspension arrangement locates the shock unit very close to the bike's centre of gravity, greatly contributing to mass centralisation. And because there is no linkage or shock unit protruding beneath the swingarm, this frees up space for a larger exhaust pre-chamber (an exhaust expansion chamber situated just upstream of the silencer). With a larger pre-chamber, silencer volume can be reduced, and heavy exhaust components can be concentrated closer to the centre of the bike, further contributing to mass centralisation. The result is greatly improved handling. Another benefit is that the shock unit is placed far away from exhaust heat. Because it is more difficult for heat from the exhaust system to adversely affect suspension oil and gas pressure, suspension performance is more stable. Horizontal Back-link rear suspension offers numerous secondary benefits like this.
Power Mode selection allows engine power delivery to be changed to suit the riding situation.
Models equipped with multiple Power Modes offer riders an easily selectable choice of engine power delivery to suit riding conditions or preference. In addition to Full Power mode, one (Low) or two (Middle, Low) alternate mode(s) in which maximum power is limited and throttle response is milder are provided.
Electronic Cruise Control allows vehicle speed to be fixed. Rider support technology that helps reduce rider fatigue on long trips and contributes to increased touring comfort.
Electronic Cruise Control allows a desired speed (engine rpm) to be maintained with the simple press of a button. Once activated, the rider does not have to constantly apply the throttle. This reduces stress on the right hand when travelling long distances, enabling relaxed cruising and contributing to a high level of riding comfort.
The Economical Riding Indicator is a mark appearing on the instrument panel to indicate favourable fuel consumption, encouraging fuel efficient riding.
Using high-precision electronic control for engine management, Kawasaki models can achieve a high level of fuel efficiency. However, fuel consumption is greatly affected by throttle use, gear selection, and other elements under the rider's control. The Economical Riding Indicator is a function that indicates when current riding conditions are consuming a low amount of fuel. The system continuously monitors fuel consumption, regardless of vehicle speed, engine speed, throttle position and other riding conditions. When fuel consumption is low for a given speed (i.e. fuel efficiency is high), an "ECO" mark appears on the instrument panel's LCD screen. By riding so that the "ECO" mark remains on, fuel consumption can be reduced. While effective vehicle speed and engine speed may vary by model, paying attention to conditions that cause the "ECO" mark to appear can help riders improve their fuel efficiency – a handy way to increase cruising range. Further, keeping fuel consumption low also helps minimise negative impact on the environment.
ABS (Anti-lock Brake System) ensures stable braking performance by preventing wheel lock during braking.
Sudden over-application of the brakes, or braking on low-grip surfaces (surfaces with a low coefficient of friction) such as wet asphalt or manhole covers may cause a motorcycle's wheel(s) to lock up and slip. ABS was developed to prevent such incidents. Kawasaki ABS systems are controlled by high precision and highly reliable programming formulated based on thorough testing of numerous riding situations. By ensuring stable braking performance, they offer rider reassurance that contributes to greater riding enjoyment. And to meet the special requirements of certain riders, specialised ABS systems are also available. For example, KIBS (Kawasaki Intelligent anti-lock Brake System) is a high-precision brake system designed specifically for supersport models, enabling sport riding to be enjoyed by a wider range of riders. And by linking the front and rear brakes, K-ACT (Kawasaki Advanced Coactive-braking Technology) ABS provides the confidence to enjoy touring on heavyweight models. Kawasaki is continually working on the development of other advanced ABS systems.
Engine type | Liquid-cooled, 4-stroke, in-line four |
---|---|
Compression ratio | 13.0:1 |
Valve system | DOHC, 16 valves |
Bore x stroke | 76.0 x 55.0 mm |
Displacement | 998 cm³ |
Fuel system | Fuel injection with dual injection: 47 mm x 4 |
Lubrication | Forced lubrication, wet sump |
Starting system | Electric |
Ignition system | Digital |
Maximum power | 147.1 kW {200 PS} / 13,600 rpm |
---|---|
Maximum power with RAM Air | 154,5 kW {210 PS} / 13.600 rpm |
Maximum torque | 111.0 N•m {11.3 kgf•m} / 11,500 rpm |
CO2 emission | 143 g/km |
Fuel consumption | 6.1 l/100km |
Transmission | 6-speed, return shift, cassette |
Clutch | Wet, multi disc |
Primary reduction ratio | 1.681 (79/47) |
Gear ratios 1st | 2.600 (39/15) |
Gear ratios 2nd | 2.158 (41/19) |
Gear ratios 3rd | 1.882 (32/17) |
Gear ratios 4th | 1.650 (33/20) |
Gear ratios 5th | 1.476 (31/21) |
Gear ratios 6th | 1.304 (30/23) |
Final drive | Sealed chain |
Final reduction ratio | 2.412 (41/17) |
Frame type | Twin spar, cast aluminium |
---|---|
Trail | 105 mm |
Wheel travel front | 120 mm |
Wheel travel rear | 115 mm |
Tyre, front | 120/70 ZR17 M/C (58W) |
Tyre, rear | 190/55 ZR17 M/C (75W) |
L x W x H | 2,085 x 750 x 1,185 mm |
Steering angle L/R | 27° / 27° |
Wheel base | 1,450 mm |
Ground clearance | 135 mm |
Fuel capacity | 17.0 litres |
Seat height | 835 mm |
Curb mass | 207 kg |
Front brake type | Dual semi-floating Brembo discs |
---|---|
Front brake diameter | Ø 330 mm |
Front brake caliper type | Brembo radial-mount, M50 monobloc, opposed 4-piston |
Rear brake type | Single disc |
Rear brake diameter | Ø 220 mm |
Rear brake caliper type | Single-piston |
Front suspension type | Inverted Balance Free fork with external compression chamber, compression and rebound damping, spring preload adjustability, and top-out springs |
Front suspension diameter | Ø 43 mm |
Rear suspension type | Horizontal Back-link, BFRC lite gas-charged shock with piggyback reservoir, compression and rebound damping, spring preload adjustability, and top-out spring |
Inpage Navigation Section: Accessories

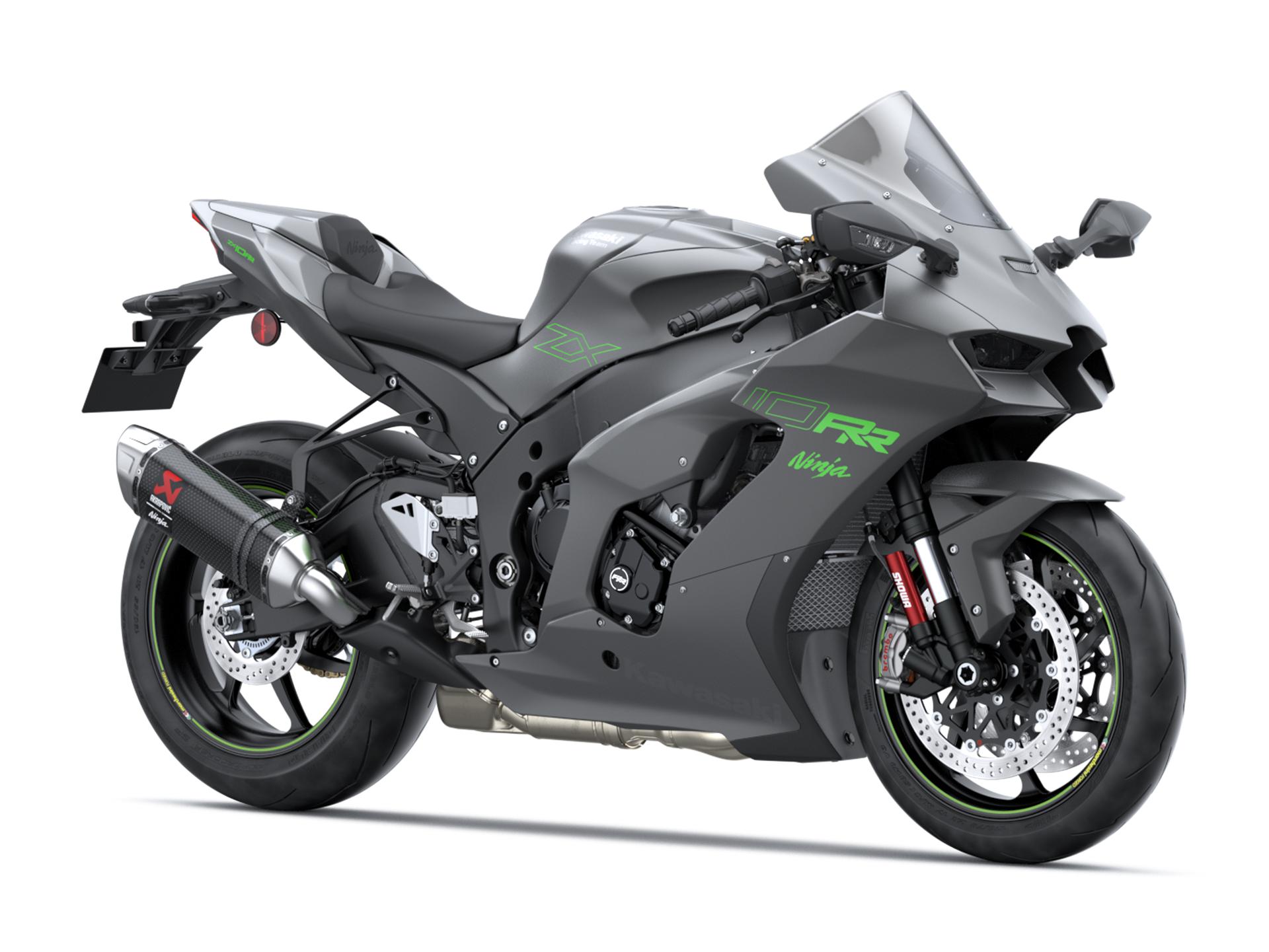

Evolution line complete system with titanium headers and carbon hexagonal muffler. This system provides a significant increase of both power and torque, across the whole RPM band, accompanied by great weight reduction as well.
Includes carbon bracket to replace original aluminium footrest mounting.
Should only be used in combination with fuel injection tuning to prevent engine damage and achieve maximum performance.
(Not for street use)
Bike cover made from breathable heavy-duty non-woven ripstop material. Kawasaki specific with green honeycomb design elements Easy reach lock buckle. 100% Polyester. With multi usable storage bag.
Read MoreHelp keep your hands warm on the road with a grip heater system ergonomically designed to minimize added bulk to the grip.
Tire warmer sets similar to the ones used by the KRT superbike team. Tire warmers with carbon-fibre heating technology. This gives fast heating of tire and rim without local overheating and a constant temperature. The sides of the tire warmer reach far over the rim flange keep the heat inside. This way the pressure of the tyre is stabilized. A high precision thermostat ensures a target temperature of 80-85 °C.
At an ambient temperature of 20 °C, it takes approx. 35 minutes to reach a tyre temperature of 80-85 °C and a rim temperature of approx. 40°C.
The tire warmers are equipped with a red indicator LED to indicate the active heating mode. Sidewalls made of high quality heat-resistant ‘NOMEX for optimum reliability. A central velcro flap and elastics integrated at the side enable easy and fast assembly and disassembly.
Connection is 1.8 m power cable, with Euro plug.
Suitable for front 120-17" and rear 195-200-17" tires.
An essential tool for motorcycle enthusiasts and mechanics alike. Designed to provide stability and convenience, this paddock stand allows easy access to the wheels, suspension, and other components.
This premium rear bike stand can be disassembled, making transportation a lot easier. The compact bike stand comes in a shop worthy carrying case with a built-in carrying handle. The stand is made of premium steel and has a green and black finish. The Kawasaki logo is laser cut in steel.
Optional are the forks to suit your preference;
An essential tool for motorcycle enthusiasts and mechanics alike. Designed to provide stability and convenience, this paddock stand allows easy access to the wheels, suspension, and other components.
This premium rear bike stand can be disassembled, making transportation a lot easier. The compact bike stand comes in a shop worthy carrying case with a built-in carrying handle. The stand is made of premium steel and has a green and black finish. The Kawasaki logo is laser cut in steel.
Optional are the forks to suit your preference;
Strong durable multi layered fabric with taped seams. Heat resistant honeycomb till 120 degrees Celcius. Subtle Branding.
100% Polyester. With multi usable packing backpack.
(XL + top case cover has extra compartment that can be zipped open to make room for top case)
Made from strong Anti-tear Honeycomb ripstop fabric. Heat resistance till 120 degrees Celcius. Subtle branding.
100% Polyester. With multi usable (back)packing string bag.
Fits:
Developed in conjuction wih SP Connect the kit consists of a Clutch Mount, Anti-vibration module and a Universal Phone Clamp. Suits mosts mobile phones; Simply pull out the crown, screw it tight, and then push the crown back in to lock your phone in place. While remaining fully operable, your phone can now be attached to or detached from the mount in seconds.
Whether you want to park your bike in a pitbox or in your garage, let your precious machine rest in style on this Kawasaki Garage Mat. The mat meets new FIM environmental codes and offers a high level of absorption and dust-control features.
An essential tool for motorcycle enthusiasts and mechanics alike. Designed to provide stability and convenience, this paddock stand allows easy access to the wheels, suspension, and other components.
This premium rear bike stand can be disassembled, making transportation a lot easier. The compact bike stand comes in a shop worthy carrying case with a built-in carrying handle. The stand is made of premium steel and has a green and black finish. The Kawasaki logo is laser cut in steel.
Optional are the forks to suit your preference;
