Inpage Navigation Section: Overview
Tough terrain won’t stop us from winning. With championship-proven technology and tuning to take on every challenge, the KX450X has what it takes to win outdoors. Get the off-road edge by riding the bike built to stay ahead of the rest
Colour
Inpage Navigation Section: Gallery
Inpage Navigation Section: Features & Specs
The KX450’s engine has always been a strength, but Kawasaki engineers found a way to make it even stronger. Offering increased performance across the rev-range, the more potent new engine is backed by a host of features like Launch Control Mode, electric start and a hydraulic clutch, proven to give racers an edge on the track.
The KX450’s engine has always been a strength, but Kawasaki engineers found a way to make it even stronger. Offering increased performance across the rev-range, the more potent new engine is backed by a host of features like Launch Control Mode, electric start and a hydraulic clutch, proven to give racers an edge on the track.
Complementing its acclaimed straight-line performance and nimble handling, a redesigned frame with optimized rigidity balance enables improved cornering performance that remains consistent across a wide range of conditions, while more centralized mass also contributes to the improved handling performance. Premium Brembo brake components and ODI Lock-On grips add to both performance and brand recognition.
Complementing its acclaimed straight-line performance and nimble handling, a redesigned frame with optimized rigidity balance enables improved cornering performance that remains consistent across a wide range of conditions, while more centralized mass also contributes to the improved handling performance. Premium Brembo brake components and ODI Lock-On grips add to both performance and brand recognition.
The new KX450 and KX450X are the first KX models to offer Power Mode selection and Kawasaki Traction Control at the push of a button. And with smartphone connectivity, riders can adjust engine maps right from their smartphones* *
The new KX450 and KX450X are the first KX models to offer Power Mode selection and Kawasaki Traction Control at the push of a button. And with smartphone connectivity, riders can adjust engine maps right from their smartphones* *
Already highly acclaimed for their slim ergonomics, the KX450 and KX450X receive redesigned bodywork that offers an even smoother rider interface. Newly designed shrouds, side covers, and rear fender are firmer and eliminate hooking points, further facilitating rider movement.
Already highly acclaimed for their slim ergonomics, the KX450 and KX450X receive redesigned bodywork that offers an even smoother rider interface. Newly designed shrouds, side covers, and rear fender are firmer and eliminate hooking points, further facilitating rider movement.
Factory-style launch control system increases the chance of getting a good start by helping riders maximize traction when starting on a low-traction surface.
Factory-style launch control system increases the chance of getting a good start by helping riders maximize traction when starting on a low-traction surface.
Compared to a conventional clutch, the hydraulic clutch offers more direct feel and lighter lever action. Less play as the clutch heats up during heavy use results in more consistent feeling.
Compared to a conventional clutch, the hydraulic clutch offers more direct feel and lighter lever action. Less play as the clutch heats up during heavy use results in more consistent feeling.
A redesigned frame accommodates the updates to the engine’s intake and exhaust systems, while delivering a high level of both light, nimble handling, and a composed character. Optimized rigidity balance contributes to increased front-end feel that translates to improved cornering performance in a wider range of conditions.
A redesigned frame accommodates the updates to the engine’s intake and exhaust systems, while delivering a high level of both light, nimble handling, and a composed character. Optimized rigidity balance contributes to increased front-end feel that translates to improved cornering performance in a wider range of conditions.
Factory-style Ø 49 mm inverted coil-spring front fork and New Uni-Trak rear suspension offer race-ready suspension performance and adjustability to let riders tune their settings to suit conditions.
Factory-style Ø 49 mm inverted coil-spring front fork and New Uni-Trak rear suspension offer race-ready suspension performance and adjustability to let riders tune their settings to suit conditions.

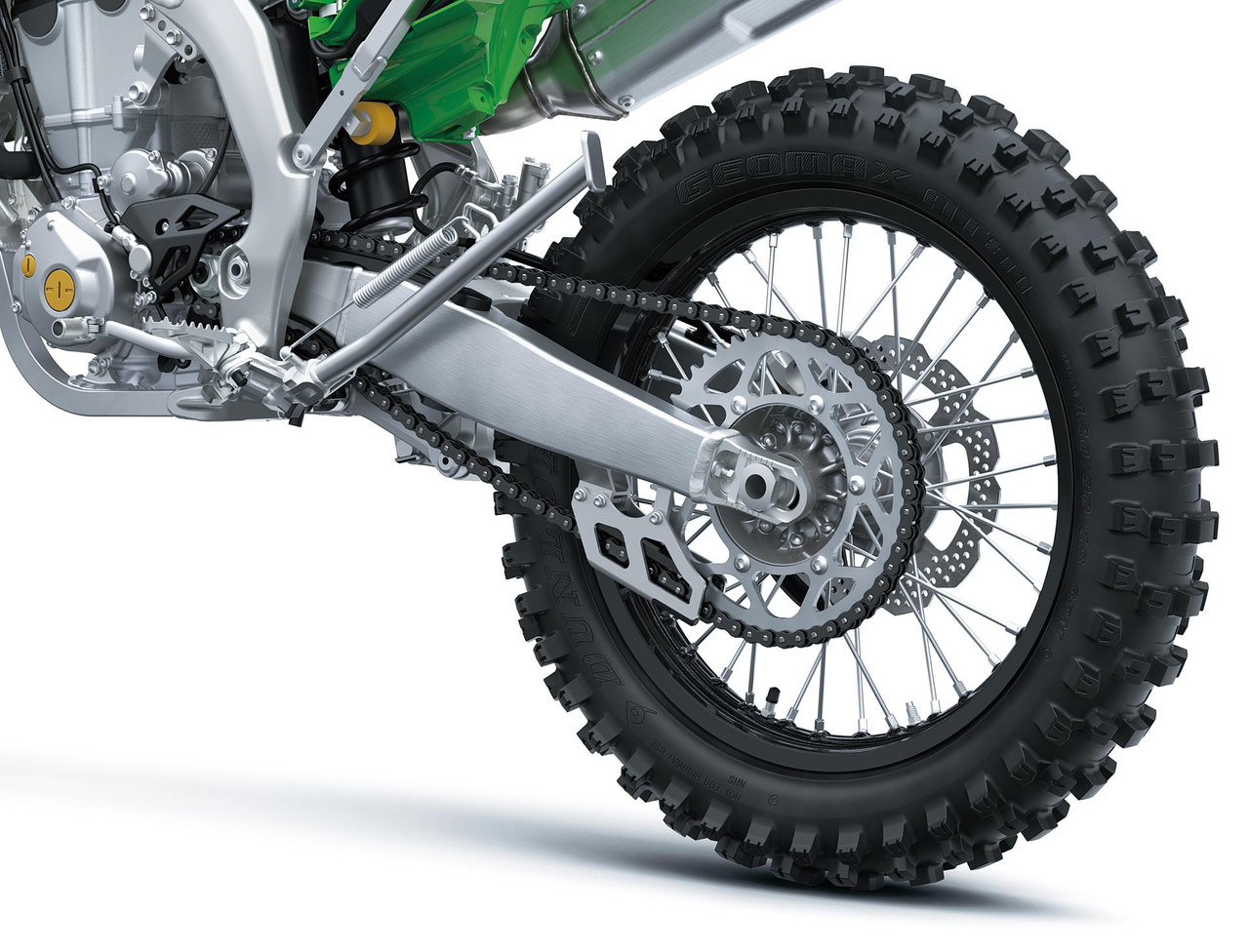

F21”/R18” wheels and enduro-type tyres are well-suited to the situations encountered in cross-country racing.
F21”/R18” wheels and enduro-type tyres are well-suited to the situations encountered in cross-country racing.
Convenient side stand is standard equipment.
Side cover can be removed without tools, facilitating access to the air filter element.
Side cover can be removed without tools, facilitating access to the air filter element.
A choice of four handlebar positions and two footpeg positions allows riders to tailor their riding position to suit body size and preference.
A choice of four handlebar positions and two footpeg positions allows riders to tailor their riding position to suit body size and preference.
Downdraft intake layout and symmetrically aligned intake and exhaust deliver increased power across the rev-range. Redesigned intake offers a much straighter route for air-fuel mix to enter the cylinder, while a centrally positioned exhaust port lines up with the intake for high airflow efficiency, both contributing to increased performance.
Downdraft intake layout and symmetrically aligned intake and exhaust deliver increased power across the rev-range. Redesigned intake offers a much straighter route for air-fuel mix to enter the cylinder, while a centrally positioned exhaust port lines up with the intake for high airflow efficiency, both contributing to increased performance.
Using the Mode (M) button on the left handlebar, riders can quickly and easily switch between two engine maps (Normal, Mild response) provided in the ECU.
Using the Mode (M) button on the left handlebar, riders can quickly and easily switch between two engine maps (Normal, Mild response) provided in the ECU.
Using the Traction (T) button on the left handlebar, riders can quickly and easily select from two levels (Weak, Strong) of traction control to suit conditions and preference. Riders may also elect to turn the system off.
Using the Traction (T) button on the left handlebar, riders can quickly and easily select from two levels (Weak, Strong) of traction control to suit conditions and preference. Riders may also elect to turn the system off.
Being able to restart an engine quickly after a spill can mean the difference between keeping your lead or having to fight your way back through the pack. Electric start makes restarting the engine as easy as pushing a button.
Being able to restart an engine quickly after a spill can mean the difference between keeping your lead or having to fight your way back through the pack. Electric start makes restarting the engine as easy as pushing a button.
Medium-compound ODI Lock-On Grips offer excellent grip feel, while their screw-type fastening system greatly facilitates the task of swapping grips.
Medium-compound ODI Lock-On Grips offer excellent grip feel, while their screw-type fastening system greatly facilitates the task of swapping grips.

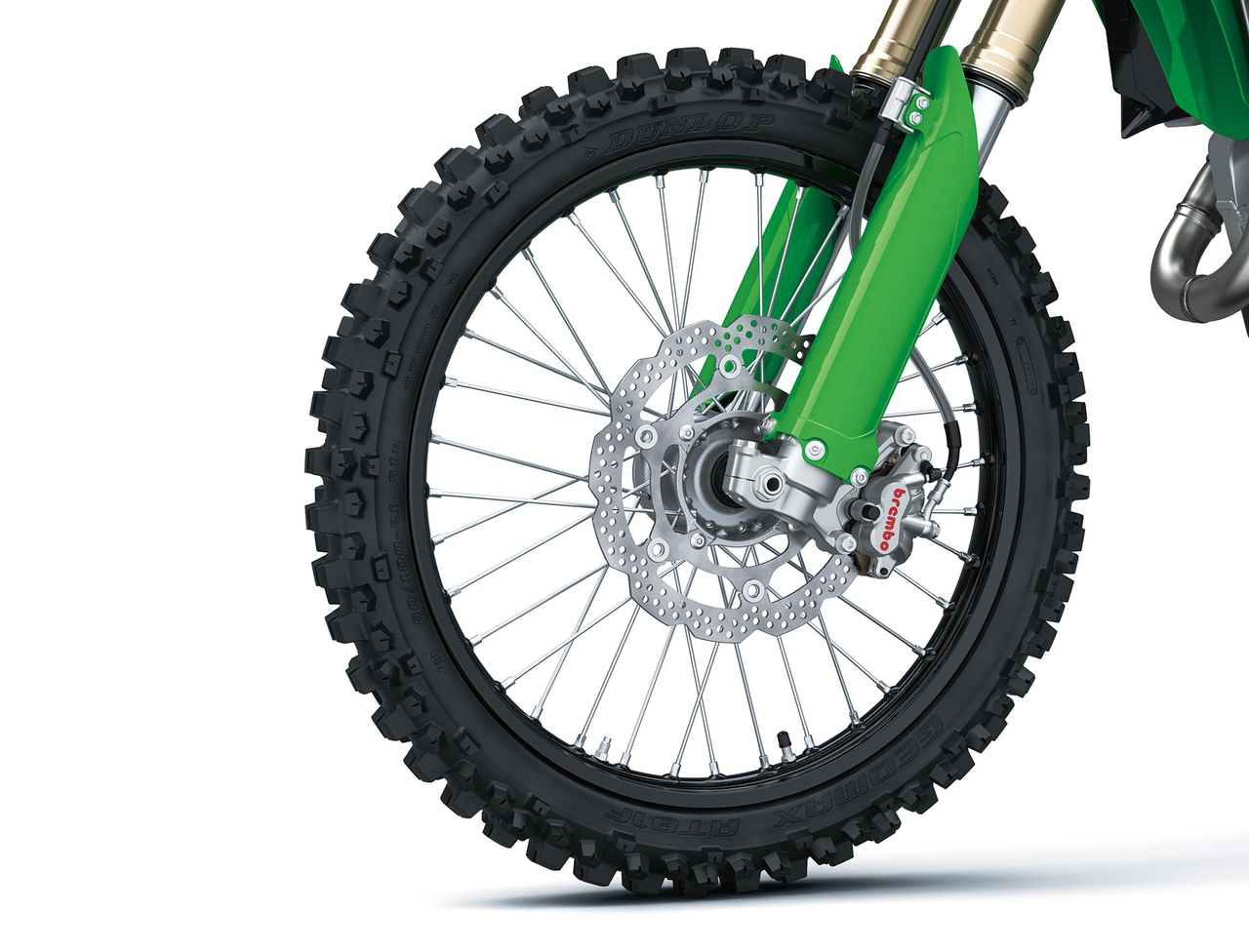

Revised brake components include drilled Braking/Sunstar discs (Ø 270 mm/ Ø 240 mm) paired with a Brembo caliper and master cylinder at the front and a Nissin caliper and master cylinder at the rear. The high-performance system offers increased controllability on the brakes, contributing to enhanced corner entry.
Revised brake components include drilled Braking/Sunstar discs (Ø 270 mm/ Ø 240 mm) paired with a Brembo caliper and master cylinder at the front and a Nissin caliper and master cylinder at the rear. The high-performance system offers increased controllability on the brakes, contributing to enhanced corner entry.
Using the smartphone application “RIDEOLOGY THE APP KX,” riders can access and adjust their bike’s engine maps. Functionality (adjusting fuel and ignition timing) is similar to that offered by the accessory KX FI Calibration Kit used with previous models. Maintenance logs are also available.
Using the smartphone application “RIDEOLOGY THE APP KX,” riders can access and adjust their bike’s engine maps. Functionality (adjusting fuel and ignition timing) is similar to that offered by the accessory KX FI Calibration Kit used with previous models. Maintenance logs are also available.
The KX450’s engine has always been a strength, but Kawasaki engineers found a way to make it even stronger. Offering increased performance across the rev-range, the more potent new engine is backed by a host of features like Launch Control Mode, electric start and a hydraulic clutch, proven to give racers an edge on the track.
The KX450’s engine has always been a strength, but Kawasaki engineers found a way to make it even stronger. Offering increased performance across the rev-range, the more potent new engine is backed by a host of features like Launch Control Mode, electric start and a hydraulic clutch, proven to give racers an edge on the track.
Complementing its acclaimed straight-line performance and nimble handling, a redesigned frame with optimized rigidity balance enables improved cornering performance that remains consistent across a wide range of conditions, while more centralized mass also contributes to the improved handling performance. Premium Brembo brake components and ODI Lock-On grips add to both performance and brand recognition.
Complementing its acclaimed straight-line performance and nimble handling, a redesigned frame with optimized rigidity balance enables improved cornering performance that remains consistent across a wide range of conditions, while more centralized mass also contributes to the improved handling performance. Premium Brembo brake components and ODI Lock-On grips add to both performance and brand recognition.
The new KX450 and KX450X are the first KX models to offer Power Mode selection and Kawasaki Traction Control at the push of a button. And with smartphone connectivity, riders can adjust engine maps right from their smartphones* *
The new KX450 and KX450X are the first KX models to offer Power Mode selection and Kawasaki Traction Control at the push of a button. And with smartphone connectivity, riders can adjust engine maps right from their smartphones* *
Already highly acclaimed for their slim ergonomics, the KX450 and KX450X receive redesigned bodywork that offers an even smoother rider interface. Newly designed shrouds, side covers, and rear fender are firmer and eliminate hooking points, further facilitating rider movement.
Already highly acclaimed for their slim ergonomics, the KX450 and KX450X receive redesigned bodywork that offers an even smoother rider interface. Newly designed shrouds, side covers, and rear fender are firmer and eliminate hooking points, further facilitating rider movement.
Factory-style launch control system increases the chance of getting a good start by helping riders maximize traction when starting on a low-traction surface.
Factory-style launch control system increases the chance of getting a good start by helping riders maximize traction when starting on a low-traction surface.
Compared to a conventional clutch, the hydraulic clutch offers more direct feel and lighter lever action. Less play as the clutch heats up during heavy use results in more consistent feeling.
Compared to a conventional clutch, the hydraulic clutch offers more direct feel and lighter lever action. Less play as the clutch heats up during heavy use results in more consistent feeling.
A redesigned frame accommodates the updates to the engine’s intake and exhaust systems, while delivering a high level of both light, nimble handling, and a composed character. Optimized rigidity balance contributes to increased front-end feel that translates to improved cornering performance in a wider range of conditions.
A redesigned frame accommodates the updates to the engine’s intake and exhaust systems, while delivering a high level of both light, nimble handling, and a composed character. Optimized rigidity balance contributes to increased front-end feel that translates to improved cornering performance in a wider range of conditions.
Factory-style Ø 49 mm inverted coil-spring front fork and New Uni-Trak rear suspension offer race-ready suspension performance and adjustability to let riders tune their settings to suit conditions.
Factory-style Ø 49 mm inverted coil-spring front fork and New Uni-Trak rear suspension offer race-ready suspension performance and adjustability to let riders tune their settings to suit conditions.
F21”/R18” wheels and enduro-type tyres are well-suited to the situations encountered in cross-country racing.
F21”/R18” wheels and enduro-type tyres are well-suited to the situations encountered in cross-country racing.
Convenient side stand is standard equipment.
Side cover can be removed without tools, facilitating access to the air filter element.
Side cover can be removed without tools, facilitating access to the air filter element.
A choice of four handlebar positions and two footpeg positions allows riders to tailor their riding position to suit body size and preference.
A choice of four handlebar positions and two footpeg positions allows riders to tailor their riding position to suit body size and preference.
Downdraft intake layout and symmetrically aligned intake and exhaust deliver increased power across the rev-range. Redesigned intake offers a much straighter route for air-fuel mix to enter the cylinder, while a centrally positioned exhaust port lines up with the intake for high airflow efficiency, both contributing to increased performance.
Downdraft intake layout and symmetrically aligned intake and exhaust deliver increased power across the rev-range. Redesigned intake offers a much straighter route for air-fuel mix to enter the cylinder, while a centrally positioned exhaust port lines up with the intake for high airflow efficiency, both contributing to increased performance.
Using the Mode (M) button on the left handlebar, riders can quickly and easily switch between two engine maps (Normal, Mild response) provided in the ECU.
Using the Mode (M) button on the left handlebar, riders can quickly and easily switch between two engine maps (Normal, Mild response) provided in the ECU.
Using the Traction (T) button on the left handlebar, riders can quickly and easily select from two levels (Weak, Strong) of traction control to suit conditions and preference. Riders may also elect to turn the system off.
Using the Traction (T) button on the left handlebar, riders can quickly and easily select from two levels (Weak, Strong) of traction control to suit conditions and preference. Riders may also elect to turn the system off.
Being able to restart an engine quickly after a spill can mean the difference between keeping your lead or having to fight your way back through the pack. Electric start makes restarting the engine as easy as pushing a button.
Being able to restart an engine quickly after a spill can mean the difference between keeping your lead or having to fight your way back through the pack. Electric start makes restarting the engine as easy as pushing a button.
Medium-compound ODI Lock-On Grips offer excellent grip feel, while their screw-type fastening system greatly facilitates the task of swapping grips.
Medium-compound ODI Lock-On Grips offer excellent grip feel, while their screw-type fastening system greatly facilitates the task of swapping grips.
Revised brake components include drilled Braking/Sunstar discs (Ø 270 mm/ Ø 240 mm) paired with a Brembo caliper and master cylinder at the front and a Nissin caliper and master cylinder at the rear. The high-performance system offers increased controllability on the brakes, contributing to enhanced corner entry.
Revised brake components include drilled Braking/Sunstar discs (Ø 270 mm/ Ø 240 mm) paired with a Brembo caliper and master cylinder at the front and a Nissin caliper and master cylinder at the rear. The high-performance system offers increased controllability on the brakes, contributing to enhanced corner entry.
Using the smartphone application “RIDEOLOGY THE APP KX,” riders can access and adjust their bike’s engine maps. Functionality (adjusting fuel and ignition timing) is similar to that offered by the accessory KX FI Calibration Kit used with previous models. Maintenance logs are also available.
Using the smartphone application “RIDEOLOGY THE APP KX,” riders can access and adjust their bike’s engine maps. Functionality (adjusting fuel and ignition timing) is similar to that offered by the accessory KX FI Calibration Kit used with previous models. Maintenance logs are also available.
Launch Control Mode is a motocross-use start mode that helps riders get the holeshot by minimising wheel spin off the start.
In motocross racing, getting a good start is critical. A few tenths of a second can make the difference between getting the holeshot or not. In slippery conditions, getting the maximum drive from a motocrosser requires precise control of the both the clutch and throttle. Launch Control Mode helps riders get a good start by complementing high-level technique with engine management. Featured on a mass-production motocrosser for the first time on Kawasaki's KX450F, the system activates a separate engine map designed to get a more efficient start off the line. The system is designed to the same specifications as that used by our factory racers competing in the AMA Supercross and Motocross championships. Launch Control Mode is activated simply by pressing the button on the handlebar. The Launch Control map slightly retards ignition timing to help tame the engine's strong torque and reduce wheel spin off the start. Launch Control Mode is only active in the first two gears off the start, disengaging and returning to the standard engine map automatically once the rider shifts into 3rd gear. The system gives riders a great advantage when lining up at the gate and puts them in a better position to win.
Smartphone connectivity contributes to an enhanced motorcycling experience by enabling riders to connect to their motorcycle wirelessly.
Clever technology enables riders to connect to their motorcycle wirelessly. Using the smartphone application RIDEOLOGY THE APP a number of instrument functions can be accessed, contributing to an enhanced motorcycling experience. Vehicle information (such as the odometer, fuel gauge, maintenance schedule, etc) can be viewed on the smartphone. Riding logs (varies by model, but may include GPS route, gear position, rpm, and other information) can be viewed on the smartphone. When connected, telephone (call, mail) notices are displayed on the instrument panel. Riders can also make changes to their motorcycle instrument display settings (preferred units, clock and date setting, etc) via the smartphone. And on certain models, it is even possible to check and adjust vehicle settings (such as Rider Mode, electronic rider support features, and payload settings) using the smartphone.
ERGO-FIT is an interface system that allows a wide range of riders to feel at one with their machine.
Proper fit is key for rider comfort and control. However, the ideal fit varies from rider to rider, depending on their physical dimensions and riding style. ERGO-FIT is an interface system designed to allow riders to find their ideal riding position. Various points of the chassis interface (the handlebar, footpegs and seat, etc) can be adjusted through a combination of interchangeable parts and parts with adjustable positions. This enables a wide range of riders to find a riding position that offers both comfort and control. Feeling at one with their machine, they will be able to experience how Kawasaki machines are fun and rewarding to ride. *Adjustable parts and their range of adjustability vary by model.
2-Mode KTRC (Kawasaki TRaction Control), easily selectable from switches at the left handle.
Using the Traction (T) button on the left handlebar, riders can quickly and easily select from two levels (Weak, Strong) of traction control to suit conditions and preference. Riders may also elect to turn the system off.
Using the Traction (T) button on the left handlebar, riders can quickly and easily select from two levels (Weak, Strong) of traction control to suit conditions and preference. Riders may also elect to turn the system off.
Launch Control Mode is a motocross-use start mode that helps riders get the holeshot by minimising wheel spin off the start.
In motocross racing, getting a good start is critical. A few tenths of a second can make the difference between getting the holeshot or not. In slippery conditions, getting the maximum drive from a motocrosser requires precise control of the both the clutch and throttle. Launch Control Mode helps riders get a good start by complementing high-level technique with engine management. Featured on a mass-production motocrosser for the first time on Kawasaki's KX450F, the system activates a separate engine map designed to get a more efficient start off the line. The system is designed to the same specifications as that used by our factory racers competing in the AMA Supercross and Motocross championships. Launch Control Mode is activated simply by pressing the button on the handlebar. The Launch Control map slightly retards ignition timing to help tame the engine's strong torque and reduce wheel spin off the start. Launch Control Mode is only active in the first two gears off the start, disengaging and returning to the standard engine map automatically once the rider shifts into 3rd gear. The system gives riders a great advantage when lining up at the gate and puts them in a better position to win.
Smartphone connectivity contributes to an enhanced motorcycling experience by enabling riders to connect to their motorcycle wirelessly.
Clever technology enables riders to connect to their motorcycle wirelessly. Using the smartphone application RIDEOLOGY THE APP a number of instrument functions can be accessed, contributing to an enhanced motorcycling experience. Vehicle information (such as the odometer, fuel gauge, maintenance schedule, etc) can be viewed on the smartphone. Riding logs (varies by model, but may include GPS route, gear position, rpm, and other information) can be viewed on the smartphone. When connected, telephone (call, mail) notices are displayed on the instrument panel. Riders can also make changes to their motorcycle instrument display settings (preferred units, clock and date setting, etc) via the smartphone. And on certain models, it is even possible to check and adjust vehicle settings (such as Rider Mode, electronic rider support features, and payload settings) using the smartphone.
ERGO-FIT is an interface system that allows a wide range of riders to feel at one with their machine.
Proper fit is key for rider comfort and control. However, the ideal fit varies from rider to rider, depending on their physical dimensions and riding style. ERGO-FIT is an interface system designed to allow riders to find their ideal riding position. Various points of the chassis interface (the handlebar, footpegs and seat, etc) can be adjusted through a combination of interchangeable parts and parts with adjustable positions. This enables a wide range of riders to find a riding position that offers both comfort and control. Feeling at one with their machine, they will be able to experience how Kawasaki machines are fun and rewarding to ride. *Adjustable parts and their range of adjustability vary by model.
2-Mode KTRC (Kawasaki TRaction Control), easily selectable from switches at the left handle.
Using the Traction (T) button on the left handlebar, riders can quickly and easily select from two levels (Weak, Strong) of traction control to suit conditions and preference. Riders may also elect to turn the system off.
Using the Traction (T) button on the left handlebar, riders can quickly and easily select from two levels (Weak, Strong) of traction control to suit conditions and preference. Riders may also elect to turn the system off.
Engine type | Liquid-cooled, 4-stroke, single-cylinder |
---|---|
Compression ratio | 12.5:1 |
Valve system | DOHC, 4 valves |
Bore x stroke | 96.0 x 62.1 mm |
Displacement | 449 cm³ |
Fuel system | Fuel injection: 44 mm x 1 |
Lubrication | Forced lubrication, semi‑dry sump |
Starting system | Electric |
Ignition system | Digital |
Transmission | 5-speed, return shift |
---|---|
Clutch | Wet, multi disc |
Primary reduction ratio | 2.727 (60/22) |
Gear ratios 1st | 1.750 (28/16) |
Gear ratios 2nd | 1.412 (24/17) |
Gear ratios 3rd | 1.188 (19/16) |
Gear ratios 4th | 1.000 (19/19) |
Gear ratios 5th | 0.875 (21/24) |
Final drive | Sealed chain |
Final reduction ratio | 3.846 (50/13) |
Frame type | Perimeter, aluminium |
---|---|
Trail | 119 mm |
Wheel travel front | 305 mm |
Wheel travel rear | 307 mm |
Tyre, front | AT 24 x 8-12 |
Tyre, rear | 140/80-18M/C 70R |
L x W x H | 2,180 x 815 x 1,260 mm |
Steering angle L R | 42° / 42° |
Wheel base | 1,480 mm |
Ground clearance | 335 mm |
Fuel capacity | 6.2 litres |
Seat height | 955 mm |
Curb mass | 113.8 kg |
Front brake type | Single semi-floating petal disc |
---|---|
Front brake diameter | Ø 270 mm |
Front brake caliper type | Brembo dual-piston |
Rear brake type | Single petal disc |
Rear brake diameter | Ø 240 mm |
Rear brake caliper type | Single-piston |
Front suspension type | Inverted fork with adjustable compression and rebound damping |
Front suspension diameter | Ø 49 mm |
Rear suspension type | Uni-Trak, adjustable dual-range (high/low-speed) compression and adjustable rebound damping, and spring preload adjustability |
