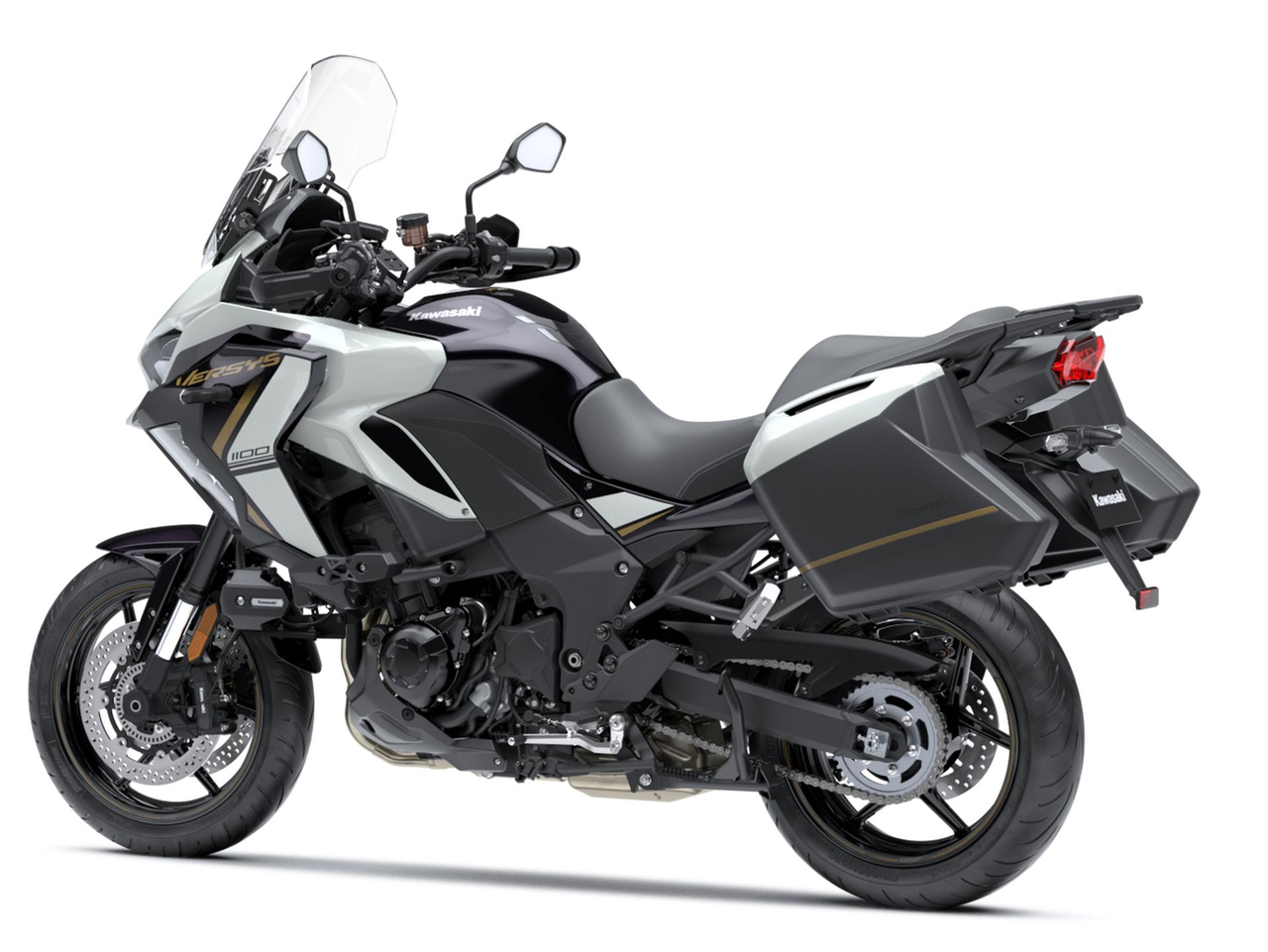

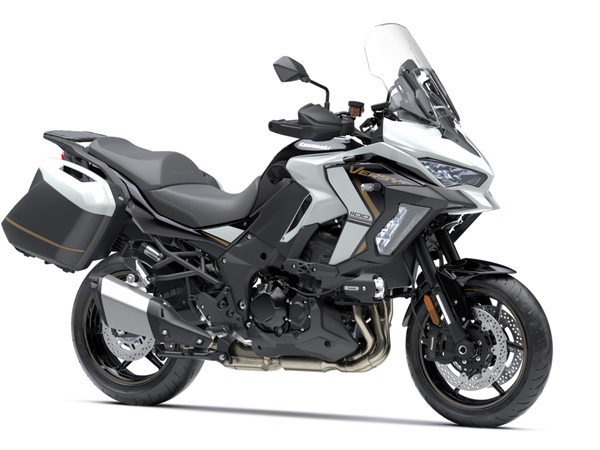

Go the distance with your ultimate travel companion. The new Versys 1100 brings long-range comfort, any-road versatility, and increased in-line 4-cylinder power to every ride—whether touring the countryside or crossing the city. Solo or with a passenger, prepare to extend your horizons with flexible luggage solutions plus advanced rider aids. Climb aboard the Versys 1100 and set your horizons to Destination Everywhere.
Colours
Show all
Show less
Edition Accessories
Show all
Show less
Edition Accessories
Show all
Show less
Edition Accessories
Show all
Show less
Edition Accessories
Inpage Navigation Section: Gallery
Inpage Navigation Section: Features & Specs
The Versys 1100 features a host of rider support technology to add to rider confidence in a wide range of riding situations while helping riders enjoy their machine’s sport riding performance to the fullest.
The Versys 1100 features a host of rider support technology to add to rider confidence in a wide range of riding situations while helping riders enjoy their machine’s sport riding performance to the fullest.
In addition to existing features like the ability to record Ride Logs and share them with friends, the new “RIDEOLOGY THE APP MOTORCYCLE” smartphone app now offers the ability for riders to control the app by voice commands*, which in turn allows them adjust motorcycle settings and more orally.
In addition to existing features like the ability to record Ride Logs and share them with friends, the new “RIDEOLOGY THE APP MOTORCYCLE” smartphone app now offers the ability for riders to control the app by voice commands*, which in turn allows them adjust motorcycle settings and more orally.
Grip heaters keep riders’ hands warm in cold weather, while hand covers offer increased wind protection, further contributing to comfort.
Grip heaters keep riders’ hands warm in cold weather, while hand covers offer increased wind protection, further contributing to comfort.
Lights built into the shrouds help illuminate the road when cornering. Each of the three lights has a fixed direction and is activated based on lean angle.
Lights built into the shrouds help illuminate the road when cornering. Each of the three lights has a fixed direction and is activated based on lean angle.
Both the Versys 1100’s engine and chassis were designed to maximize rider enjoyment on the street. Whether in town, exploring backroads or heading for the horizon, its In-Line Four engine delivers a rewarding surge of acceleration with every twist of the throttle – even more so with its increased displacement. The increase in engine performance is paired with excellent chassis balance and long-travel suspension settings enabling superb control and feedback, and offering a high level of rider confidence in numerous street riding situations.
Both the Versys 1100’s engine and chassis were designed to maximize rider enjoyment on the street. Whether in town, exploring backroads or heading for the horizon, its In-Line Four engine delivers a rewarding surge of acceleration with every twist of the throttle – even more so with its increased displacement. The increase in engine performance is paired with excellent chassis balance and long-travel suspension settings enabling superb control and feedback, and offering a high level of rider confidence in numerous street riding situations.
Not only is the Versys 1100 exciting to ride, but it also offers the comfort and carrying capacity to allow riders to ride long and far. A highly comfortable seat and good wind protection complement the relaxed riding position, making it easier to spend a long time in the saddle. Passenger comfort is also superb, making it easy to share the fun. Long-travel suspension capably handles a wide range of road conditions, adding to rider confidence, while on the SE model, electronic suspension with Skyhook Technology further contributes to ride comfort for both rider and passenger. A high payload can accommodate panniers and a top case simultaneously, and numerous accessories add to comfort and convenience – especially welcome on multi-day trips.
Not only is the Versys 1100 exciting to ride, but it also offers the comfort and carrying capacity to allow riders to ride long and far. A highly comfortable seat and good wind protection complement the relaxed riding position, making it easier to spend a long time in the saddle. Passenger comfort is also superb, making it easy to share the fun. Long-travel suspension capably handles a wide range of road conditions, adding to rider confidence, while on the SE model, electronic suspension with Skyhook Technology further contributes to ride comfort for both rider and passenger. A high payload can accommodate panniers and a top case simultaneously, and numerous accessories add to comfort and convenience – especially welcome on multi-day trips.
The Versys 1100’s emotional design beckons the rider invitingly. The flowing styling features a clear line of colour traceable from the front of the bike to the rear. A balanced use of colour and materials emphasizes the functional beauty of the bike’s individual parts and the sculpted bodywork shaped with rider comfort in mind.
The Versys 1100’s emotional design beckons the rider invitingly. The flowing styling features a clear line of colour traceable from the front of the bike to the rear. A balanced use of colour and materials emphasizes the functional beauty of the bike’s individual parts and the sculpted bodywork shaped with rider comfort in mind.
Complementing the wind protection offered by the Versys 1100’s front cowl and wide shrouds, a stepless adjustable windscreen can be tailored to rider preference, contributing to comfortable highway cruising. Windscreen height can be easily adjusted from the rider’s seat.
Complementing the wind protection offered by the Versys 1100’s front cowl and wide shrouds, a stepless adjustable windscreen can be tailored to rider preference, contributing to comfortable highway cruising. Windscreen height can be easily adjusted from the rider’s seat.
Instrumentation with an advanced, high-tech design gives the cockpit a very high-class appearance. The analogue-style tachometer is complemented by a high-grade full colour TFT LCD screen.
Instrumentation with an advanced, high-tech design gives the cockpit a very high-class appearance. The analogue-style tachometer is complemented by a high-grade full colour TFT LCD screen.
A USB Type-C socket mounted on the left handlebar offers riders a convenient power source.
A USB Type-C socket mounted on the left handlebar offers riders a convenient power source.
Complementing its 21-litre fuel-tank, advanced ECU programming contributes to the Versys 1100’s high fuel efficiency.
Complementing its 21-litre fuel-tank, advanced ECU programming contributes to the Versys 1100’s high fuel efficiency.
From the twin headlamps and compact LED turn signals to the LED taillight and LED license plate lamp, the Versys 1100 offers an all-LED lighting package.
From the twin headlamps and compact LED turn signals to the LED taillight and LED license plate lamp, the Versys 1100 offers an all-LED lighting package.
Both rider and passenger seats offer thick urethane cushioning to provide the comfort to enable long hours in the saddle.
Both rider and passenger seats offer thick urethane cushioning to provide the comfort to enable long hours in the saddle.
The mounting system for the accessory panniers allows them to be attached and removed very simply for increased convenience. The clean-mount system’s clutter-free design ensures the rear of the bike looks good with the panniers removed.
The mounting system for the accessory panniers allows them to be attached and removed very simply for increased convenience. The clean-mount system’s clutter-free design ensures the rear of the bike looks good with the panniers removed.
Complementing the Versys 1100’s exhilarating engine character, KQS enables clutchless upshifts and downshifts for seamless acceleration and quick and easy deceleration. The improved KQS feature operates in a wider range of rpm, with the minimum changing from 2,500 min-1 to 1,500 min-1, giving riders smooth shifts even when in town or doing slower-speed riding for added riding comfort.
Complementing the Versys 1100’s exhilarating engine character, KQS enables clutchless upshifts and downshifts for seamless acceleration and quick and easy deceleration. The improved KQS feature operates in a wider range of rpm, with the minimum changing from 2,500 min-1 to 1,500 min-1, giving riders smooth shifts even when in town or doing slower-speed riding for added riding comfort.
The long-travel suspension’s ability to cope with less than-perfect street conditions allows the Versys 1100 to remain composed on many kinds of roads. Lightweight 17” wheels front and rear contribute to quick, sporty handling.
The long-travel suspension’s ability to cope with less than-perfect street conditions allows the Versys 1100 to remain composed on many kinds of roads. Lightweight 17” wheels front and rear contribute to quick, sporty handling.
Spacious, upright riding position offers a high level of machine control in various conditions while contributing to rider comfort.
Spacious, upright riding position offers a high level of machine control in various conditions while contributing to rider comfort.
The Versys 1100’s bodywork has flowing lines that lend a sporty look while offering both rider and passenger excellent wind protection, contributing to long-distance ride comfort.
The Versys 1100’s bodywork has flowing lines that lend a sporty look while offering both rider and passenger excellent wind protection, contributing to long-distance ride comfort.
An increase in displacement from 1,043 cm3 to 1,099 cm3 gives the Versys 1100’s engine a boost in power from 120 PS to 135 PS. The more robust mid-range and increased high-rpm power contribute to increased comfort when cruising on the highway, facilitating long-distance touring. The climb from low through high rpm is even more exhilarating, while superb throttle response, strong torque at all rpm, and a seductive intake howl further contribute to riding excitement.
An increase in displacement from 1,043 cm3 to 1,099 cm3 gives the Versys 1100’s engine a boost in power from 120 PS to 135 PS. The more robust mid-range and increased high-rpm power contribute to increased comfort when cruising on the highway, facilitating long-distance touring. The climb from low through high rpm is even more exhilarating, while superb throttle response, strong torque at all rpm, and a seductive intake howl further contribute to riding excitement.
The electronic cruise control system allows a desired speed to be maintained with the simple press of a button. It reduces stress on the right hand when traveling long distances, enabling relaxed cruising and contributing to a high level of riding comfort.
The electronic cruise control system allows a desired speed to be maintained with the simple press of a button. It reduces stress on the right hand when traveling long distances, enabling relaxed cruising and contributing to a high level of riding comfort.
The Versys 1100 features a host of rider support technology to add to rider confidence in a wide range of riding situations while helping riders enjoy their machine’s sport riding performance to the fullest.
The Versys 1100 features a host of rider support technology to add to rider confidence in a wide range of riding situations while helping riders enjoy their machine’s sport riding performance to the fullest.
In addition to existing features like the ability to record Ride Logs and share them with friends, the new “RIDEOLOGY THE APP MOTORCYCLE” smartphone app now offers the ability for riders to control the app by voice commands*, which in turn allows them adjust motorcycle settings and more orally.
In addition to existing features like the ability to record Ride Logs and share them with friends, the new “RIDEOLOGY THE APP MOTORCYCLE” smartphone app now offers the ability for riders to control the app by voice commands*, which in turn allows them adjust motorcycle settings and more orally.
Grip heaters keep riders’ hands warm in cold weather, while hand covers offer increased wind protection, further contributing to comfort.
Grip heaters keep riders’ hands warm in cold weather, while hand covers offer increased wind protection, further contributing to comfort.
Lights built into the shrouds help illuminate the road when cornering. Each of the three lights has a fixed direction and is activated based on lean angle.
Lights built into the shrouds help illuminate the road when cornering. Each of the three lights has a fixed direction and is activated based on lean angle.
Both the Versys 1100’s engine and chassis were designed to maximize rider enjoyment on the street. Whether in town, exploring backroads or heading for the horizon, its In-Line Four engine delivers a rewarding surge of acceleration with every twist of the throttle – even more so with its increased displacement. The increase in engine performance is paired with excellent chassis balance and long-travel suspension settings enabling superb control and feedback, and offering a high level of rider confidence in numerous street riding situations.
Both the Versys 1100’s engine and chassis were designed to maximize rider enjoyment on the street. Whether in town, exploring backroads or heading for the horizon, its In-Line Four engine delivers a rewarding surge of acceleration with every twist of the throttle – even more so with its increased displacement. The increase in engine performance is paired with excellent chassis balance and long-travel suspension settings enabling superb control and feedback, and offering a high level of rider confidence in numerous street riding situations.
Not only is the Versys 1100 exciting to ride, but it also offers the comfort and carrying capacity to allow riders to ride long and far. A highly comfortable seat and good wind protection complement the relaxed riding position, making it easier to spend a long time in the saddle. Passenger comfort is also superb, making it easy to share the fun. Long-travel suspension capably handles a wide range of road conditions, adding to rider confidence, while on the SE model, electronic suspension with Skyhook Technology further contributes to ride comfort for both rider and passenger. A high payload can accommodate panniers and a top case simultaneously, and numerous accessories add to comfort and convenience – especially welcome on multi-day trips.
Not only is the Versys 1100 exciting to ride, but it also offers the comfort and carrying capacity to allow riders to ride long and far. A highly comfortable seat and good wind protection complement the relaxed riding position, making it easier to spend a long time in the saddle. Passenger comfort is also superb, making it easy to share the fun. Long-travel suspension capably handles a wide range of road conditions, adding to rider confidence, while on the SE model, electronic suspension with Skyhook Technology further contributes to ride comfort for both rider and passenger. A high payload can accommodate panniers and a top case simultaneously, and numerous accessories add to comfort and convenience – especially welcome on multi-day trips.
The Versys 1100’s emotional design beckons the rider invitingly. The flowing styling features a clear line of colour traceable from the front of the bike to the rear. A balanced use of colour and materials emphasizes the functional beauty of the bike’s individual parts and the sculpted bodywork shaped with rider comfort in mind.
The Versys 1100’s emotional design beckons the rider invitingly. The flowing styling features a clear line of colour traceable from the front of the bike to the rear. A balanced use of colour and materials emphasizes the functional beauty of the bike’s individual parts and the sculpted bodywork shaped with rider comfort in mind.
Complementing the wind protection offered by the Versys 1100’s front cowl and wide shrouds, a stepless adjustable windscreen can be tailored to rider preference, contributing to comfortable highway cruising. Windscreen height can be easily adjusted from the rider’s seat.
Complementing the wind protection offered by the Versys 1100’s front cowl and wide shrouds, a stepless adjustable windscreen can be tailored to rider preference, contributing to comfortable highway cruising. Windscreen height can be easily adjusted from the rider’s seat.
Instrumentation with an advanced, high-tech design gives the cockpit a very high-class appearance. The analogue-style tachometer is complemented by a high-grade full colour TFT LCD screen.
Instrumentation with an advanced, high-tech design gives the cockpit a very high-class appearance. The analogue-style tachometer is complemented by a high-grade full colour TFT LCD screen.
A USB Type-C socket mounted on the left handlebar offers riders a convenient power source.
A USB Type-C socket mounted on the left handlebar offers riders a convenient power source.
Complementing its 21-litre fuel-tank, advanced ECU programming contributes to the Versys 1100’s high fuel efficiency.
Complementing its 21-litre fuel-tank, advanced ECU programming contributes to the Versys 1100’s high fuel efficiency.
From the twin headlamps and compact LED turn signals to the LED taillight and LED license plate lamp, the Versys 1100 offers an all-LED lighting package.
From the twin headlamps and compact LED turn signals to the LED taillight and LED license plate lamp, the Versys 1100 offers an all-LED lighting package.
Both rider and passenger seats offer thick urethane cushioning to provide the comfort to enable long hours in the saddle.
Both rider and passenger seats offer thick urethane cushioning to provide the comfort to enable long hours in the saddle.
The mounting system for the accessory panniers allows them to be attached and removed very simply for increased convenience. The clean-mount system’s clutter-free design ensures the rear of the bike looks good with the panniers removed.
The mounting system for the accessory panniers allows them to be attached and removed very simply for increased convenience. The clean-mount system’s clutter-free design ensures the rear of the bike looks good with the panniers removed.
Complementing the Versys 1100’s exhilarating engine character, KQS enables clutchless upshifts and downshifts for seamless acceleration and quick and easy deceleration. The improved KQS feature operates in a wider range of rpm, with the minimum changing from 2,500 min-1 to 1,500 min-1, giving riders smooth shifts even when in town or doing slower-speed riding for added riding comfort.
Complementing the Versys 1100’s exhilarating engine character, KQS enables clutchless upshifts and downshifts for seamless acceleration and quick and easy deceleration. The improved KQS feature operates in a wider range of rpm, with the minimum changing from 2,500 min-1 to 1,500 min-1, giving riders smooth shifts even when in town or doing slower-speed riding for added riding comfort.
The long-travel suspension’s ability to cope with less than-perfect street conditions allows the Versys 1100 to remain composed on many kinds of roads. Lightweight 17” wheels front and rear contribute to quick, sporty handling.
The long-travel suspension’s ability to cope with less than-perfect street conditions allows the Versys 1100 to remain composed on many kinds of roads. Lightweight 17” wheels front and rear contribute to quick, sporty handling.
Spacious, upright riding position offers a high level of machine control in various conditions while contributing to rider comfort.
Spacious, upright riding position offers a high level of machine control in various conditions while contributing to rider comfort.
The Versys 1100’s bodywork has flowing lines that lend a sporty look while offering both rider and passenger excellent wind protection, contributing to long-distance ride comfort.
The Versys 1100’s bodywork has flowing lines that lend a sporty look while offering both rider and passenger excellent wind protection, contributing to long-distance ride comfort.
An increase in displacement from 1,043 cm3 to 1,099 cm3 gives the Versys 1100’s engine a boost in power from 120 PS to 135 PS. The more robust mid-range and increased high-rpm power contribute to increased comfort when cruising on the highway, facilitating long-distance touring. The climb from low through high rpm is even more exhilarating, while superb throttle response, strong torque at all rpm, and a seductive intake howl further contribute to riding excitement.
An increase in displacement from 1,043 cm3 to 1,099 cm3 gives the Versys 1100’s engine a boost in power from 120 PS to 135 PS. The more robust mid-range and increased high-rpm power contribute to increased comfort when cruising on the highway, facilitating long-distance touring. The climb from low through high rpm is even more exhilarating, while superb throttle response, strong torque at all rpm, and a seductive intake howl further contribute to riding excitement.
The electronic cruise control system allows a desired speed to be maintained with the simple press of a button. It reduces stress on the right hand when traveling long distances, enabling relaxed cruising and contributing to a high level of riding comfort.
The electronic cruise control system allows a desired speed to be maintained with the simple press of a button. It reduces stress on the right hand when traveling long distances, enabling relaxed cruising and contributing to a high level of riding comfort.
Smartphone connectivity contributes to an enhanced motorcycling experience by enabling riders to connect to their motorcycle wirelessly.
Clever technology enables riders to connect to their motorcycle wirelessly. Using the smartphone application RIDEOLOGY THE APP a number of instrument functions can be accessed, contributing to an enhanced motorcycling experience. Vehicle information (such as the odometer, fuel gauge, maintenance schedule, etc) can be viewed on the smartphone. Riding logs (varies by model, but may include GPS route, gear position, rpm, and other information) can be viewed on the smartphone. When connected, telephone (call, mail) notices are displayed on the instrument panel. Riders can also make changes to their motorcycle instrument display settings (preferred units, clock and date setting, etc) via the smartphone. And on certain models, it is even possible to check and adjust vehicle settings (such as Rider Mode, electronic rider support features, and payload settings) using the smartphone.
Cornering lights provide supplemental illumination when cornering, creating a wider illuminated path in the direction the bike is heading.
Sets of three LED lights built into each side of the fairing help illuminate the road when cornering at night. Each of the three lights has a fixed direction and is activated based on lean angle. As the bike leans over, the lightscome on in order, creating a wider illuminated path in the direction the bike is heading.
KCMF (Kawasaki Cornering Management Function) monitors engine and chassis parameters throughout the corner.
KCMF monitors engine and chassis parameters throughout the corner from entry, through the apex, to corner exit modulating brake force and engine power to facilitate smooth transition from acceleration to braking and back again, and to assist riders in tracing their intended line through the corner. KCMF oversees the following systems (where available): KTRC (including traction, wheelie and sliding control), KIBS (including pitching control), Kawasaki Engine Brake Control
Combined with Kawasaki’s proprietary dynamic modelling program, input from the IMU (Inertial Measurement Unit) enables even more precise chassis orientation awareness, the key to bringing Kawasaki’s electronics to the next level.
IMU means Enhanced Chassis Orientation Awareness. The strength of Kawasaki's cutting-edge electronics has always been the highly sophisticated programming that, using minimal hardware, gives the ECU an accurate real-time picture of what the chassis is doing. Kawasaki's proprietary dynamic modelling program makes skillful use of the magic formula tyre model as it examines changes in multiple parameters, enabling it to take into account changing road and tyre conditions. The addition of an IMU (Inertial Measurement Unit) enables inertia along 6 DOF (degrees of freedom) to be monitored. Acceleration along longitudinal, transverse and vertical axes, plus roll rate and pitch rate are measured. The yaw rate is calculated by the ECU. This additional feedback contributes to an even clearer real-time picture of chassis orientation, enabling even more precise management for control at the limit. With the addition of the IMU and the latest evolution of Kawasaki's advanced modelling software, Kawasaki's electronic engine and chassis management technology takes the step to the next level changing from setting-type and reaction-type systems to feedback-type systems to deliver even greater levels of riding excitement.
3-Mode KTRC (Kawasaki TRaction Control), Kawasaki's most advanced traction control system, offers a selection of modes to suit a variety of riding situations, from sport riding to touring.
3-mode KTRC combines the traction control technology of both 1-mode KTRC, which provides enhanced stability in slippery situations by preventing wheel slip, and S-KTRC, which helps maintain optimum traction in sport riding situations by predicting the rear wheel slip ratio during acceleration, into a single system. The convenient handle switch allows the type of traction control to be changed instantly by selecting one of the three modes, even while riding. Modes 1 and 2 maintain optimum traction during cornering, like S-KTRC. Designed with sport riding in mind, they enable sharp acceleration out of corners by maximizing forward drive from the rear wheel. Modes 1 and 2 differ in the amount that they intervene. Mode 1, set for dry, good-grip road conditions, maintains the ideal slip ratio to ensure optimum traction. Mode 3 operates like 1-mode KTRC, reducing power to allow grip to be regained when rear wheel spin is detected. It is ideal when riding in slippery conditions or in the wet. Enabling riders to easily change traction control character, 3-mode KTRC is Kawasaki's most advanced engine management system.
Designed to help riders maximise their acceleration on the circuit by enabling clutchless upshifts with the throttle fully open, KQS detects that the shift lever has been actuated and sends a signal to the ECU to cut ignition so that the next gear can be engaged without having to use the clutch. On models that offer clutchless downshifts, during deceleration the system automatically controls engine speed so that the next lower gear can be selected without operating the clutch.
Electronic Cruise Control allows vehicle speed to be fixed. Rider support technology that helps reduce rider fatigue on long trips and contributes to increased touring comfort.
Electronic Cruise Control allows a desired speed (engine rpm) to be maintained with the simple press of a button. Once activated, the rider does not have to constantly apply the throttle. This reduces stress on the right hand when travelling long distances, enabling relaxed cruising and contributing to a high level of riding comfort.
KIBS (Kawasaki Intelligent anti-lock Brake System) is a high-precision brake system designed specifically for supersport models, offering highly efficient braking while maintaining natural feel.
Kawasaki developed KIBS to take into account the particular handling characteristics of supersport motorcycles, ensuring highly efficient braking with minimal intrusion during hard sport riding. It is the first mass-production brake system to link the ABS ECU (Electronic Control Unit) and engine ECU. In addition front and rear wheel speed, KIBS monitors front brake caliper hydraulic pressure, throttle position, engine speed, clutch actuation and gear position. This diverse information is analysed to determine the ideal front brake hydraulic pressure. Through precise control, the large drops in hydraulic pressure seen on standard ABS systems can be avoided. Additionally, the tendency on supersport models for the rear wheel to lift under heavy braking can be suppressed and rear brake controllability can be maintained when downshifting.
Horizontal Back-link Rear Suspension arranges its shock unit horizontally, greatly contributing to efficient use of space and mass centralisation.
Compared to Kawasaki's traditional Uni-Trak rear suspension, which mounts the shock unit vertically, with Horizontal Back-link rear suspension, the shock unit is almost horizontal. Kawasaki's original suspension arrangement locates the shock unit very close to the bike's centre of gravity, greatly contributing to mass centralisation. And because there is no linkage or shock unit protruding beneath the swingarm, this frees up space for a larger exhaust pre-chamber (an exhaust expansion chamber situated just upstream of the silencer). With a larger pre-chamber, silencer volume can be reduced, and heavy exhaust components can be concentrated closer to the centre of the bike, further contributing to mass centralisation. The result is greatly improved handling. Another benefit is that the shock unit is placed far away from exhaust heat. Because it is more difficult for heat from the exhaust system to adversely affect suspension oil and gas pressure, suspension performance is more stable. Horizontal Back-link rear suspension offers numerous secondary benefits like this.
Power Mode selection allows engine power delivery to be changed to suit the riding situation.
Models equipped with multiple Power Modes offer riders an easily selectable choice of engine power delivery to suit riding conditions or preference. In addition to Full Power mode, one (Low) or two (Middle, Low) alternate mode(s) in which maximum power is limited and throttle response is milder are provided.
Electronic Throttle Valves allow the ECU to deliver the ideal amount of fuel and air to the engine.
Kawasaki's fully electronic throttle actuation system enables the ECU to control the volume of both the fuel (via fuel injectors) and the air (via throttle valves) delivered to the engine. Ideal fuel injection and throttle valve position results in smooth, natural engine response and the ideal engine output. The system also makes a significant contribution to reduced emissions. Electronic throttle valves also enable more precise control of electronic engine management systems like S-KTRC and KTRC, and allow the implementation of electronic systems like KLCM, Kawasaki Engine Brake Control, and Electronic Cruise Control.
Based on racing technology, the Assist & Slipper Clutch acts as both a back-torque limiter and a self-servo mechanism that enables a lighter clutch lever pull.
Based on feedback from racing activities, the Assist & Slipper Clutch uses two types of cams (an assist cam and a slipper cam) to either drive the clutch hub and operating plate together or apart. Under normal operation, the assist cam functions as a self-servo mechanism, pulling the clutch hub and operating plate together to compress the clutch plates. This allows the total clutch spring load to be reduced, resulting in a lighter clutch lever feel when operating the clutch. When excessive engine braking occurs as a result of quick downshifts (or an accidental downshift) the slipper cam comes into play, forcing the clutch hub and operating plate apart. This relieves pressure on the clutch plates to reduce back-torque and helps prevent the rear tyre from hopping and skidding. This race-style function is particularly useful when sport or track riding.
ERGO-FIT is an interface system that allows a wide range of riders to feel at one with their machine.
Proper fit is key for rider comfort and control. However, the ideal fit varies from rider to rider, depending on their physical dimensions and riding style. ERGO-FIT is an interface system designed to allow riders to find their ideal riding position. Various points of the chassis interface (the handlebar, footpegs and seat, etc) can be adjusted through a combination of interchangeable parts and parts with adjustable positions. This enables a wide range of riders to find a riding position that offers both comfort and control. Feeling at one with their machine, they will be able to experience how Kawasaki machines are fun and rewarding to ride. *Adjustable parts and their range of adjustability vary by model.
The Economical Riding Indicator is a mark appearing on the instrument panel to indicate favourable fuel consumption, encouraging fuel efficient riding.
Using high-precision electronic control for engine management, Kawasaki models can achieve a high level of fuel efficiency. However, fuel consumption is greatly affected by throttle use, gear selection, and other elements under the rider's control. The Economical Riding Indicator is a function that indicates when current riding conditions are consuming a low amount of fuel. The system continuously monitors fuel consumption, regardless of vehicle speed, engine speed, throttle position and other riding conditions. When fuel consumption is low for a given speed (i.e. fuel efficiency is high), an "ECO" mark appears on the instrument panel's LCD screen. By riding so that the "ECO" mark remains on, fuel consumption can be reduced. While effective vehicle speed and engine speed may vary by model, paying attention to conditions that cause the "ECO" mark to appear can help riders improve their fuel efficiency – a handy way to increase cruising range. Further, keeping fuel consumption low also helps minimise negative impact on the environment.
ABS (Anti-lock Brake System) ensures stable braking performance by preventing wheel lock during braking.
Sudden over-application of the brakes, or braking on low-grip surfaces (surfaces with a low coefficient of friction) such as wet asphalt or manhole covers may cause a motorcycle's wheel(s) to lock up and slip. ABS was developed to prevent such incidents. Kawasaki ABS systems are controlled by high precision and highly reliable programming formulated based on thorough testing of numerous riding situations. By ensuring stable braking performance, they offer rider reassurance that contributes to greater riding enjoyment. And to meet the special requirements of certain riders, specialised ABS systems are also available. For example, KIBS (Kawasaki Intelligent anti-lock Brake System) is a high-precision brake system designed specifically for supersport models, enabling sport riding to be enjoyed by a wider range of riders. And by linking the front and rear brakes, K-ACT (Kawasaki Advanced Coactive-braking Technology) ABS provides the confidence to enjoy touring on heavyweight models. Kawasaki is continually working on the development of other advanced ABS systems.
Smartphone connectivity contributes to an enhanced motorcycling experience by enabling riders to connect to their motorcycle wirelessly.
Clever technology enables riders to connect to their motorcycle wirelessly. Using the smartphone application RIDEOLOGY THE APP a number of instrument functions can be accessed, contributing to an enhanced motorcycling experience. Vehicle information (such as the odometer, fuel gauge, maintenance schedule, etc) can be viewed on the smartphone. Riding logs (varies by model, but may include GPS route, gear position, rpm, and other information) can be viewed on the smartphone. When connected, telephone (call, mail) notices are displayed on the instrument panel. Riders can also make changes to their motorcycle instrument display settings (preferred units, clock and date setting, etc) via the smartphone. And on certain models, it is even possible to check and adjust vehicle settings (such as Rider Mode, electronic rider support features, and payload settings) using the smartphone.
Cornering lights provide supplemental illumination when cornering, creating a wider illuminated path in the direction the bike is heading.
Sets of three LED lights built into each side of the fairing help illuminate the road when cornering at night. Each of the three lights has a fixed direction and is activated based on lean angle. As the bike leans over, the lightscome on in order, creating a wider illuminated path in the direction the bike is heading.
KCMF (Kawasaki Cornering Management Function) monitors engine and chassis parameters throughout the corner.
KCMF monitors engine and chassis parameters throughout the corner from entry, through the apex, to corner exit modulating brake force and engine power to facilitate smooth transition from acceleration to braking and back again, and to assist riders in tracing their intended line through the corner. KCMF oversees the following systems (where available): KTRC (including traction, wheelie and sliding control), KIBS (including pitching control), Kawasaki Engine Brake Control
Combined with Kawasaki’s proprietary dynamic modelling program, input from the IMU (Inertial Measurement Unit) enables even more precise chassis orientation awareness, the key to bringing Kawasaki’s electronics to the next level.
IMU means Enhanced Chassis Orientation Awareness. The strength of Kawasaki's cutting-edge electronics has always been the highly sophisticated programming that, using minimal hardware, gives the ECU an accurate real-time picture of what the chassis is doing. Kawasaki's proprietary dynamic modelling program makes skillful use of the magic formula tyre model as it examines changes in multiple parameters, enabling it to take into account changing road and tyre conditions. The addition of an IMU (Inertial Measurement Unit) enables inertia along 6 DOF (degrees of freedom) to be monitored. Acceleration along longitudinal, transverse and vertical axes, plus roll rate and pitch rate are measured. The yaw rate is calculated by the ECU. This additional feedback contributes to an even clearer real-time picture of chassis orientation, enabling even more precise management for control at the limit. With the addition of the IMU and the latest evolution of Kawasaki's advanced modelling software, Kawasaki's electronic engine and chassis management technology takes the step to the next level changing from setting-type and reaction-type systems to feedback-type systems to deliver even greater levels of riding excitement.
3-Mode KTRC (Kawasaki TRaction Control), Kawasaki's most advanced traction control system, offers a selection of modes to suit a variety of riding situations, from sport riding to touring.
3-mode KTRC combines the traction control technology of both 1-mode KTRC, which provides enhanced stability in slippery situations by preventing wheel slip, and S-KTRC, which helps maintain optimum traction in sport riding situations by predicting the rear wheel slip ratio during acceleration, into a single system. The convenient handle switch allows the type of traction control to be changed instantly by selecting one of the three modes, even while riding. Modes 1 and 2 maintain optimum traction during cornering, like S-KTRC. Designed with sport riding in mind, they enable sharp acceleration out of corners by maximizing forward drive from the rear wheel. Modes 1 and 2 differ in the amount that they intervene. Mode 1, set for dry, good-grip road conditions, maintains the ideal slip ratio to ensure optimum traction. Mode 3 operates like 1-mode KTRC, reducing power to allow grip to be regained when rear wheel spin is detected. It is ideal when riding in slippery conditions or in the wet. Enabling riders to easily change traction control character, 3-mode KTRC is Kawasaki's most advanced engine management system.
Designed to help riders maximise their acceleration on the circuit by enabling clutchless upshifts with the throttle fully open, KQS detects that the shift lever has been actuated and sends a signal to the ECU to cut ignition so that the next gear can be engaged without having to use the clutch. On models that offer clutchless downshifts, during deceleration the system automatically controls engine speed so that the next lower gear can be selected without operating the clutch.
Electronic Cruise Control allows vehicle speed to be fixed. Rider support technology that helps reduce rider fatigue on long trips and contributes to increased touring comfort.
Electronic Cruise Control allows a desired speed (engine rpm) to be maintained with the simple press of a button. Once activated, the rider does not have to constantly apply the throttle. This reduces stress on the right hand when travelling long distances, enabling relaxed cruising and contributing to a high level of riding comfort.
KIBS (Kawasaki Intelligent anti-lock Brake System) is a high-precision brake system designed specifically for supersport models, offering highly efficient braking while maintaining natural feel.
Kawasaki developed KIBS to take into account the particular handling characteristics of supersport motorcycles, ensuring highly efficient braking with minimal intrusion during hard sport riding. It is the first mass-production brake system to link the ABS ECU (Electronic Control Unit) and engine ECU. In addition front and rear wheel speed, KIBS monitors front brake caliper hydraulic pressure, throttle position, engine speed, clutch actuation and gear position. This diverse information is analysed to determine the ideal front brake hydraulic pressure. Through precise control, the large drops in hydraulic pressure seen on standard ABS systems can be avoided. Additionally, the tendency on supersport models for the rear wheel to lift under heavy braking can be suppressed and rear brake controllability can be maintained when downshifting.
Horizontal Back-link Rear Suspension arranges its shock unit horizontally, greatly contributing to efficient use of space and mass centralisation.
Compared to Kawasaki's traditional Uni-Trak rear suspension, which mounts the shock unit vertically, with Horizontal Back-link rear suspension, the shock unit is almost horizontal. Kawasaki's original suspension arrangement locates the shock unit very close to the bike's centre of gravity, greatly contributing to mass centralisation. And because there is no linkage or shock unit protruding beneath the swingarm, this frees up space for a larger exhaust pre-chamber (an exhaust expansion chamber situated just upstream of the silencer). With a larger pre-chamber, silencer volume can be reduced, and heavy exhaust components can be concentrated closer to the centre of the bike, further contributing to mass centralisation. The result is greatly improved handling. Another benefit is that the shock unit is placed far away from exhaust heat. Because it is more difficult for heat from the exhaust system to adversely affect suspension oil and gas pressure, suspension performance is more stable. Horizontal Back-link rear suspension offers numerous secondary benefits like this.
Power Mode selection allows engine power delivery to be changed to suit the riding situation.
Models equipped with multiple Power Modes offer riders an easily selectable choice of engine power delivery to suit riding conditions or preference. In addition to Full Power mode, one (Low) or two (Middle, Low) alternate mode(s) in which maximum power is limited and throttle response is milder are provided.
Electronic Throttle Valves allow the ECU to deliver the ideal amount of fuel and air to the engine.
Kawasaki's fully electronic throttle actuation system enables the ECU to control the volume of both the fuel (via fuel injectors) and the air (via throttle valves) delivered to the engine. Ideal fuel injection and throttle valve position results in smooth, natural engine response and the ideal engine output. The system also makes a significant contribution to reduced emissions. Electronic throttle valves also enable more precise control of electronic engine management systems like S-KTRC and KTRC, and allow the implementation of electronic systems like KLCM, Kawasaki Engine Brake Control, and Electronic Cruise Control.
Based on racing technology, the Assist & Slipper Clutch acts as both a back-torque limiter and a self-servo mechanism that enables a lighter clutch lever pull.
Based on feedback from racing activities, the Assist & Slipper Clutch uses two types of cams (an assist cam and a slipper cam) to either drive the clutch hub and operating plate together or apart. Under normal operation, the assist cam functions as a self-servo mechanism, pulling the clutch hub and operating plate together to compress the clutch plates. This allows the total clutch spring load to be reduced, resulting in a lighter clutch lever feel when operating the clutch. When excessive engine braking occurs as a result of quick downshifts (or an accidental downshift) the slipper cam comes into play, forcing the clutch hub and operating plate apart. This relieves pressure on the clutch plates to reduce back-torque and helps prevent the rear tyre from hopping and skidding. This race-style function is particularly useful when sport or track riding.
ERGO-FIT is an interface system that allows a wide range of riders to feel at one with their machine.
Proper fit is key for rider comfort and control. However, the ideal fit varies from rider to rider, depending on their physical dimensions and riding style. ERGO-FIT is an interface system designed to allow riders to find their ideal riding position. Various points of the chassis interface (the handlebar, footpegs and seat, etc) can be adjusted through a combination of interchangeable parts and parts with adjustable positions. This enables a wide range of riders to find a riding position that offers both comfort and control. Feeling at one with their machine, they will be able to experience how Kawasaki machines are fun and rewarding to ride. *Adjustable parts and their range of adjustability vary by model.
The Economical Riding Indicator is a mark appearing on the instrument panel to indicate favourable fuel consumption, encouraging fuel efficient riding.
Using high-precision electronic control for engine management, Kawasaki models can achieve a high level of fuel efficiency. However, fuel consumption is greatly affected by throttle use, gear selection, and other elements under the rider's control. The Economical Riding Indicator is a function that indicates when current riding conditions are consuming a low amount of fuel. The system continuously monitors fuel consumption, regardless of vehicle speed, engine speed, throttle position and other riding conditions. When fuel consumption is low for a given speed (i.e. fuel efficiency is high), an "ECO" mark appears on the instrument panel's LCD screen. By riding so that the "ECO" mark remains on, fuel consumption can be reduced. While effective vehicle speed and engine speed may vary by model, paying attention to conditions that cause the "ECO" mark to appear can help riders improve their fuel efficiency – a handy way to increase cruising range. Further, keeping fuel consumption low also helps minimise negative impact on the environment.
ABS (Anti-lock Brake System) ensures stable braking performance by preventing wheel lock during braking.
Sudden over-application of the brakes, or braking on low-grip surfaces (surfaces with a low coefficient of friction) such as wet asphalt or manhole covers may cause a motorcycle's wheel(s) to lock up and slip. ABS was developed to prevent such incidents. Kawasaki ABS systems are controlled by high precision and highly reliable programming formulated based on thorough testing of numerous riding situations. By ensuring stable braking performance, they offer rider reassurance that contributes to greater riding enjoyment. And to meet the special requirements of certain riders, specialised ABS systems are also available. For example, KIBS (Kawasaki Intelligent anti-lock Brake System) is a high-precision brake system designed specifically for supersport models, enabling sport riding to be enjoyed by a wider range of riders. And by linking the front and rear brakes, K-ACT (Kawasaki Advanced Coactive-braking Technology) ABS provides the confidence to enjoy touring on heavyweight models. Kawasaki is continually working on the development of other advanced ABS systems.
Engine type | Liquid-cooled, 4-stroke, in-line four |
---|---|
Compression ratio | 11.8:1 |
Valve system | DOHC, 16 valves |
Bore x stroke | 77.0 x 59.0 mm |
Displacement | 1,099 cm³ |
Fuel system | Fuel injection: 38 mm x 4 |
Lubrication | Forced lubrication, wet sump |
Starting system | Electric |
Ignition system | Digital |
Maximum power | 99.0 kW {135 PS} / 9,000 rpm |
---|---|
Maximum torque | 112.0 N•m {11.4 kgf•m} / 7,600 rpm |
CO2 emission | 128 g/km |
Fuel consumption | 5.6 l/100km |
CO2 emission 85 kW kit | 128.0 g/km |
Fuel consumption 85 kW kit | 5.6 l/100km |
Transmission | 6-speed, return shift |
Clutch | Wet, multi disc |
Primary reduction ratio | 1.528 (81/53) |
Gear ratios 1st | 2.600 (39/15) |
Gear ratios 2nd | 1.950 (39/20) |
Gear ratios 3rd | 1.600 (24/15) |
Gear ratios 4th | 1.389 (25/18) |
Gear ratios 5th | 1.217 (28/23) |
Gear ratios 6th | 1.069 (31/29) |
Final drive | Sealed chain |
Final reduction ratio | 2.800 (42/15) |
Frame type | Twin-tube aluminium |
---|---|
Trail | 106 mm |
Wheel travel front | 150 mm |
Wheel travel rear | 152 mm |
Tyre, front | 120/70 ZR17 M/C (58W) |
Tyre, rear | 180/55 ZR17 M/C (73W) |
L x W x H | 2,270 x 950 x 1,490 mm (1,530 mm high position screen) |
Steering angle L/R | 34° / 34° |
Wheel base | 1,520 mm |
Ground clearance | 150 mm |
Fuel capacity | 21.0 litres |
Seat height | 840 mm |
Curb mass | 257 kg |
Front brake type | Dual semi-floating discs |
---|---|
Front brake diameter | Ø 310 mm |
Front brake caliper type | Radial-mount, monobloc, opposed 4-piston |
Rear brake type | Single disc |
Rear brake diameter | Ø 260 mm |
Rear brake caliper type | Single-piston |
Front suspension type | Inverted fork with adjustable rebound damping, and spring preload adjustability |
Front suspension diameter | Ø 43 mm |
Rear suspension type | Horizontal Back-link, gas-charged shock, rebound damping, and remote spring preload adjustability |
Inpage Navigation Section: Accessories
Rigid, water-resistant bag with compartments makes it easy to pack your cargo and drop into the locking Top Case. Once you have arrived at your destination, just grab your packed Inner Bag so you can leave the Top Case on your motorcycle and get going.
Help protect your engine cases from tip over damage. Two individual protectors feature hi-strength adhesive backing for easy installation on the clutch and alternator.
Keep your personal items in 47 liters of lockable, waterproof storage; enough room for two full-face helmets. Requires Base Plate and model specific accessories.
