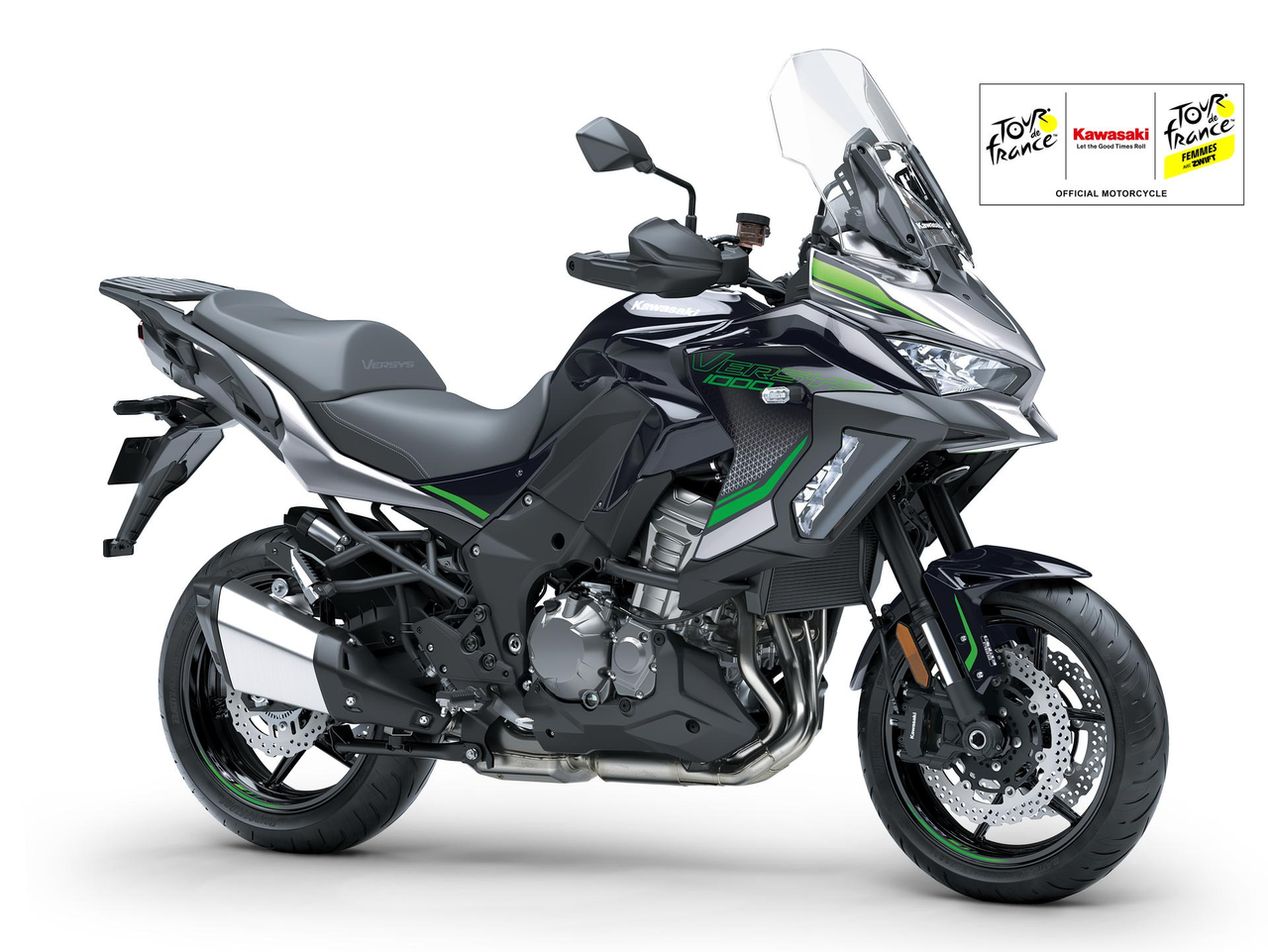

Pick up and Go defines your lifestyle while discovering distant destinations is your ultimate goal. Discover a bike that lives up to your desires. The new special edition Versys 1000 S comes equipped with premium features, like LED lighting, a quick shifter and cruise control making your ride easy and safe. When Adventure Calls, get ready to be amazed. Versys. ANY ROAD. ANY TIME.
Colours
Show all
Show less
Edition Accessories
Show all
Show less
Edition Accessories
Show all
Show less
Edition Accessories
Show all
Show less
Inpage Navigation Section: Gallery
Inpage Navigation Section: Features & Specs
Because real world riding occurs on streets that are often less than circuit smooth – road imperfections (bumps, potholes) are far from rare, and some streets are not even paved (cobblestone, etc) – Kawasaki engineers chose long-travel suspension to enable riders to carve corners with aplomb. While not designed for off-road use, the long-travel suspension’s ability to cope with less-than-perfect street conditions allows the Versys 1000 to remain composed where bikes with stiffer, sportier set-ups would require backing off the throttle. Lightweight 17” wheels front and rear contribute to quick, sporty handling.
Because real world riding occurs on streets that are often less than circuit smooth – road imperfections (bumps, potholes) are far from rare, and some streets are not even paved (cobblestone, etc) – Kawasaki engineers chose long-travel suspension to enable riders to carve corners with aplomb. While not designed for off-road use, the long-travel suspension’s ability to cope with less-than-perfect street conditions allows the Versys 1000 to remain composed where bikes with stiffer, sportier set-ups would require backing off the throttle. Lightweight 17” wheels front and rear contribute to quick, sporty handling.
Using the latest evolution of Kawasaki’s advanced modelling software and feedback from a compact Bosch IMU (Inertial Measurement Unit), KCMF monitors engine and chassis parameters throughout the corner – from entry, through the apex, to corner exit – modulating brake force and engine power to facilitate smooth transition from acceleration to braking and back again, and to assist riders in tracing their intended line through the corner.
Using the latest evolution of Kawasaki’s advanced modelling software and feedback from a compact Bosch IMU (Inertial Measurement Unit), KCMF monitors engine and chassis parameters throughout the corner – from entry, through the apex, to corner exit – modulating brake force and engine power to facilitate smooth transition from acceleration to braking and back again, and to assist riders in tracing their intended line through the corner.
The Ø 310 mm front petal discs are now gripped by highly rigid radial-mount monobloc calipers complemented by a radial-pump front brake master cylinder, contributing to superb feel and formidable stopping power.
The Ø 310 mm front petal discs are now gripped by highly rigid radial-mount monobloc calipers complemented by a radial-pump front brake master cylinder, contributing to superb feel and formidable stopping power.
Three modes cover a wide range of riding conditions, offering either enhanced sport riding performance or the peace of mind under certain conditions to negotiate slippery surfaces with confidence.
Three modes cover a wide range of riding conditions, offering either enhanced sport riding performance or the peace of mind under certain conditions to negotiate slippery surfaces with confidence.
Kawasaki’s supersport-grade high-precision brake management system is standard equipment on the Versys 1000 S. This is the same base system used on the Ninja H2 and Ninja ZX-10R, with programming and settings revised to suit the street performance parameters and long-travel suspension of the Versys 1000 S.
Kawasaki’s supersport-grade high-precision brake management system is standard equipment on the Versys 1000 S. This is the same base system used on the Ninja H2 and Ninja ZX-10R, with programming and settings revised to suit the street performance parameters and long-travel suspension of the Versys 1000 S.
Complementing the Versys 1000’s exhilarating engine character, the quick shifter enables clutchless upshifts and downshifts for seamless acceleration and quick and easy deceleration.
Complementing the Versys 1000’s exhilarating engine character, the quick shifter enables clutchless upshifts and downshifts for seamless acceleration and quick and easy deceleration.
Conveniently located in the cockpit, a DC socket, is now standard equipment. The socket is complemented by prepared pre-wiring. A total of 40 W of power is available.
Conveniently located in the cockpit, a DC socket, is now standard equipment. The socket is complemented by prepared pre-wiring. A total of 40 W of power is available.
Kawasaki’s cruise control system allows a desired speed to be maintained with the simple press of a button. Once activated, the rider does not have to constantly apply the throttle. This reduces stress on the right hand when traveling long distances, enabling relaxed cruising and contributing to a high level of riding comfort.
Kawasaki’s cruise control system allows a desired speed to be maintained with the simple press of a button. Once activated, the rider does not have to constantly apply the throttle. This reduces stress on the right hand when traveling long distances, enabling relaxed cruising and contributing to a high level of riding comfort.
All-inclusive modes that link KTRC & Power Mode allow riders to efficiently set traction control & power delivery to suit a given riding situation
All-inclusive modes that link KTRC & Power Mode allow riders to efficiently set traction control & power delivery to suit a given riding situation
The Versys 1000 S is fitted with the Comfort Seat which features thicker urethane cushioning to provide the comfort to enable long hours in the saddle, while offering taller riders a relaxed knee bend. Both bikes can also be fitted with the accessory Low Seat (20 mm lower) which prioritises an easy reach to the ground.
The Versys 1000 S is fitted with the Comfort Seat which features thicker urethane cushioning to provide the comfort to enable long hours in the saddle, while offering taller riders a relaxed knee bend. Both bikes can also be fitted with the accessory Low Seat (20 mm lower) which prioritises an easy reach to the ground.
Each of the LED headlamps features low and high beams as well as a position lamp. Highly visible, the new headlamps offer significantly increased brightness to illuminate the way on night rides.
Each of the LED headlamps features low and high beams as well as a position lamp. Highly visible, the new headlamps offer significantly increased brightness to illuminate the way on night rides.
The 1,043 cm3 In-line Four, tuned for flexibility, offers superb throttle response, strong torque at all rpm, and a seductive intake howl.
The 1,043 cm3 In-line Four, tuned for flexibility, offers superb throttle response, strong torque at all rpm, and a seductive intake howl.
Grip heaters provide increased comfort on cold days. They fully enclose the grips, ensuring excellent warmth.
Grip heaters provide increased comfort on cold days. They fully enclose the grips, ensuring excellent warmth.
The steplessly adjustable windscreen can be tailored to rider preference, contributing to comfortable highway cruising. Windscreen height can now be easily adjusted from the rider’s seat.
The steplessly adjustable windscreen can be tailored to rider preference, contributing to comfortable highway cruising. Windscreen height can now be easily adjusted from the rider’s seat.
The compact all-digital TFT colour instrumentation gives the cockpit a high-tech, highgrade appearance. The high-grade full colour display features TFT (thin-film transistor) technology, delivering a high level of visibility. The screen’s background colour is selectable (black or white), and screen brightness adjusts automatically to suit available light. In addition to scrollable multi-function windows, two display modes offer riders a choice of how they want their information presented.
The compact all-digital TFT colour instrumentation gives the cockpit a high-tech, highgrade appearance. The high-grade full colour display features TFT (thin-film transistor) technology, delivering a high level of visibility. The screen’s background colour is selectable (black or white), and screen brightness adjusts automatically to suit available light. In addition to scrollable multi-function windows, two display modes offer riders a choice of how they want their information presented.
Lights built into the shrouds help illuminate the road when cornering at night. Each of the three lights has a fixed direction and is activated based on lean angle. As the bike leans over, the lights come on in order, creating a wider illuminated path in the direction the bike is heading.
Lights built into the shrouds help illuminate the road when cornering at night. Each of the three lights has a fixed direction and is activated based on lean angle. As the bike leans over, the lights come on in order, creating a wider illuminated path in the direction the bike is heading.
A Bluetooth technology built into the instrument panel enables riders to connect to their motorcycle wirelessly. Using the smartphone application “RIDEOLOGY THE APP,” a number of instrument functions can be accessed, contributing to an enhanced motorcycling experience.
A Bluetooth technology built into the instrument panel enables riders to connect to their motorcycle wirelessly. Using the smartphone application “RIDEOLOGY THE APP,” a number of instrument functions can be accessed, contributing to an enhanced motorcycling experience.
Electronic Throttle Valves enable the ECU to control the volume of both the fuel (via fuel injectors) and the air (via throttle valves) delivered to the engine. Ideal fuel injection and throttle valve position results in smooth, natural engine response and the ideal engine output.
Electronic Throttle Valves enable the ECU to control the volume of both the fuel (via fuel injectors) and the air (via throttle valves) delivered to the engine. Ideal fuel injection and throttle valve position results in smooth, natural engine response and the ideal engine output.
From the new twin headlamps and compact LED turn signals to the new LED taillight and LED licence plate bulb, the Versys 1000 offers an all-LED lighting package.
From the new twin headlamps and compact LED turn signals to the new LED taillight and LED licence plate bulb, the Versys 1000 offers an all-LED lighting package.
The mounting system for the accessory panniers allows the panniers to be attached and removed very simply, contributing to increased convenience. Seamlessly integrating the panniers with the rear of the bike, the clean-mount system positions the panniers close to the bike centreline, and, thanks to its clean clutter-free design, ensures the rear of the bike still looks good with the panniers removed.
The mounting system for the accessory panniers allows the panniers to be attached and removed very simply, contributing to increased convenience. Seamlessly integrating the panniers with the rear of the bike, the clean-mount system positions the panniers close to the bike centreline, and, thanks to its clean clutter-free design, ensures the rear of the bike still looks good with the panniers removed.
Because real world riding occurs on streets that are often less than circuit smooth – road imperfections (bumps, potholes) are far from rare, and some streets are not even paved (cobblestone, etc) – Kawasaki engineers chose long-travel suspension to enable riders to carve corners with aplomb. While not designed for off-road use, the long-travel suspension’s ability to cope with less-than-perfect street conditions allows the Versys 1000 to remain composed where bikes with stiffer, sportier set-ups would require backing off the throttle. Lightweight 17” wheels front and rear contribute to quick, sporty handling.
Because real world riding occurs on streets that are often less than circuit smooth – road imperfections (bumps, potholes) are far from rare, and some streets are not even paved (cobblestone, etc) – Kawasaki engineers chose long-travel suspension to enable riders to carve corners with aplomb. While not designed for off-road use, the long-travel suspension’s ability to cope with less-than-perfect street conditions allows the Versys 1000 to remain composed where bikes with stiffer, sportier set-ups would require backing off the throttle. Lightweight 17” wheels front and rear contribute to quick, sporty handling.
Using the latest evolution of Kawasaki’s advanced modelling software and feedback from a compact Bosch IMU (Inertial Measurement Unit), KCMF monitors engine and chassis parameters throughout the corner – from entry, through the apex, to corner exit – modulating brake force and engine power to facilitate smooth transition from acceleration to braking and back again, and to assist riders in tracing their intended line through the corner.
Using the latest evolution of Kawasaki’s advanced modelling software and feedback from a compact Bosch IMU (Inertial Measurement Unit), KCMF monitors engine and chassis parameters throughout the corner – from entry, through the apex, to corner exit – modulating brake force and engine power to facilitate smooth transition from acceleration to braking and back again, and to assist riders in tracing their intended line through the corner.
The Ø 310 mm front petal discs are now gripped by highly rigid radial-mount monobloc calipers complemented by a radial-pump front brake master cylinder, contributing to superb feel and formidable stopping power.
The Ø 310 mm front petal discs are now gripped by highly rigid radial-mount monobloc calipers complemented by a radial-pump front brake master cylinder, contributing to superb feel and formidable stopping power.
Three modes cover a wide range of riding conditions, offering either enhanced sport riding performance or the peace of mind under certain conditions to negotiate slippery surfaces with confidence.
Three modes cover a wide range of riding conditions, offering either enhanced sport riding performance or the peace of mind under certain conditions to negotiate slippery surfaces with confidence.
Kawasaki’s supersport-grade high-precision brake management system is standard equipment on the Versys 1000 S. This is the same base system used on the Ninja H2 and Ninja ZX-10R, with programming and settings revised to suit the street performance parameters and long-travel suspension of the Versys 1000 S.
Kawasaki’s supersport-grade high-precision brake management system is standard equipment on the Versys 1000 S. This is the same base system used on the Ninja H2 and Ninja ZX-10R, with programming and settings revised to suit the street performance parameters and long-travel suspension of the Versys 1000 S.
Complementing the Versys 1000’s exhilarating engine character, the quick shifter enables clutchless upshifts and downshifts for seamless acceleration and quick and easy deceleration.
Complementing the Versys 1000’s exhilarating engine character, the quick shifter enables clutchless upshifts and downshifts for seamless acceleration and quick and easy deceleration.
Conveniently located in the cockpit, a DC socket, is now standard equipment. The socket is complemented by prepared pre-wiring. A total of 40 W of power is available.
Conveniently located in the cockpit, a DC socket, is now standard equipment. The socket is complemented by prepared pre-wiring. A total of 40 W of power is available.
Kawasaki’s cruise control system allows a desired speed to be maintained with the simple press of a button. Once activated, the rider does not have to constantly apply the throttle. This reduces stress on the right hand when traveling long distances, enabling relaxed cruising and contributing to a high level of riding comfort.
Kawasaki’s cruise control system allows a desired speed to be maintained with the simple press of a button. Once activated, the rider does not have to constantly apply the throttle. This reduces stress on the right hand when traveling long distances, enabling relaxed cruising and contributing to a high level of riding comfort.
All-inclusive modes that link KTRC & Power Mode allow riders to efficiently set traction control & power delivery to suit a given riding situation
All-inclusive modes that link KTRC & Power Mode allow riders to efficiently set traction control & power delivery to suit a given riding situation
The Versys 1000 S is fitted with the Comfort Seat which features thicker urethane cushioning to provide the comfort to enable long hours in the saddle, while offering taller riders a relaxed knee bend. Both bikes can also be fitted with the accessory Low Seat (20 mm lower) which prioritises an easy reach to the ground.
The Versys 1000 S is fitted with the Comfort Seat which features thicker urethane cushioning to provide the comfort to enable long hours in the saddle, while offering taller riders a relaxed knee bend. Both bikes can also be fitted with the accessory Low Seat (20 mm lower) which prioritises an easy reach to the ground.
Each of the LED headlamps features low and high beams as well as a position lamp. Highly visible, the new headlamps offer significantly increased brightness to illuminate the way on night rides.
Each of the LED headlamps features low and high beams as well as a position lamp. Highly visible, the new headlamps offer significantly increased brightness to illuminate the way on night rides.
The 1,043 cm3 In-line Four, tuned for flexibility, offers superb throttle response, strong torque at all rpm, and a seductive intake howl.
The 1,043 cm3 In-line Four, tuned for flexibility, offers superb throttle response, strong torque at all rpm, and a seductive intake howl.
Grip heaters provide increased comfort on cold days. They fully enclose the grips, ensuring excellent warmth.
Grip heaters provide increased comfort on cold days. They fully enclose the grips, ensuring excellent warmth.
The steplessly adjustable windscreen can be tailored to rider preference, contributing to comfortable highway cruising. Windscreen height can now be easily adjusted from the rider’s seat.
The steplessly adjustable windscreen can be tailored to rider preference, contributing to comfortable highway cruising. Windscreen height can now be easily adjusted from the rider’s seat.
The compact all-digital TFT colour instrumentation gives the cockpit a high-tech, highgrade appearance. The high-grade full colour display features TFT (thin-film transistor) technology, delivering a high level of visibility. The screen’s background colour is selectable (black or white), and screen brightness adjusts automatically to suit available light. In addition to scrollable multi-function windows, two display modes offer riders a choice of how they want their information presented.
The compact all-digital TFT colour instrumentation gives the cockpit a high-tech, highgrade appearance. The high-grade full colour display features TFT (thin-film transistor) technology, delivering a high level of visibility. The screen’s background colour is selectable (black or white), and screen brightness adjusts automatically to suit available light. In addition to scrollable multi-function windows, two display modes offer riders a choice of how they want their information presented.
Lights built into the shrouds help illuminate the road when cornering at night. Each of the three lights has a fixed direction and is activated based on lean angle. As the bike leans over, the lights come on in order, creating a wider illuminated path in the direction the bike is heading.
Lights built into the shrouds help illuminate the road when cornering at night. Each of the three lights has a fixed direction and is activated based on lean angle. As the bike leans over, the lights come on in order, creating a wider illuminated path in the direction the bike is heading.
A Bluetooth technology built into the instrument panel enables riders to connect to their motorcycle wirelessly. Using the smartphone application “RIDEOLOGY THE APP,” a number of instrument functions can be accessed, contributing to an enhanced motorcycling experience.
A Bluetooth technology built into the instrument panel enables riders to connect to their motorcycle wirelessly. Using the smartphone application “RIDEOLOGY THE APP,” a number of instrument functions can be accessed, contributing to an enhanced motorcycling experience.
Electronic Throttle Valves enable the ECU to control the volume of both the fuel (via fuel injectors) and the air (via throttle valves) delivered to the engine. Ideal fuel injection and throttle valve position results in smooth, natural engine response and the ideal engine output.
Electronic Throttle Valves enable the ECU to control the volume of both the fuel (via fuel injectors) and the air (via throttle valves) delivered to the engine. Ideal fuel injection and throttle valve position results in smooth, natural engine response and the ideal engine output.
From the new twin headlamps and compact LED turn signals to the new LED taillight and LED licence plate bulb, the Versys 1000 offers an all-LED lighting package.
From the new twin headlamps and compact LED turn signals to the new LED taillight and LED licence plate bulb, the Versys 1000 offers an all-LED lighting package.
The mounting system for the accessory panniers allows the panniers to be attached and removed very simply, contributing to increased convenience. Seamlessly integrating the panniers with the rear of the bike, the clean-mount system positions the panniers close to the bike centreline, and, thanks to its clean clutter-free design, ensures the rear of the bike still looks good with the panniers removed.
The mounting system for the accessory panniers allows the panniers to be attached and removed very simply, contributing to increased convenience. Seamlessly integrating the panniers with the rear of the bike, the clean-mount system positions the panniers close to the bike centreline, and, thanks to its clean clutter-free design, ensures the rear of the bike still looks good with the panniers removed.
Combined with Kawasaki’s proprietary dynamic modelling program, input from the IMU (Inertial Measurement Unit) enables even more precise chassis orientation awareness, the key to bringing Kawasaki’s electronics to the next level.
IMU means Enhanced Chassis Orientation Awareness. The strength of Kawasaki's cutting-edge electronics has always been the highly sophisticated programming that, using minimal hardware, gives the ECU an accurate real-time picture of what the chassis is doing. Kawasaki's proprietary dynamic modelling program makes skillful use of the magic formula tyre model as it examines changes in multiple parameters, enabling it to take into account changing road and tyre conditions. The addition of an IMU (Inertial Measurement Unit) enables inertia along 6 DOF (degrees of freedom) to be monitored. Acceleration along longitudinal, transverse and vertical axes, plus roll rate and pitch rate are measured. The yaw rate is calculated by the ECU. This additional feedback contributes to an even clearer real-time picture of chassis orientation, enabling even more precise management for control at the limit. With the addition of the IMU and the latest evolution of Kawasaki's advanced modelling software, Kawasaki's electronic engine and chassis management technology takes the step to the next level changing from setting-type and reaction-type systems to feedback-type systems to deliver even greater levels of riding excitement.
Smartphone connectivity contributes to an enhanced motorcycling experience by enabling riders to connect to their motorcycle wirelessly.
Clever technology enables riders to connect to their motorcycle wirelessly. Using the smartphone application RIDEOLOGY THE APP a number of instrument functions can be accessed, contributing to an enhanced motorcycling experience. Vehicle information (such as the odometer, fuel gauge, maintenance schedule, etc) can be viewed on the smartphone. Riding logs (varies by model, but may include GPS route, gear position, rpm, and other information) can be viewed on the smartphone. When connected, telephone (call, mail) notices are displayed on the instrument panel. Riders can also make changes to their motorcycle instrument display settings (preferred units, clock and date setting, etc) via the smartphone. And on certain models, it is even possible to check and adjust vehicle settings (such as Rider Mode, electronic rider support features, and payload settings) using the smartphone.
3-Mode KTRC (Kawasaki TRaction Control), Kawasaki's most advanced traction control system, offers a selection of modes to suit a variety of riding situations, from sport riding to touring.
3-mode KTRC combines the traction control technology of both 1-mode KTRC, which provides enhanced stability in slippery situations by preventing wheel slip, and S-KTRC, which helps maintain optimum traction in sport riding situations by predicting the rear wheel slip ratio during acceleration, into a single system. The convenient handle switch allows the type of traction control to be changed instantly by selecting one of the three modes, even while riding. Modes 1 and 2 maintain optimum traction during cornering, like S-KTRC. Designed with sport riding in mind, they enable sharp acceleration out of corners by maximizing forward drive from the rear wheel. Modes 1 and 2 differ in the amount that they intervene. Mode 1, set for dry, good-grip road conditions, maintains the ideal slip ratio to ensure optimum traction. Mode 3 operates like 1-mode KTRC, reducing power to allow grip to be regained when rear wheel spin is detected. It is ideal when riding in slippery conditions or in the wet. Enabling riders to easily change traction control character, 3-mode KTRC is Kawasaki's most advanced engine management system.
Cornering lights provide supplemental illumination when cornering, creating a wider illuminated path in the direction the bike is heading.
Sets of three LED lights built into each side of the fairing help illuminate the road when cornering at night. Each of the three lights has a fixed direction and is activated based on lean angle. As the bike leans over, the lightscome on in order, creating a wider illuminated path in the direction the bike is heading.
Electronic Throttle Valves allow the ECU to deliver the ideal amount of fuel and air to the engine.
Kawasaki's fully electronic throttle actuation system enables the ECU to control the volume of both the fuel (via fuel injectors) and the air (via throttle valves) delivered to the engine. Ideal fuel injection and throttle valve position results in smooth, natural engine response and the ideal engine output. The system also makes a significant contribution to reduced emissions. Electronic throttle valves also enable more precise control of electronic engine management systems like S-KTRC and KTRC, and allow the implementation of electronic systems like KLCM, Kawasaki Engine Brake Control, and Electronic Cruise Control.
Based on racing technology, the Assist & Slipper Clutch acts as both a back-torque limiter and a self-servo mechanism that enables a lighter clutch lever pull.
Based on feedback from racing activities, the Assist & Slipper Clutch uses two types of cams (an assist cam and a slipper cam) to either drive the clutch hub and operating plate together or apart. Under normal operation, the assist cam functions as a self-servo mechanism, pulling the clutch hub and operating plate together to compress the clutch plates. This allows the total clutch spring load to be reduced, resulting in a lighter clutch lever feel when operating the clutch. When excessive engine braking occurs as a result of quick downshifts (or an accidental downshift) the slipper cam comes into play, forcing the clutch hub and operating plate apart. This relieves pressure on the clutch plates to reduce back-torque and helps prevent the rear tyre from hopping and skidding. This race-style function is particularly useful when sport or track riding.
KCMF (Kawasaki Cornering Management Function) monitors engine and chassis parameters throughout the corner.
KCMF monitors engine and chassis parameters throughout the corner from entry, through the apex, to corner exit modulating brake force and engine power to facilitate smooth transition from acceleration to braking and back again, and to assist riders in tracing their intended line through the corner. KCMF oversees the following systems (where available): KTRC (including traction, wheelie and sliding control), KIBS (including pitching control), Kawasaki Engine Brake Control
Designed to help riders maximise their acceleration on the circuit by enabling clutchless upshifts with the throttle fully open, KQS detects that the shift lever has been actuated and sends a signal to the ECU to cut ignition so that the next gear can be engaged without having to use the clutch. On models that offer clutchless downshifts, during deceleration the system automatically controls engine speed so that the next lower gear can be selected without operating the clutch.
KIBS (Kawasaki Intelligent anti-lock Brake System) is a high-precision brake system designed specifically for supersport models, offering highly efficient braking while maintaining natural feel.
Kawasaki developed KIBS to take into account the particular handling characteristics of supersport motorcycles, ensuring highly efficient braking with minimal intrusion during hard sport riding. It is the first mass-production brake system to link the ABS ECU (Electronic Control Unit) and engine ECU. In addition front and rear wheel speed, KIBS monitors front brake caliper hydraulic pressure, throttle position, engine speed, clutch actuation and gear position. This diverse information is analysed to determine the ideal front brake hydraulic pressure. Through precise control, the large drops in hydraulic pressure seen on standard ABS systems can be avoided. Additionally, the tendency on supersport models for the rear wheel to lift under heavy braking can be suppressed and rear brake controllability can be maintained when downshifting.
Horizontal Back-link Rear Suspension arranges its shock unit horizontally, greatly contributing to efficient use of space and mass centralisation.
Compared to Kawasaki's traditional Uni-Trak rear suspension, which mounts the shock unit vertically, with Horizontal Back-link rear suspension, the shock unit is almost horizontal. Kawasaki's original suspension arrangement locates the shock unit very close to the bike's centre of gravity, greatly contributing to mass centralisation. And because there is no linkage or shock unit protruding beneath the swingarm, this frees up space for a larger exhaust pre-chamber (an exhaust expansion chamber situated just upstream of the silencer). With a larger pre-chamber, silencer volume can be reduced, and heavy exhaust components can be concentrated closer to the centre of the bike, further contributing to mass centralisation. The result is greatly improved handling. Another benefit is that the shock unit is placed far away from exhaust heat. Because it is more difficult for heat from the exhaust system to adversely affect suspension oil and gas pressure, suspension performance is more stable. Horizontal Back-link rear suspension offers numerous secondary benefits like this.
Electronic Cruise Control allows vehicle speed to be fixed. Rider support technology that helps reduce rider fatigue on long trips and contributes to increased touring comfort.
Electronic Cruise Control allows a desired speed (engine rpm) to be maintained with the simple press of a button. Once activated, the rider does not have to constantly apply the throttle. This reduces stress on the right hand when travelling long distances, enabling relaxed cruising and contributing to a high level of riding comfort.
ERGO-FIT is an interface system that allows a wide range of riders to feel at one with their machine.
Proper fit is key for rider comfort and control. However, the ideal fit varies from rider to rider, depending on their physical dimensions and riding style. ERGO-FIT is an interface system designed to allow riders to find their ideal riding position. Various points of the chassis interface (the handlebar, footpegs and seat, etc) can be adjusted through a combination of interchangeable parts and parts with adjustable positions. This enables a wide range of riders to find a riding position that offers both comfort and control. Feeling at one with their machine, they will be able to experience how Kawasaki machines are fun and rewarding to ride. *Adjustable parts and their range of adjustability vary by model.
Power Mode selection allows engine power delivery to be changed to suit the riding situation.
Models equipped with multiple Power Modes offer riders an easily selectable choice of engine power delivery to suit riding conditions or preference. In addition to Full Power mode, one (Low) or two (Middle, Low) alternate mode(s) in which maximum power is limited and throttle response is milder are provided.
The Economical Riding Indicator is a mark appearing on the instrument panel to indicate favourable fuel consumption, encouraging fuel efficient riding.
Using high-precision electronic control for engine management, Kawasaki models can achieve a high level of fuel efficiency. However, fuel consumption is greatly affected by throttle use, gear selection, and other elements under the rider's control. The Economical Riding Indicator is a function that indicates when current riding conditions are consuming a low amount of fuel. The system continuously monitors fuel consumption, regardless of vehicle speed, engine speed, throttle position and other riding conditions. When fuel consumption is low for a given speed (i.e. fuel efficiency is high), an "ECO" mark appears on the instrument panel's LCD screen. By riding so that the "ECO" mark remains on, fuel consumption can be reduced. While effective vehicle speed and engine speed may vary by model, paying attention to conditions that cause the "ECO" mark to appear can help riders improve their fuel efficiency – a handy way to increase cruising range. Further, keeping fuel consumption low also helps minimise negative impact on the environment.
ABS (Anti-lock Brake System) ensures stable braking performance by preventing wheel lock during braking.
Sudden over-application of the brakes, or braking on low-grip surfaces (surfaces with a low coefficient of friction) such as wet asphalt or manhole covers may cause a motorcycle's wheel(s) to lock up and slip. ABS was developed to prevent such incidents. Kawasaki ABS systems are controlled by high precision and highly reliable programming formulated based on thorough testing of numerous riding situations. By ensuring stable braking performance, they offer rider reassurance that contributes to greater riding enjoyment. And to meet the special requirements of certain riders, specialised ABS systems are also available. For example, KIBS (Kawasaki Intelligent anti-lock Brake System) is a high-precision brake system designed specifically for supersport models, enabling sport riding to be enjoyed by a wider range of riders. And by linking the front and rear brakes, K-ACT (Kawasaki Advanced Coactive-braking Technology) ABS provides the confidence to enjoy touring on heavyweight models. Kawasaki is continually working on the development of other advanced ABS systems.
Combined with Kawasaki’s proprietary dynamic modelling program, input from the IMU (Inertial Measurement Unit) enables even more precise chassis orientation awareness, the key to bringing Kawasaki’s electronics to the next level.
IMU means Enhanced Chassis Orientation Awareness. The strength of Kawasaki's cutting-edge electronics has always been the highly sophisticated programming that, using minimal hardware, gives the ECU an accurate real-time picture of what the chassis is doing. Kawasaki's proprietary dynamic modelling program makes skillful use of the magic formula tyre model as it examines changes in multiple parameters, enabling it to take into account changing road and tyre conditions. The addition of an IMU (Inertial Measurement Unit) enables inertia along 6 DOF (degrees of freedom) to be monitored. Acceleration along longitudinal, transverse and vertical axes, plus roll rate and pitch rate are measured. The yaw rate is calculated by the ECU. This additional feedback contributes to an even clearer real-time picture of chassis orientation, enabling even more precise management for control at the limit. With the addition of the IMU and the latest evolution of Kawasaki's advanced modelling software, Kawasaki's electronic engine and chassis management technology takes the step to the next level changing from setting-type and reaction-type systems to feedback-type systems to deliver even greater levels of riding excitement.
Smartphone connectivity contributes to an enhanced motorcycling experience by enabling riders to connect to their motorcycle wirelessly.
Clever technology enables riders to connect to their motorcycle wirelessly. Using the smartphone application RIDEOLOGY THE APP a number of instrument functions can be accessed, contributing to an enhanced motorcycling experience. Vehicle information (such as the odometer, fuel gauge, maintenance schedule, etc) can be viewed on the smartphone. Riding logs (varies by model, but may include GPS route, gear position, rpm, and other information) can be viewed on the smartphone. When connected, telephone (call, mail) notices are displayed on the instrument panel. Riders can also make changes to their motorcycle instrument display settings (preferred units, clock and date setting, etc) via the smartphone. And on certain models, it is even possible to check and adjust vehicle settings (such as Rider Mode, electronic rider support features, and payload settings) using the smartphone.
3-Mode KTRC (Kawasaki TRaction Control), Kawasaki's most advanced traction control system, offers a selection of modes to suit a variety of riding situations, from sport riding to touring.
3-mode KTRC combines the traction control technology of both 1-mode KTRC, which provides enhanced stability in slippery situations by preventing wheel slip, and S-KTRC, which helps maintain optimum traction in sport riding situations by predicting the rear wheel slip ratio during acceleration, into a single system. The convenient handle switch allows the type of traction control to be changed instantly by selecting one of the three modes, even while riding. Modes 1 and 2 maintain optimum traction during cornering, like S-KTRC. Designed with sport riding in mind, they enable sharp acceleration out of corners by maximizing forward drive from the rear wheel. Modes 1 and 2 differ in the amount that they intervene. Mode 1, set for dry, good-grip road conditions, maintains the ideal slip ratio to ensure optimum traction. Mode 3 operates like 1-mode KTRC, reducing power to allow grip to be regained when rear wheel spin is detected. It is ideal when riding in slippery conditions or in the wet. Enabling riders to easily change traction control character, 3-mode KTRC is Kawasaki's most advanced engine management system.
Cornering lights provide supplemental illumination when cornering, creating a wider illuminated path in the direction the bike is heading.
Sets of three LED lights built into each side of the fairing help illuminate the road when cornering at night. Each of the three lights has a fixed direction and is activated based on lean angle. As the bike leans over, the lightscome on in order, creating a wider illuminated path in the direction the bike is heading.
Electronic Throttle Valves allow the ECU to deliver the ideal amount of fuel and air to the engine.
Kawasaki's fully electronic throttle actuation system enables the ECU to control the volume of both the fuel (via fuel injectors) and the air (via throttle valves) delivered to the engine. Ideal fuel injection and throttle valve position results in smooth, natural engine response and the ideal engine output. The system also makes a significant contribution to reduced emissions. Electronic throttle valves also enable more precise control of electronic engine management systems like S-KTRC and KTRC, and allow the implementation of electronic systems like KLCM, Kawasaki Engine Brake Control, and Electronic Cruise Control.
Based on racing technology, the Assist & Slipper Clutch acts as both a back-torque limiter and a self-servo mechanism that enables a lighter clutch lever pull.
Based on feedback from racing activities, the Assist & Slipper Clutch uses two types of cams (an assist cam and a slipper cam) to either drive the clutch hub and operating plate together or apart. Under normal operation, the assist cam functions as a self-servo mechanism, pulling the clutch hub and operating plate together to compress the clutch plates. This allows the total clutch spring load to be reduced, resulting in a lighter clutch lever feel when operating the clutch. When excessive engine braking occurs as a result of quick downshifts (or an accidental downshift) the slipper cam comes into play, forcing the clutch hub and operating plate apart. This relieves pressure on the clutch plates to reduce back-torque and helps prevent the rear tyre from hopping and skidding. This race-style function is particularly useful when sport or track riding.
KCMF (Kawasaki Cornering Management Function) monitors engine and chassis parameters throughout the corner.
KCMF monitors engine and chassis parameters throughout the corner from entry, through the apex, to corner exit modulating brake force and engine power to facilitate smooth transition from acceleration to braking and back again, and to assist riders in tracing their intended line through the corner. KCMF oversees the following systems (where available): KTRC (including traction, wheelie and sliding control), KIBS (including pitching control), Kawasaki Engine Brake Control
Designed to help riders maximise their acceleration on the circuit by enabling clutchless upshifts with the throttle fully open, KQS detects that the shift lever has been actuated and sends a signal to the ECU to cut ignition so that the next gear can be engaged without having to use the clutch. On models that offer clutchless downshifts, during deceleration the system automatically controls engine speed so that the next lower gear can be selected without operating the clutch.
KIBS (Kawasaki Intelligent anti-lock Brake System) is a high-precision brake system designed specifically for supersport models, offering highly efficient braking while maintaining natural feel.
Kawasaki developed KIBS to take into account the particular handling characteristics of supersport motorcycles, ensuring highly efficient braking with minimal intrusion during hard sport riding. It is the first mass-production brake system to link the ABS ECU (Electronic Control Unit) and engine ECU. In addition front and rear wheel speed, KIBS monitors front brake caliper hydraulic pressure, throttle position, engine speed, clutch actuation and gear position. This diverse information is analysed to determine the ideal front brake hydraulic pressure. Through precise control, the large drops in hydraulic pressure seen on standard ABS systems can be avoided. Additionally, the tendency on supersport models for the rear wheel to lift under heavy braking can be suppressed and rear brake controllability can be maintained when downshifting.
Horizontal Back-link Rear Suspension arranges its shock unit horizontally, greatly contributing to efficient use of space and mass centralisation.
Compared to Kawasaki's traditional Uni-Trak rear suspension, which mounts the shock unit vertically, with Horizontal Back-link rear suspension, the shock unit is almost horizontal. Kawasaki's original suspension arrangement locates the shock unit very close to the bike's centre of gravity, greatly contributing to mass centralisation. And because there is no linkage or shock unit protruding beneath the swingarm, this frees up space for a larger exhaust pre-chamber (an exhaust expansion chamber situated just upstream of the silencer). With a larger pre-chamber, silencer volume can be reduced, and heavy exhaust components can be concentrated closer to the centre of the bike, further contributing to mass centralisation. The result is greatly improved handling. Another benefit is that the shock unit is placed far away from exhaust heat. Because it is more difficult for heat from the exhaust system to adversely affect suspension oil and gas pressure, suspension performance is more stable. Horizontal Back-link rear suspension offers numerous secondary benefits like this.
Electronic Cruise Control allows vehicle speed to be fixed. Rider support technology that helps reduce rider fatigue on long trips and contributes to increased touring comfort.
Electronic Cruise Control allows a desired speed (engine rpm) to be maintained with the simple press of a button. Once activated, the rider does not have to constantly apply the throttle. This reduces stress on the right hand when travelling long distances, enabling relaxed cruising and contributing to a high level of riding comfort.
ERGO-FIT is an interface system that allows a wide range of riders to feel at one with their machine.
Proper fit is key for rider comfort and control. However, the ideal fit varies from rider to rider, depending on their physical dimensions and riding style. ERGO-FIT is an interface system designed to allow riders to find their ideal riding position. Various points of the chassis interface (the handlebar, footpegs and seat, etc) can be adjusted through a combination of interchangeable parts and parts with adjustable positions. This enables a wide range of riders to find a riding position that offers both comfort and control. Feeling at one with their machine, they will be able to experience how Kawasaki machines are fun and rewarding to ride. *Adjustable parts and their range of adjustability vary by model.
Power Mode selection allows engine power delivery to be changed to suit the riding situation.
Models equipped with multiple Power Modes offer riders an easily selectable choice of engine power delivery to suit riding conditions or preference. In addition to Full Power mode, one (Low) or two (Middle, Low) alternate mode(s) in which maximum power is limited and throttle response is milder are provided.
The Economical Riding Indicator is a mark appearing on the instrument panel to indicate favourable fuel consumption, encouraging fuel efficient riding.
Using high-precision electronic control for engine management, Kawasaki models can achieve a high level of fuel efficiency. However, fuel consumption is greatly affected by throttle use, gear selection, and other elements under the rider's control. The Economical Riding Indicator is a function that indicates when current riding conditions are consuming a low amount of fuel. The system continuously monitors fuel consumption, regardless of vehicle speed, engine speed, throttle position and other riding conditions. When fuel consumption is low for a given speed (i.e. fuel efficiency is high), an "ECO" mark appears on the instrument panel's LCD screen. By riding so that the "ECO" mark remains on, fuel consumption can be reduced. While effective vehicle speed and engine speed may vary by model, paying attention to conditions that cause the "ECO" mark to appear can help riders improve their fuel efficiency – a handy way to increase cruising range. Further, keeping fuel consumption low also helps minimise negative impact on the environment.
ABS (Anti-lock Brake System) ensures stable braking performance by preventing wheel lock during braking.
Sudden over-application of the brakes, or braking on low-grip surfaces (surfaces with a low coefficient of friction) such as wet asphalt or manhole covers may cause a motorcycle's wheel(s) to lock up and slip. ABS was developed to prevent such incidents. Kawasaki ABS systems are controlled by high precision and highly reliable programming formulated based on thorough testing of numerous riding situations. By ensuring stable braking performance, they offer rider reassurance that contributes to greater riding enjoyment. And to meet the special requirements of certain riders, specialised ABS systems are also available. For example, KIBS (Kawasaki Intelligent anti-lock Brake System) is a high-precision brake system designed specifically for supersport models, enabling sport riding to be enjoyed by a wider range of riders. And by linking the front and rear brakes, K-ACT (Kawasaki Advanced Coactive-braking Technology) ABS provides the confidence to enjoy touring on heavyweight models. Kawasaki is continually working on the development of other advanced ABS systems.
Engine type | Liquid-cooled, 4-stroke, in-line four |
---|---|
Compression ratio | 10.3:1 |
Valve system | DOHC, 16 valves |
Bore x stroke | 77.0 x 56.0 mm |
Displacement | 1043 cm³ |
Fuel system | Fuel injection: 38 mm x 4 |
Lubrication | Forced lubrication, wet sump |
Starting system | Electric |
Ignition system | Digital |
Maximum power | 88.2 kW {120 PS} / 9,000 rpm |
---|---|
Maximum torque | 102.0 N•m {10.4 kgf•m} / 7,500 rpm |
CO2 emission | 128 g/km |
Fuel consumption | 5.5 l/100km |
CO2 emission 85 kW kit | 128 g/km |
Fuel consumption 85 kW kit | 5.5 l/100km |
Transmission | 6-speed, return shift |
Clutch | Wet, multi disc |
Primary reduction ratio | 1.627 (83/51) |
Gear ratios 1st | 2.692 (35/13) |
Gear ratios 2nd | 1.950 (39/20) |
Gear ratios 3rd | 1.529 (26/17) |
Gear ratios 4th | 1.304 (30/23) |
Gear ratios 5th | 1.136 (25/22) |
Gear ratios 6th | 0.958 (23/24) |
Final drive | Sealed chain |
Final reduction ratio | 2.867 (43/15) |
Frame type | Twin-tube aluminium |
---|---|
Trail | 106 mm |
Wheel travel front | 150 mm |
Wheel travel rear | 152 mm |
Tyre, front | 120/70 ZR17 M/C (58W) |
Tyre, rear | 180/55 ZR17 M/C (73W) |
L x W x H | 2,270 x 950 x 1,490 mm (1,530 high position screen) |
Steering angle L R | 34° / 34° |
Wheel base | 1,520 mm |
Ground clearance | 150 mm |
Fuel capacity | 21.0 litres |
Seat height | 840 mm |
Curb mass | 255 kg |
Front brake type | Dual semi-floating petal discs |
---|---|
Front brake diameter | Ø 310 mm |
Front brake caliper type | Radial-mount, monobloc, opposed 4-piston |
Rear brake type | Single petal disc |
Rear brake diameter | Ø 250 mm |
Rear brake caliper type | Single-piston |
Front suspension type | Inverted fork with rebound damping (right side), and spring preload adjustability |
Front suspension diameter | Ø 43 mm |
Rear suspension type | Horizontal Back-link, gas-charged shock, stepless rebound damping, and remote spring preload adjustability |
Inpage Navigation Section: Accessories
Strong durable multi layered fabric with taped seams. Heat resistant honeycomb till 120 degrees Celcius. Subtle Branding.
100% Polyester. With multi usable packing backpack.
(XL + top case cover has extra compartment that can be zipped open to make room for top case)
Made from strong Anti-tear Honeycomb ripstop fabric. Heat resistance till 120 degrees Celsius. Subtle branding.
100% Polyester. With multi usable (back)packing string bag.
(XL + top case cover has extra compartment that can be zipped open to make room for top case)
Rugged and aerodynamic dual LED Light Bar provides additional lighting for improved visibility.
Akrapovič Black Titanium Slip-on type exhaust.
A combination of racing materials like titanium for the muffler outer sleeve and carbon fiber end cap give this exhaust system a racing touch. This homologated exhaust system is compliant with Euro 4 and Euro 5 regulations (emissions and noise) and has EC type-approval. The heat shield is included.
Zippered black nylon liners make it easy to pack your cargo and drop into the locking panniers.
Once you’ve arrived at your destination, just grab your pannier inner bags so you can leave the panniers on your motorcycle and get going.
Quick release 56L pannier set that will hold most full-face helmets. Panniers designed to attached to handgrips and footrest and give a clean sporty look when removed. Narrow mounting width of 93cm and suitable for high speed
cruising.
Set requires:
Rigid, water-resistant bag with compartments makes it easy to pack your cargo and drop into the locking Top Case. Once you have arrived at your destination, just grab your packed Inner Bag so you can leave the Top Case on your motorcycle and get going.
Keep your personal items in 47 liters of lockable, waterproof storage; enough room for two full-face helmets. Requires Base Plate and model specific accessories.
Developed in conjuction wih SP Connect the kit consists of a Clutch Mount, Anti-vibration module and a Universal Phone Clamp. Suits mosts mobile phones; Simply pull out the crown, screw it tight, and then push the crown back in to lock your phone in place. While remaining fully operable, your phone can now be attached to or detached from the mount in seconds.
Whether you want to park your bike in a pitbox or in your garage, let your precious machine rest in style on this Kawasaki Garage Mat. The mat meets new FIM environmental codes and offers a high level of absorption and dust-control features.
Discover your next adventure
Ride challenge level. Plan windy and hilly roads
Discover the world's best curated riding routes, exclusively
Updates via Wi-Fi®. No computer needed
Discover, personalize and enjoy stunning riding routes with MyDrive
Compatible with Siri and Google Now™
Smartphone messages read aloud, hands-free calling
Lifetime* Worldwide Maps, TomTom Traffic and Services
Double the processing speed and five times faster start-up
An essential tool for motorcycle enthusiasts and mechanics alike. Designed to provide stability and convenience, this paddock stand allows easy access to the wheels, suspension, and other components.
This premium rear bike stand can be disassembled, making transportation a lot easier. The compact bike stand comes in a shop worthy carrying case with a built-in carrying handle. The stand is made of premium steel and has a green and black finish. The Kawasaki logo is laser cut in steel.
Optional are the forks to suit your preference;
