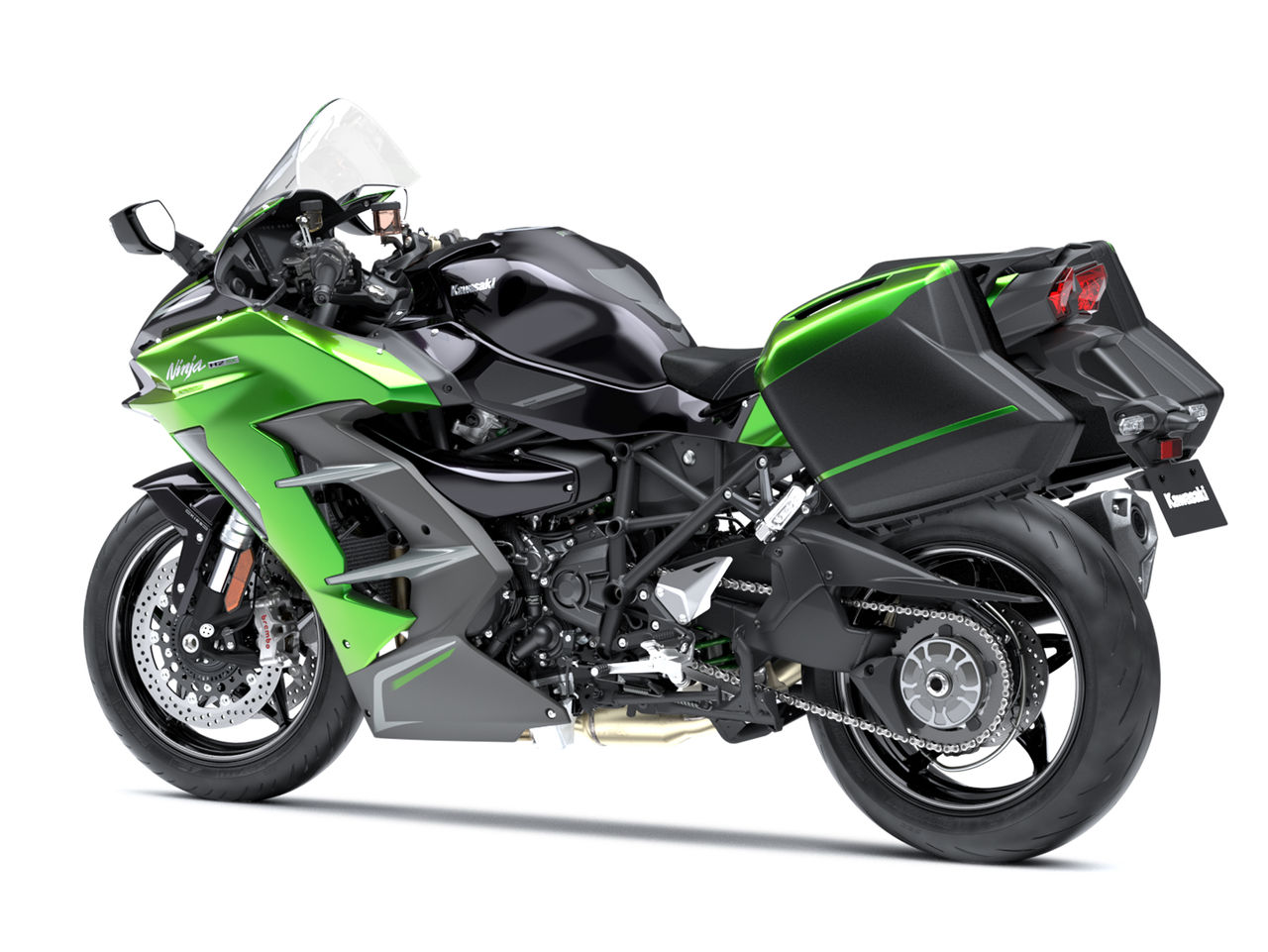

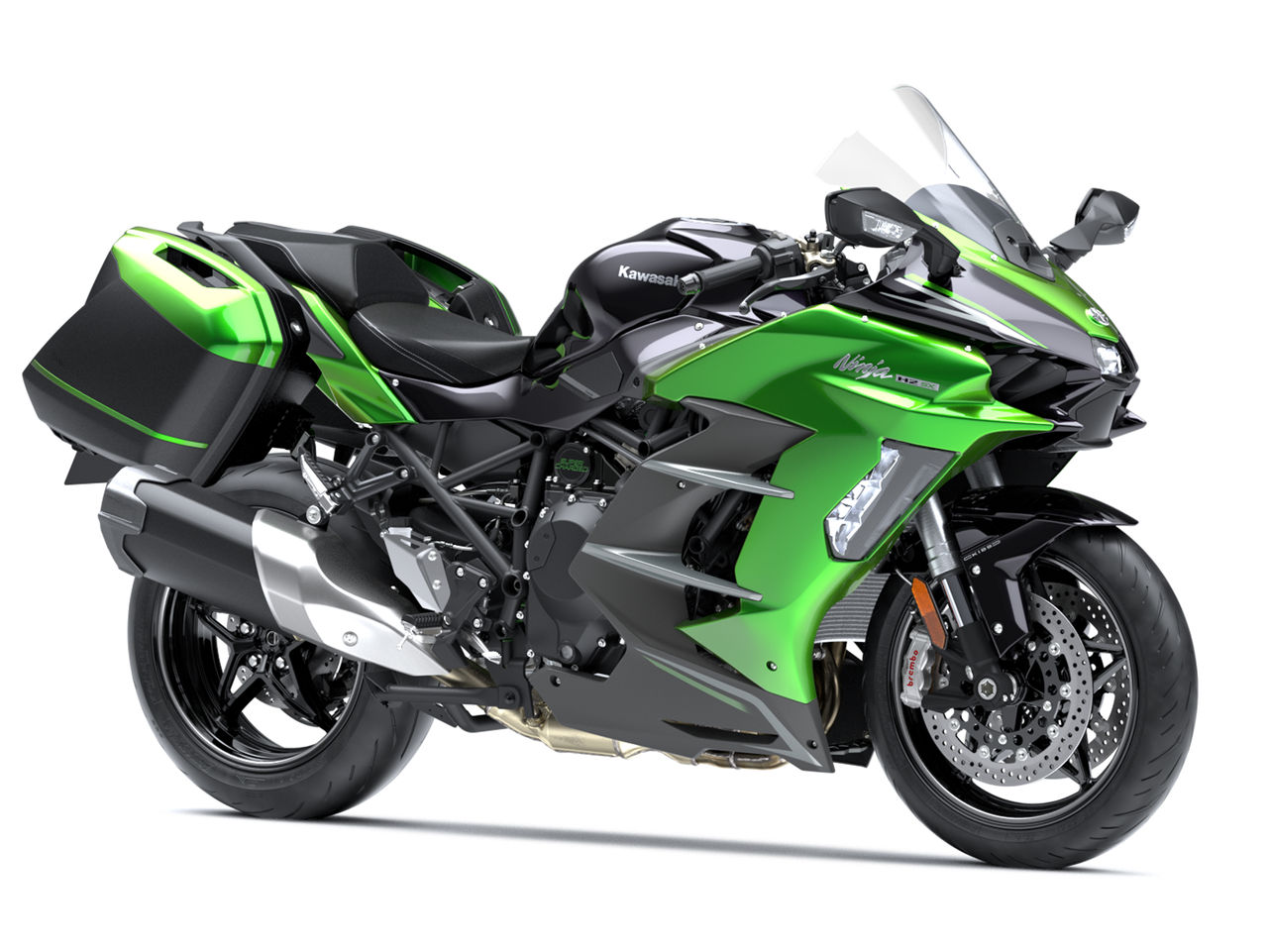

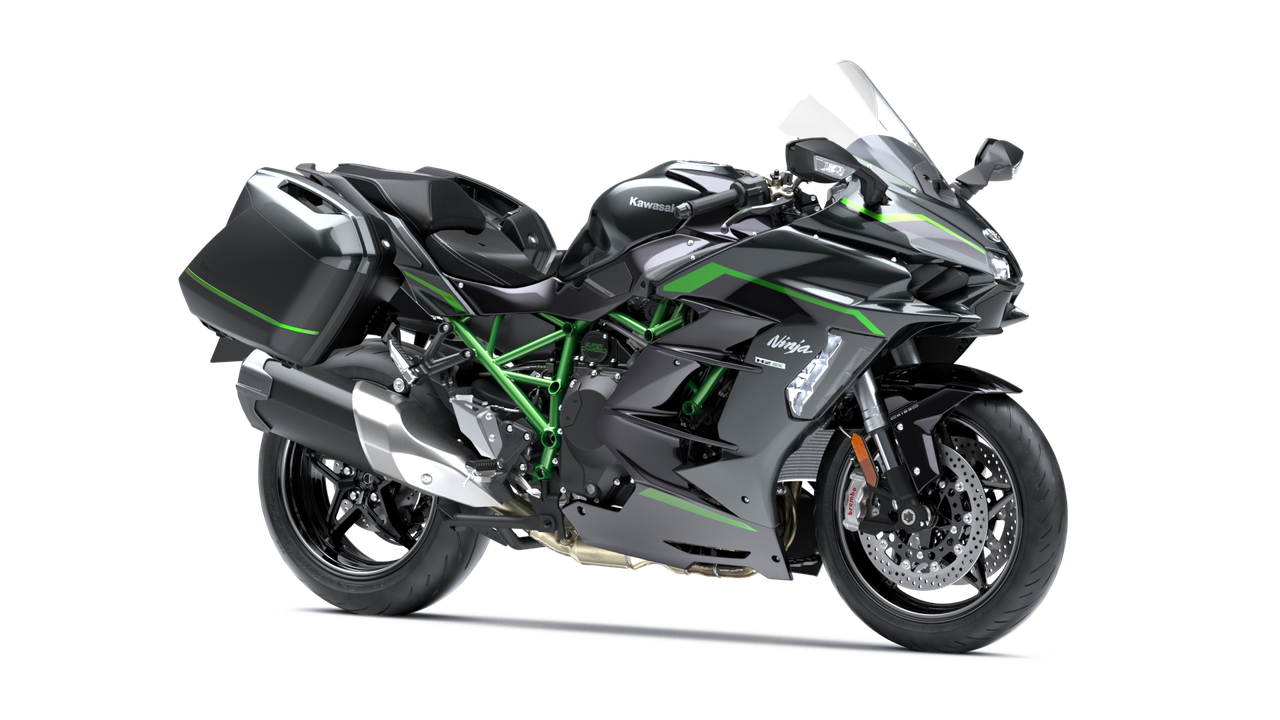

The Kawasaki Ninja H2 SX is Kawasaki's most advanced Sports Tourer ever; the ultimate integration of the highest standards of technology, performance and riding comfort. New dedicated features like the ARAS system provide real world benefits including adaptive cruise control and blind spot detection. Integrated into the new 6.5” colour TFT instrumentation is Kawasaki's SPIN Infotainment system. Experience the exhilaration of the unique balanced supercharged engine for both long distance touring and daily riding. The best technology is that which becomes a natural extension of ourselves and sets us free. Ninja H2 SX. ENGINEERED TO BE FREE.

See all details
DOWNLOAD BROCHURE

This edition contains:

  • Colour Matched Pannier Set (2 x 28L)
  • Pannier Inner Bag Set

Specifications

Engine

Engine type

Liquid-cooled, 4-stroke, in-line four with Supercharger

Compression ratio

11.2:1

Valve system

DOHC, 16 valves

Bore x stroke

76.0 x 55.0 mm

Displacement

998 cm³

Fuel system

Fuel injection with dual injection: 40 mm x 4

Lubrication

Petrol mix

Starting system

Electric

Ignition system

Digital





Performance & Transmission

Maximum power

147.1 kW {200 PS} / 11,000 rpm

Maximum power with RAM Air

154.1 kW {210 PS} / 11,000 rpm

Maximum torque

137.3 N•m {14.0 kgf•m} / 8,500 rpm

CO2 emission

128 g/km

Fuel consumption

5.4 l/100km

Transmission

6-speed, return shift

Clutch

Wet, multi disc

Primary reduction ratio

1.480 (74/50)

Gear ratios 1st

3.077 (40/13)

Gear ratios 2nd

2.429 (34/14)

Gear ratios 3rd

2.045 (45/22)

Gear ratios 4th

1.727 (38/22)

Gear ratios 5th

1.524 (32/21)

Gear ratios 6th

1.348 (31/23)

Final drive

Sealed chain

Final reduction ratio

2.444 (44/18)





Frame & Dimensions

Frame type

Trellis, high-tensile steel with swingarm mounting plate

Trail

103 mm

Wheel travel front

120 mm

Wheel travel rear

139 mm

Tyre, front

120/70 ZR17 M/C (58W)

Tyre, rear

190/55 ZR17 M/C (75W)

L x W x H

2,175 x 790 x 1,260 mm

Steering angle L/R

30° / 30°

Wheel base

1,480 mm

Ground clearance

130 mm

Fuel capacity

19.0 litres

Seat height

835 mm

Curb mass

267 kg





Brakes & Suspension

Front brake type

Dual semi-floating discs

Front brake diameter

Ø 320 mm

Front brake caliper type

Brembo radial-mount, Stylema monobloc, opposed 4-piston

Rear brake type

Single disc

Rear brake diameter

Ø 250 mm

Rear brake caliper type

Dual-piston

Front suspension type

Inverted fork with KECS-controlled compression and rebound damping, manual spring preload adjustability, and top-out springs

Front suspension diameter

Ø 43 mm

Rear suspension type

Uni-Trak, BFRC lite gas-charged shock with piggyback reservoir, KECS-controlled compression and rebound damping, and remote spring preload adjustability
