3-position footpegs allow riders to adjust foot position to suit size and preference. Three positions available: STD, 25 mm forward, 25 mm back.
Being able to easily put your feet on the ground when stopped is one of the most important factors in feeling comfortable on a motorcycle. At 705 mm, the Vulcan S’s low seat is very accommodating.

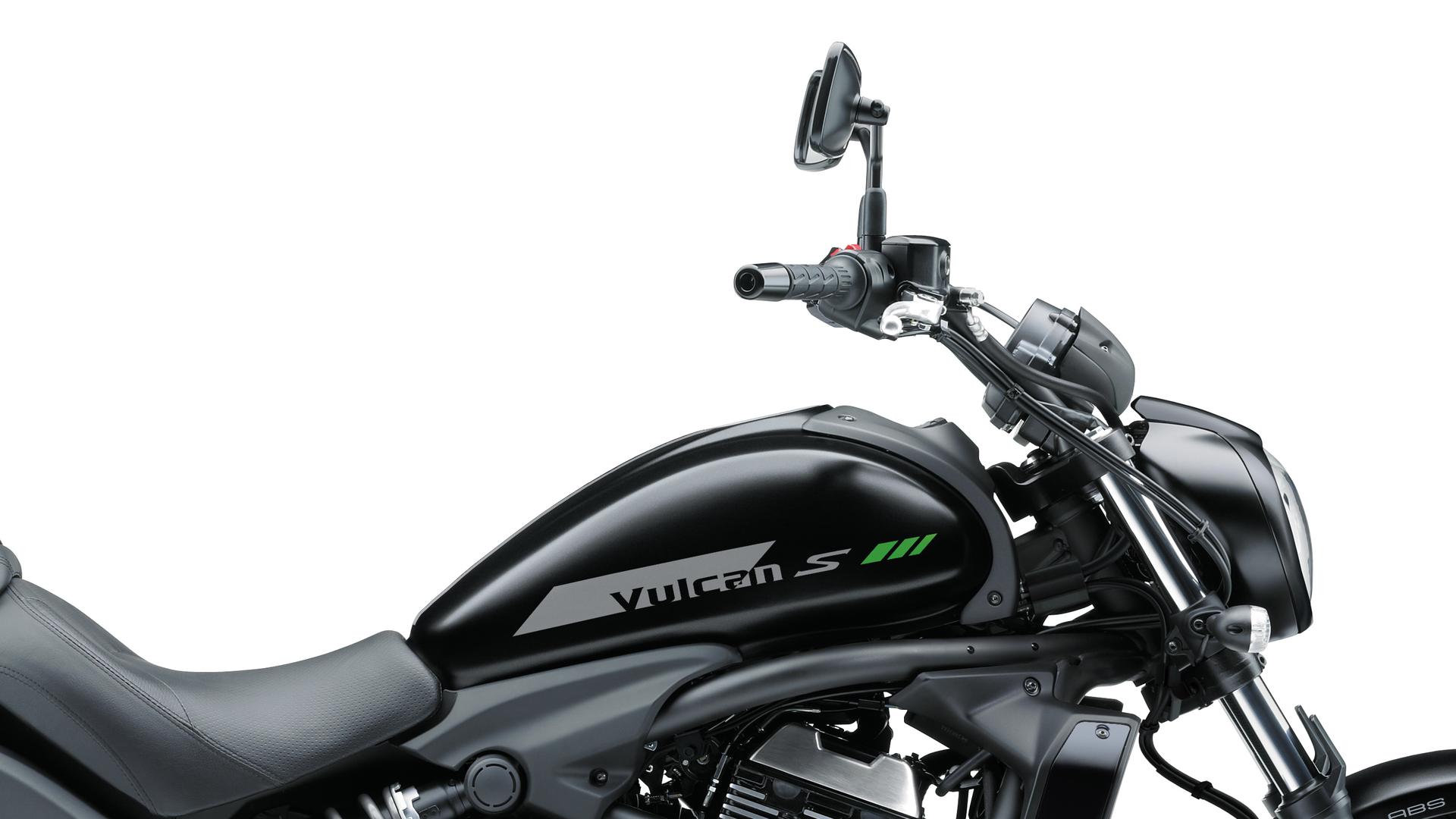

With its 14 litre fuel tank capacity and the Parallel Twin engine’s good fuel economy, the long range offered by the Vulcan S means riders can go longer between fill-ups—convenient in town, and reassuring when out on a daytrip.
Sculpted seat design with thick padding offers excellent comfort and good hip support.
Multi-position levers allow riders to adjust lever position to suit hand size and preference.
Original-design instrumentation cluster features an analogue-style tachometer and multi-purpose LCD. Convenient features keep riders fully informed of operating conditions. Including a gear indicator.
Low overall weight, fine-tuned chassis rigidity balance, 18”/17” radial tyres and suspension settings result in a bike with light, easy handling and easy manoeuvrability.

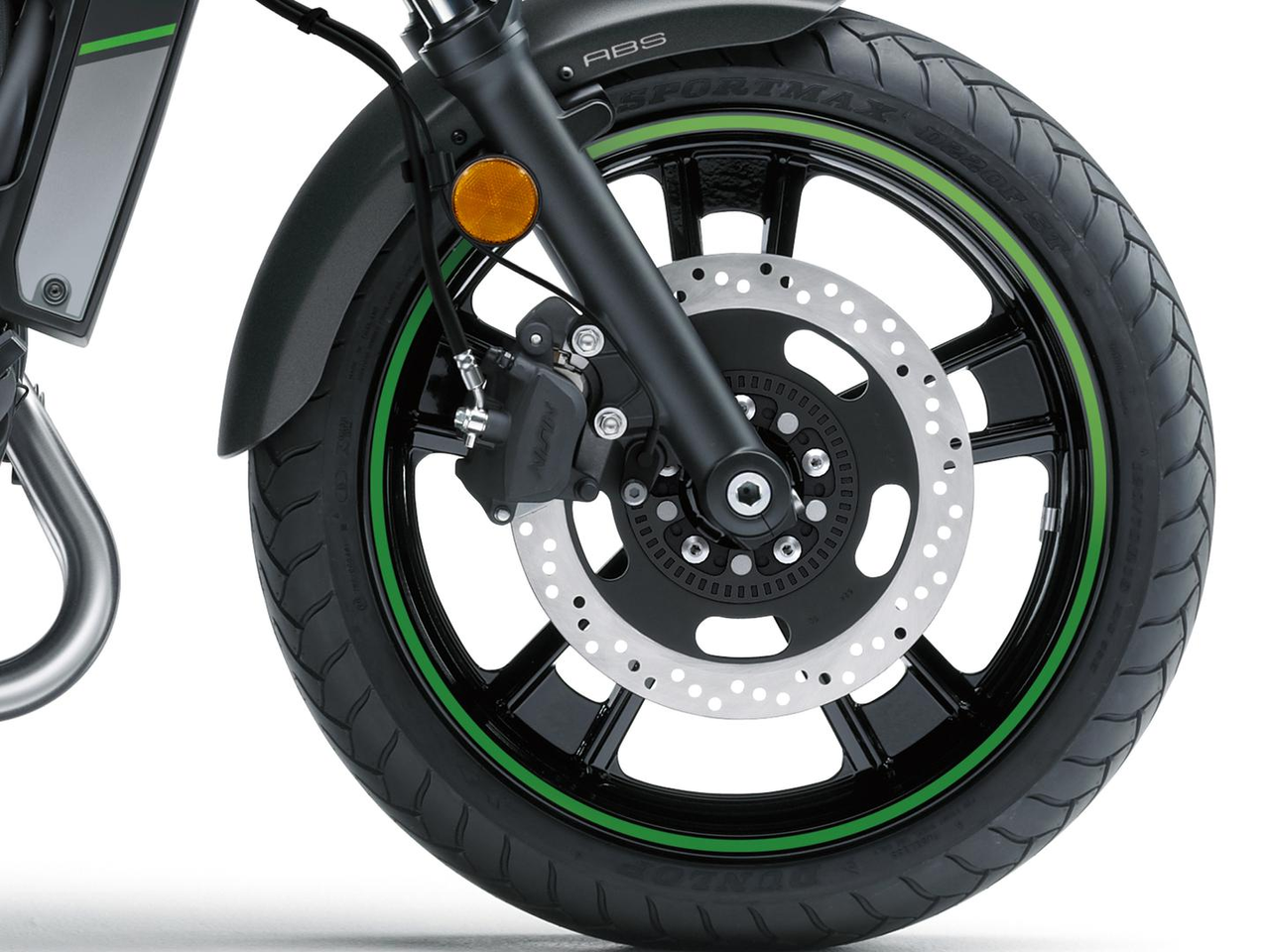

Large-diameter disc brakes balance ample stopping power with easy control for beginning riders.
The compact engine and slim frame result in a design that is narrow at the knees and feet. Forward positioned footpegs are ideal for relaxed, cruiser style riding.
Liquid-cooled, DOHC, 8-valve 649 cm3 Parallel Twin with fuel injection delivers smooth, responsive performance, especially in the low and medium rpm ranges. The engine was tuned for rider-friendly power characteristics that will inspire confidence in new riders. The Vulcan S offers smooth starts from a standstill, smooth acceleration, and a satisfying pull when accelerating. The strong acceleration facilitates highway merging and passing.

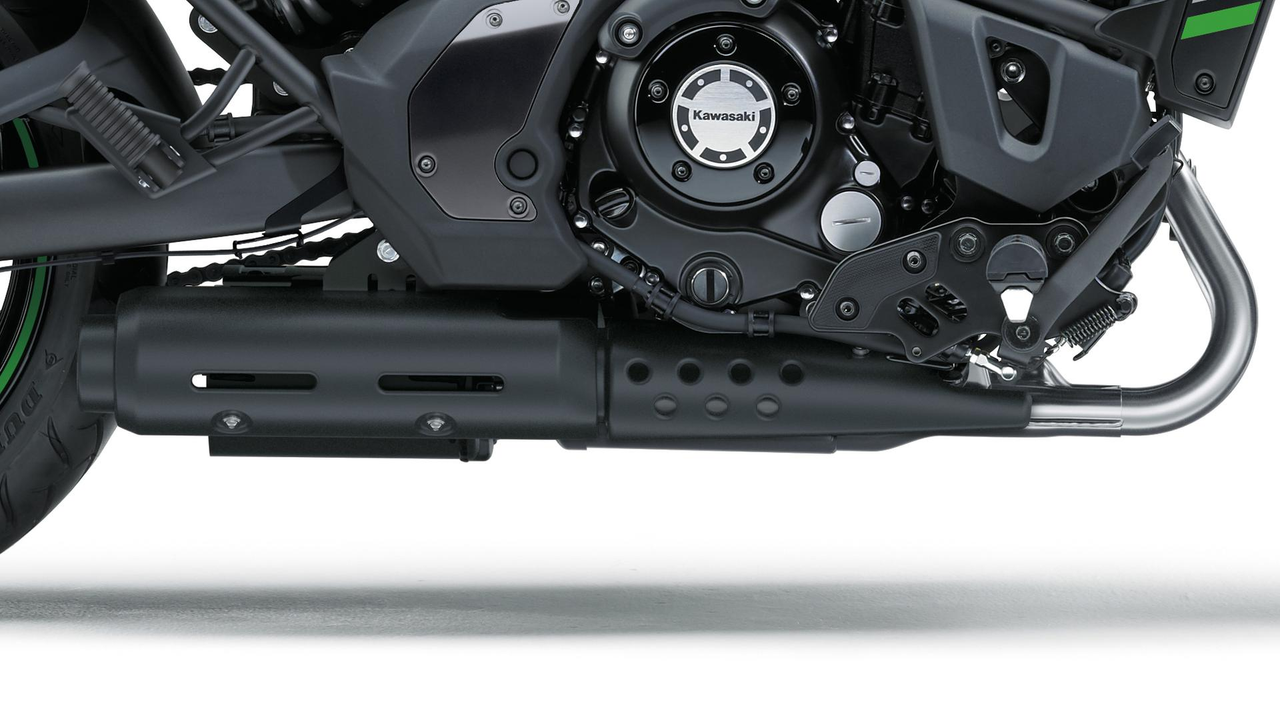

Muffler located under the engine contributes to a low centre of gravity, and is tucked out of the way, making it easier to reach the ground when stopped. The muffler’s design conveys both power and style.
Wheelbase of 1,575 mm was chosen for a balance of light handling and superior riding stability. The same characteristics that make it fun to ride (light handling and relaxed, rider-friendly ergonomics), also make the Vulcan S ideal for new riders.

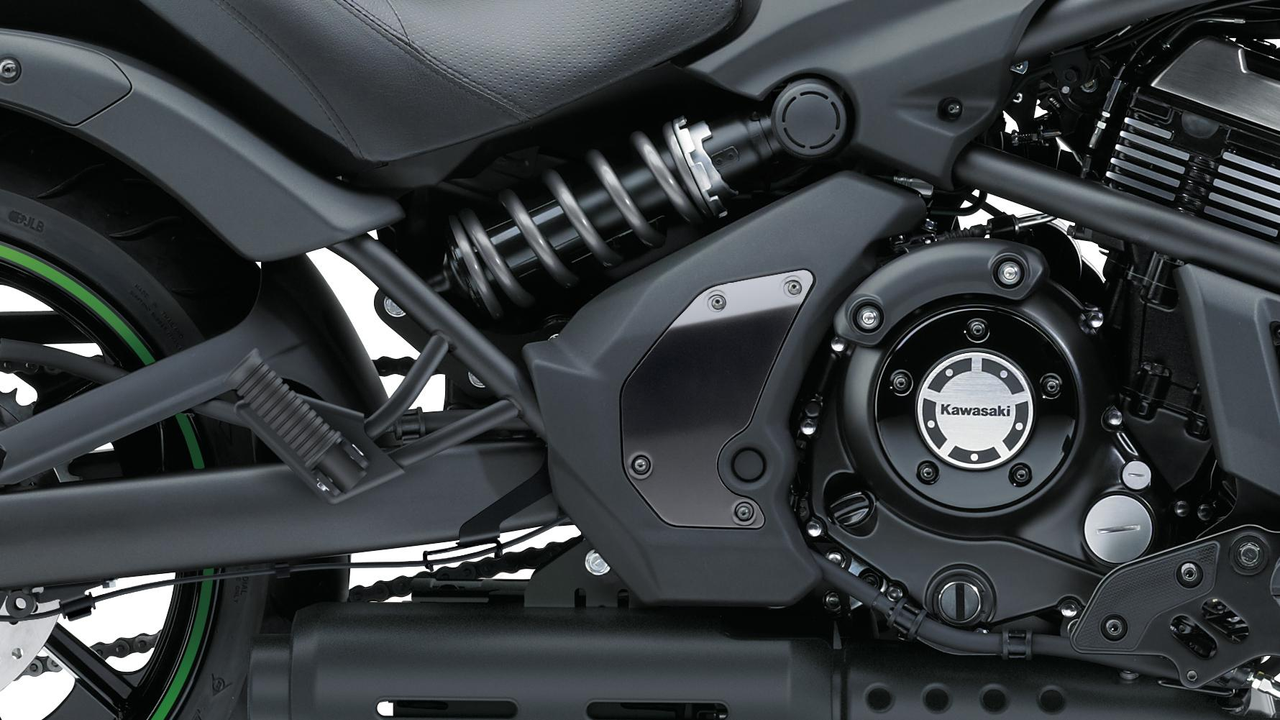

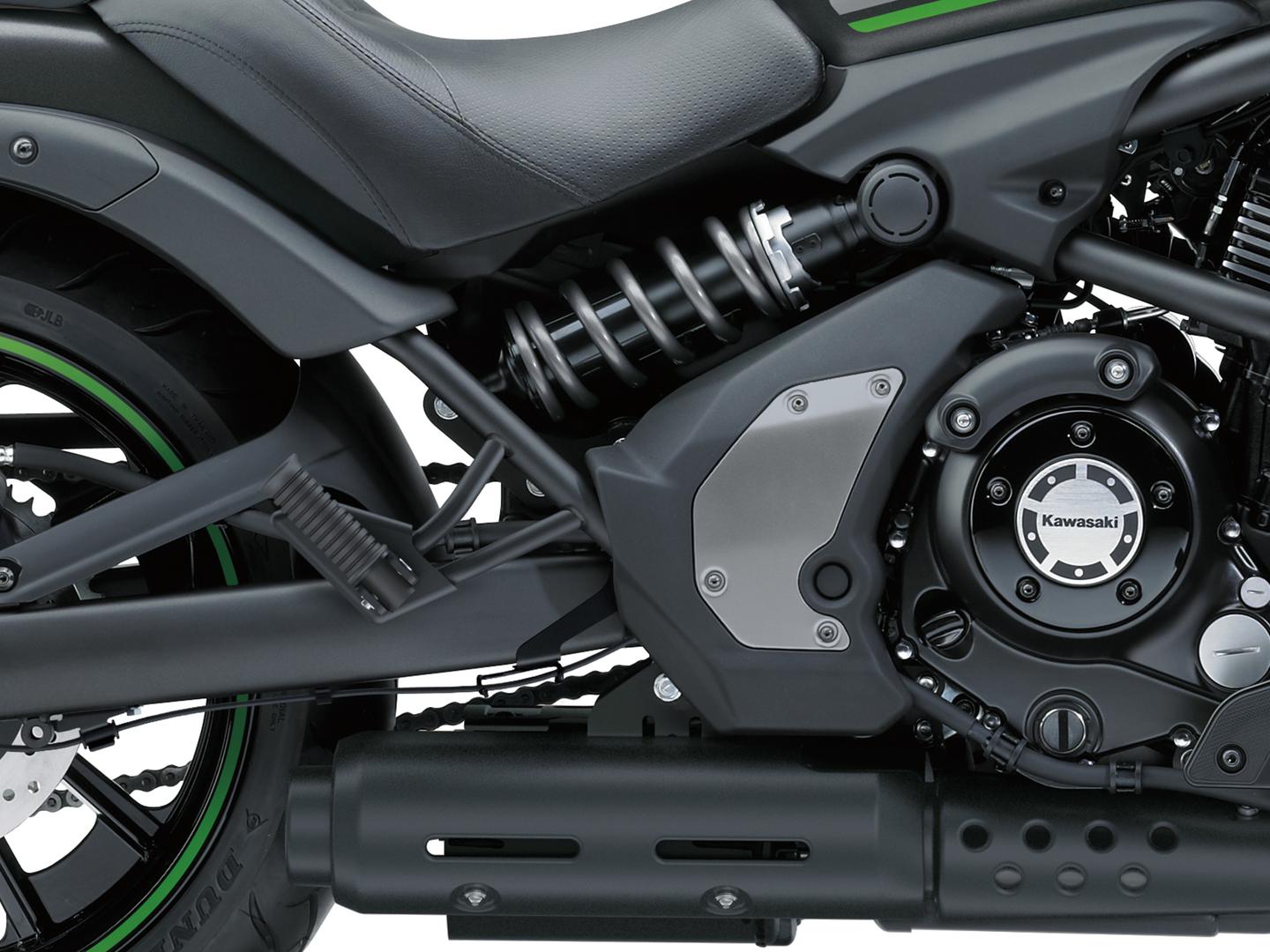

Offset laydown single-shock rear suspension is equipped with linkage to enable a longer stroke for increased ride comfort. The rear suspension arrangement also contributes to the bike’s compact design, freeing up space for a large-volume silencer under the engine. Rear shock features adjustable preload, with 7 positions to suit rider size and payload.
The design of the frame, rear suspension and swingarm create an integrated line running from the front of the bike to the rear hub. A pipe frame of high-tensile steel gives the bike a lightweight appearance. 3D analysis was used to achieve the target rigidity and stress values.

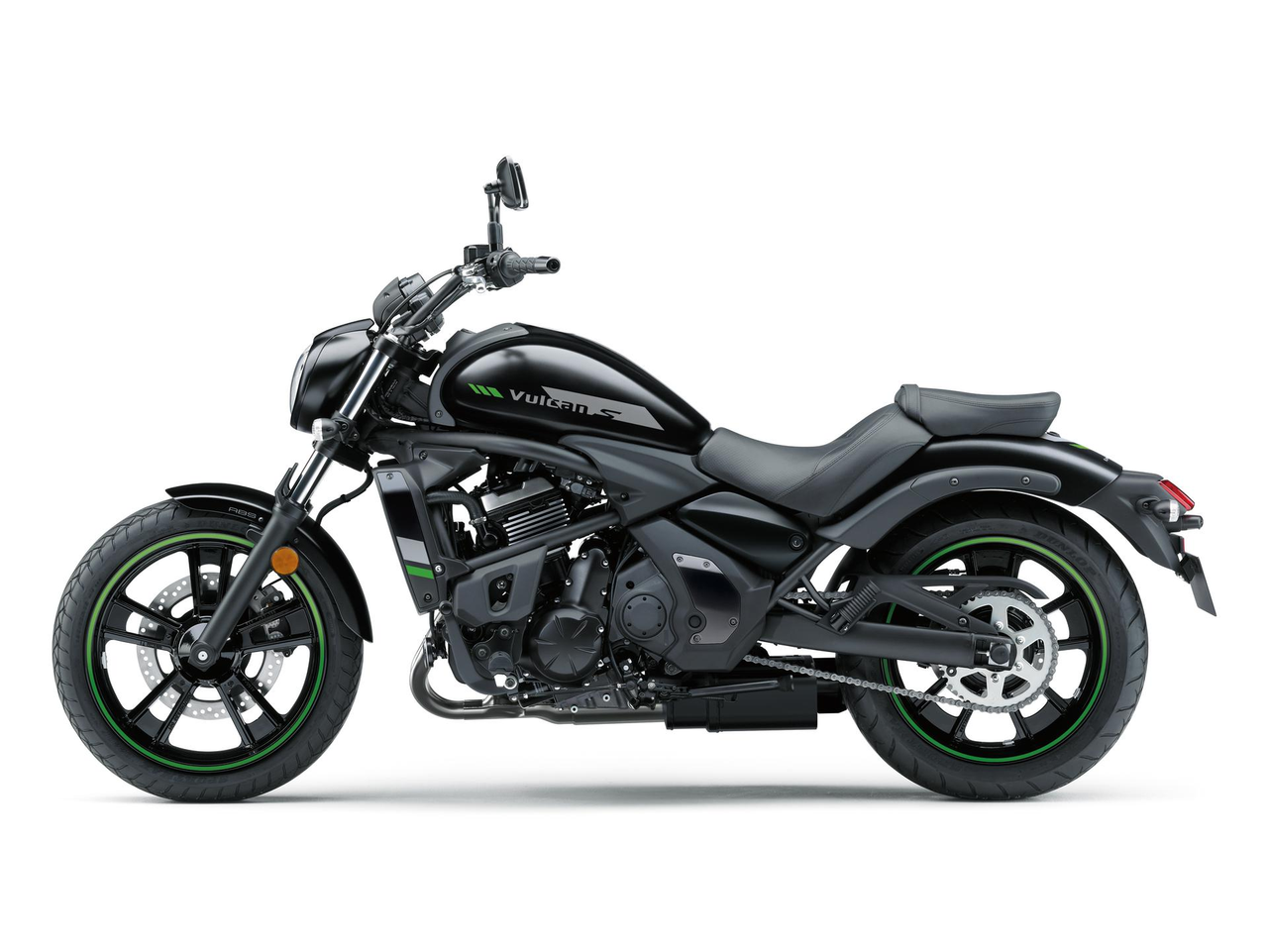

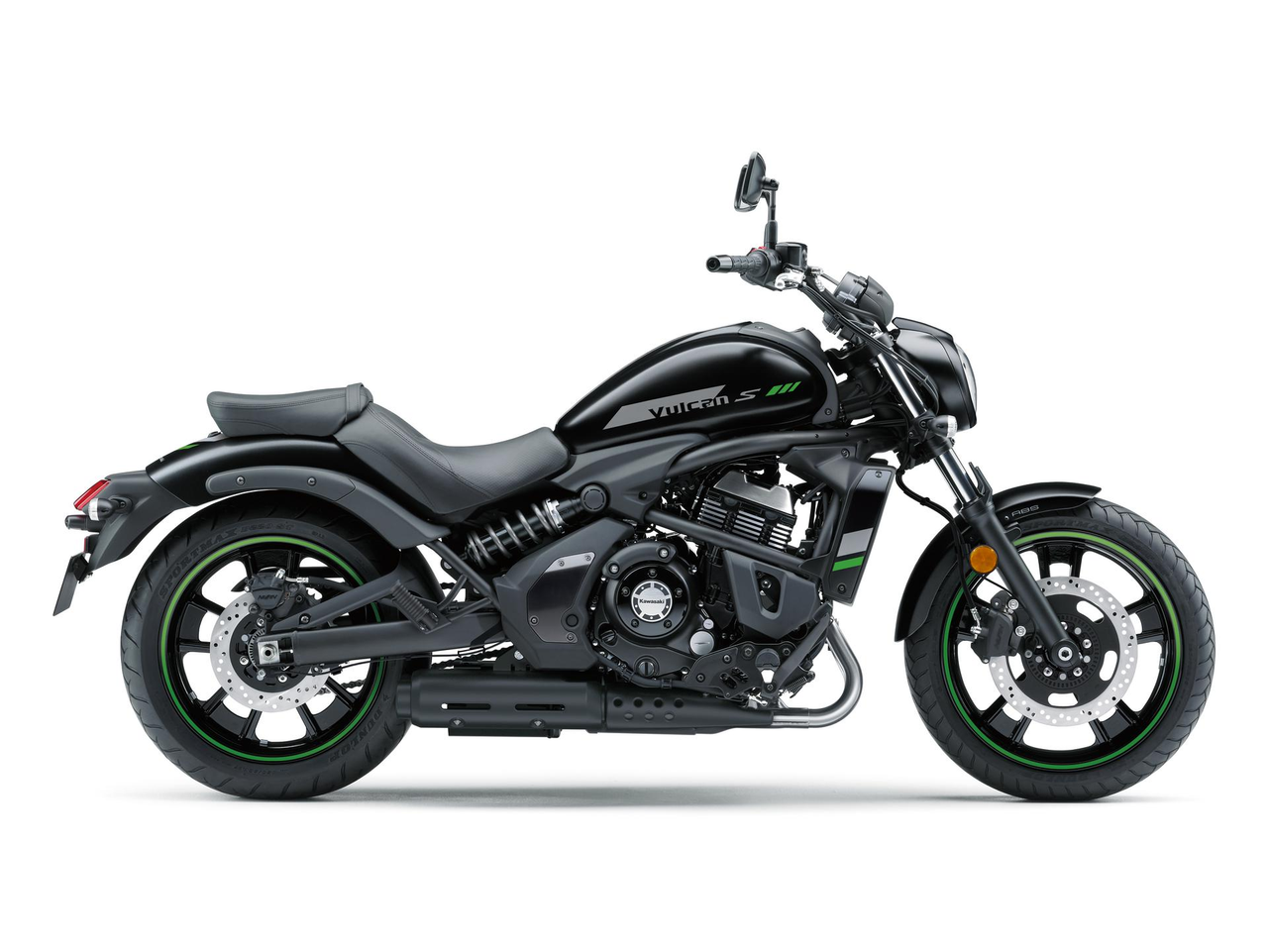

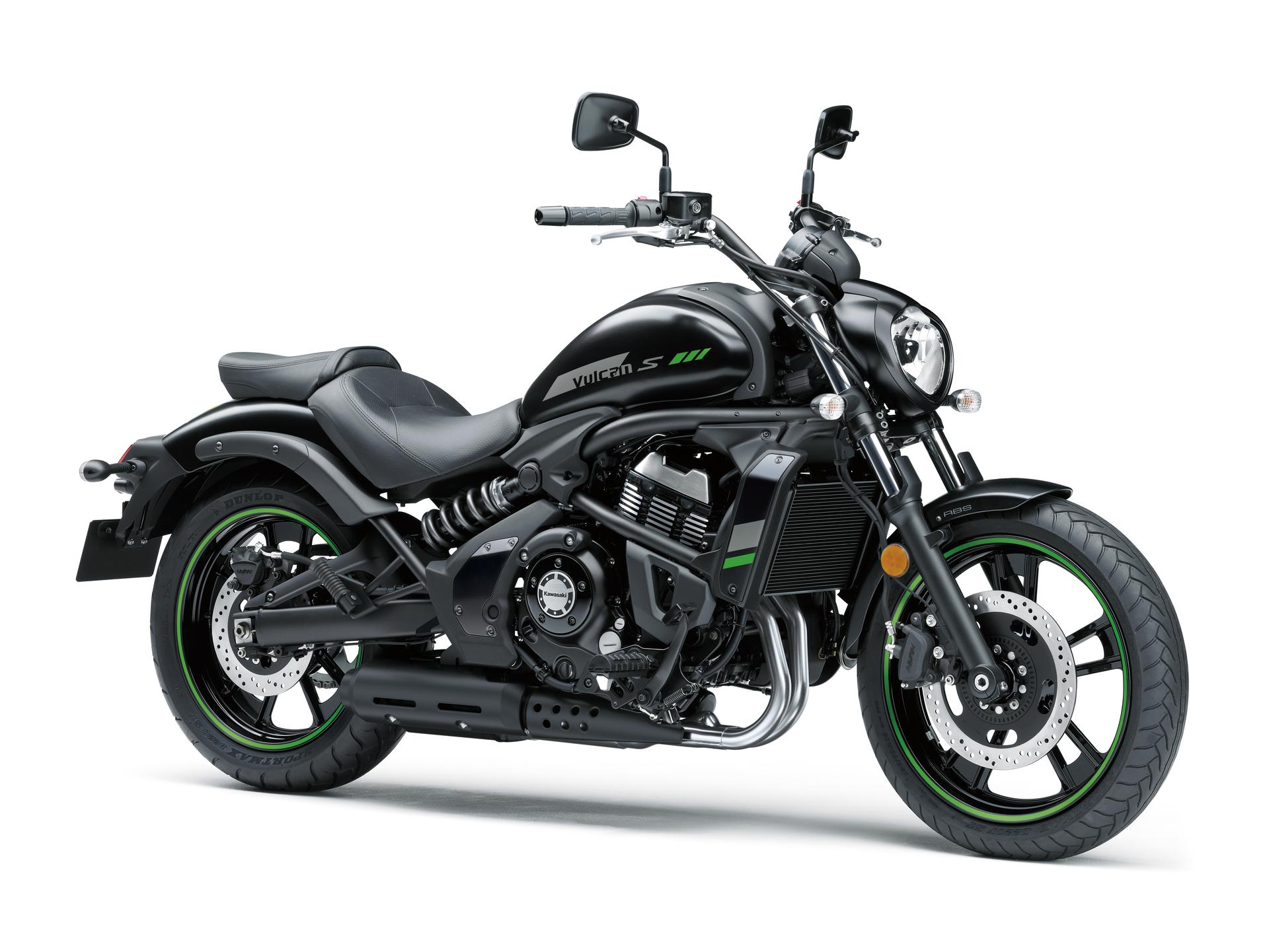

Flowing style with long-and-low stance and modern elements like the original headlamp and cast wheels with five spoke pair design give the Vulcan S very nontraditional cruiser looks.
ERGO-FIT is an interface system that allows a wide range of riders to feel at one with their machine.
ABS (Anti-lock Brake System) ensures stable braking performance by preventing wheel lock during braking.
Dual Throttle Valves offer increased power and greater ease of use care of a second set of ECU-controlled throttle valves.
The Economical Riding Indicator is a mark appearing on the instrument panel to indicate favourable fuel consumption, encouraging fuel efficient riding.
| Engine Type | Liquid-cooled, 4-stroke, parallel twin |
|---|---|
| Compression ratio | 10.8:1 |
| Valve system | DOHC, 8 valves |
| Bore x stroke | 83.0 x 60.0 mm |
| Displacement | 649 cm³ |
| Fuel System | Fuel injection with sub-throttles: 38 mm x 2 |
| Lubrication | Forced lubrication, wet sump |
| Starting system | Electric |
| Ignition | Digital |
| Maximum power | 44.7 kW {61 PS} / 7,500 rpm |
|---|---|
| Maximum torque | 62.4 N•m {6.4 kgf•m} / 6,600 rpm |
| CO2 emission | 102 g/km |
| Fuel consumption | 4.4 l/100km |
| CO2 emission 35 kW kit | 4.5 g/km |
| Fuel consumption 35 kW kit | 104.0 l/100km |
| Transmission | 6-speed, return shift |
| Clutch | Wet, multi disc |
| Primary reduction ratio | 2.095 (88 / 42) |
| Gear ratios 1st | 2.438 (39 / 16) |
| Gear ratios 2nd | 1.714 (36 / 21) |
| Gear ratios 3rd | 1.333 (32 / 24) |
| Gear ratios 4th | 1.111 (30 / 27) |
| Gear ratios 5th | 0.966 (28 / 29) |
| Gear ratios 6th | 0.852 (23 / 27) |
| Final drive | Sealed chain |
| Final reduction ratio | 3.067 (46 / 15) |
| Frame type | Tubular diamond, high-tensile steel |
|---|---|
| Trail | 120 mm |
| Wheel travel front | 130 mm |
| Wheel travel rear | 80 mm |
| Tyre, front | 120/70 R18 M/C 59H |
| Tyre, rear | 160/60 R17 M/C 69H |
| L x W x H | 2,310 x 880 x 1,100 mm |
| Steering angle L R | 35° / 35° |
| Wheel base | 1,575 mm |
| Ground clearance | 130 mm |
| Fuel capacity | 14.0 litres |
| Seat height | 705 mm |
| Curb mass | 229 kg |
| Front brake type | Single disc |
|---|---|
| Front brake diameter | Ø 300 mm |
| Front brake caliper type | Dual-piston |
| Rear brake type | Single disc |
| Rear brake diameter | Ø 250 mm |
| Rear brake caliper type | Single-piston |
| Front suspension type | Telescopic fork |
| Front suspension diameter | Ø 41 mm |
| Rear suspension type | Laydown offset single-shock, linkage equipped, and 7-way spring preload adjustability |
Chrome finish trim parts to change the style of the Vulcan S 2015-2020
1- Cover for muffler body (Heat shield) 999940578
2- Cover for muffler (Rear ring) 999940579
3- Clutch Cover Plate (Mark, clutch plating) 999940580
Sporty tank stripe kit for your Kawasaki Vulcan S
Kawasaki triple stripe design vinyl decal is made with high-grade adhesive and finished with clear coat for a sleek, durable upgrade.
Anthracite color tank stripe kit (For black bike), Silver color tank stripe kit (For non black bike)
Optional chrome handlebar for Vulcan S.
Available in standard shape or Easy Reach.
Easy Reach handlebar brings the handgrips 36mm closer to the rider.
Passenger backrest (Kawasaki Quick Release)
Padded backrest provides passenger comfort and allows easy installation or removal once installed. KQR™ mounting system is key locked for added security. 20cm (8”) tall from seat surface. Designed to mount optional Luggage Rack (sold separately)
Requires KQR™ bracket kit for fitment (sold separately).
(Anthracite/Black finish)
(Can only be combined with saddlebag kit with KQR brackets)
Passenger ba
Luggage Rack Chrome (Option for KQR backrest)
Read More
Tie rod, shorter, 180mm. To mount left Vulcan S adjustable footpeg in the rearward position (Easy Reach)
Read More
12 Volt DC power socket with bracket and cap for tailor made fitment to the Vulcan S instrument panel. Requires additional relay.
Read More
Durable powder coated steel luggage rack that replaces the passenger seat.
Designed to enhance usability and styling. Securely mount this luggage rack to your rear fender for extra cargo capacity. Developed by Kawasaki to integrate with the clean, modern lines of your Vulcan S
Length = 35cm, width = 20cm. Anthracite/Black or Chrome finish.
Important Notes: Not suitable for passenger seating.
Durable powder coated steel luggage rack that replaces the passenger seat.
Designed to enhance usability and styling. Securely mount this luggage rack to your rear fender for extra cargo capacity. Developed by Kawasaki to integrate with the clean, modern lines of your Vulcan S
Length = 35cm, width = 20cm. Anthracite/Black or Chrome finish.
Important Notes: Not suitable for passenger seating.
The universal GPS package allows various installation options without using additional accessories. Navigation system can be mounted in the bag, or directly to the system without bag. Mounting on mirror or handlebar (22,28-25,4mm), or to other mounting points with ball M6 or M8 and rotatable RAM-Arm. Splash proof navigation bag size M protects your GPS from the weather.
Included:
Fixed padded backrest provides passenger comfort. Black steel construction rises 20cm from seat surface. Designed to fit optional luggage rack (sold separately) (Can only be combined with saddlebag kit with fixed brackets)
Read More
Black fatbar-style handlebar with ends that are positioned more inward. Additionally this Easy-Reach handlebar effectively comes ± 36mm closer to the rider. Including cable ties and bolts.
Read More
Metal bracket with chrome finish LED spotlamps with low power consumption. For increased visibility. Bar available in black.
(Requires additional relay)
Passenger backrest (Kawasaki Quick Release)
Padded backrest provides passenger comfort and allows easy installation or removal once installed. KQR™ mounting system is key locked for added security. 20cm (8”) tall from seat surface. Designed to mount optional Luggage Rack (sold separately)
Requires KQR™ bracket kit for fitment (sold separately).
(Anthracite/Black finish)
(Can only be combined with saddlebag kit with KQR brackets)
Passenger ba
Rugged, water-resistant nylon tank bag with reinforced foam body and lid to hold shape even when empty. Expandable feature adds 7cm of storage capacity. Clear window tray (13x10x4cm) for transponder, coins, etc. Dual outlet ports. Reflective piping,
front hook, magnetic skirt and rear strap. Non-scratch rubberized coating to protect paint finish. Power/drink tube port at top of bag for direct access to electronic devices, hydration systems, etc. Including rain cover.
Volume 18-20 Litre
ERGO-FIT™ Extended Reach
(Suggested for riders taller than 183cm)
Adjustable factory components and Ergo-Fit extended reach accessories give you comfort and confidence with more room to stretch out and enjoy your ride.
Step1: Ergo-Fit 3 position footpegs can be adjusted 25mm forward with longer accessory tie rod, for more legroom.
Step2: Ergo-Fit Original handlebar levers (brake&clutch) can be positioned farther away from the body for riders with larger hands.
Durable black powder coated steel luggage rack mounts to your fixed passenger backrest. Designed by Kawasaki to enhance your Vulcan S motorcycle styling while providing extra space for whatever you take with you on the road.
All required brackets and hardware included. 20cm (8") long and 23cm (9") wide.
Passenger luggage rack kit consists of 2 components:
1- Backrest kit (fixed)
2- Luggage rack
Arrow matt black exhaust system for Vulcan S. Full system made of stainless steel with catalyst and carbon endcap. This system is lighter compared to the stock exhaust system and gives a deep sporty sound. This exhaust system is homologated according to EU regulations (emissions and noise) and has ECE type-approval. (Euro 5)
Rear Bag 18-21L (Soft Topcase). Rugged, water-resistant nylon construction with reinforced foam body and lid.
Replaces rear saddle and mounts to rear fender side bolts using custom quad side straps and steel center bracket with non-scratch rubberized coating to help protect paint finish
Expandable feature adds 7cm of vertical storage capacity (18-21 liters). Reflective piping for night visibility. Logo on lid. This bag replaces the passenger seat so no passenger seating is possible.
Developed in conjuction wih SP Connect the kit consists of a Clutch Mount, Anti-vibration module and a Universal Phone Clamp. Suits mosts mobile phones; Simply pull out the crown, screw it tight, and then push the crown back in to lock your phone in place. While remaining fully operable, your phone can now be attached to or detached from the mount in seconds.
Soft polypropylene motorcycle cover, to protect your motorcycle from dust and other small particles. The breathable membrane allows the continuous circulation of air. Features a belly strap as well as an elastic band to ensure the cover stays in place. Size M, fits for example: Ninja 300, ER-6N, ZX-6, Z800, Z900, Z1000, W800, Z1000SX, ZX-10R, Z900RS, H2 & H2R. Size L, fits for example: Versys 650+panniers (w/o Top case), Versys 1000+panniers (w/o Top case), Vulcan S, ZZR14, J300, Z1000SX + panniers, Versys-X 300, J125/J300.
Read More
Whether you want to park your bike in a pitbox or in your garage, let your precious machine rest in style on this Kawasaki Garage Mat. The mat meets new FIM environmental codes and offers a high level of absorption and dust-control features.
