The next level Supernaked has arrived. The new Z H2 SE is boosted by unique Kawasaki Supercharger technology featuring new dedicated features delivering unmatched performance : New Showa electronic suspension with Skyhook technology, Brembo brake calipers from the H2 series, plus new colour and graphics, combine to boost your emotions beyond limits. SUPERCHARGE !

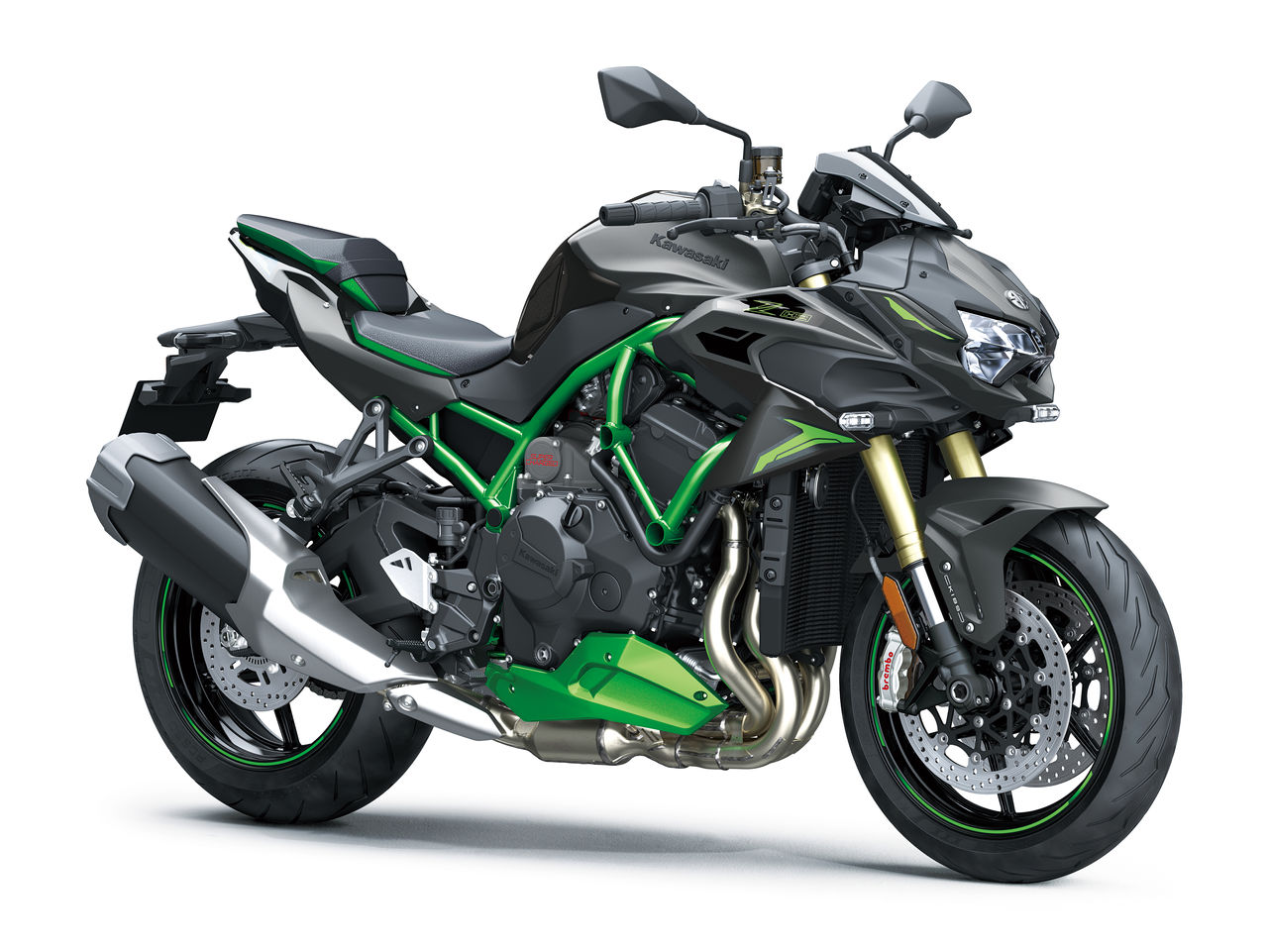

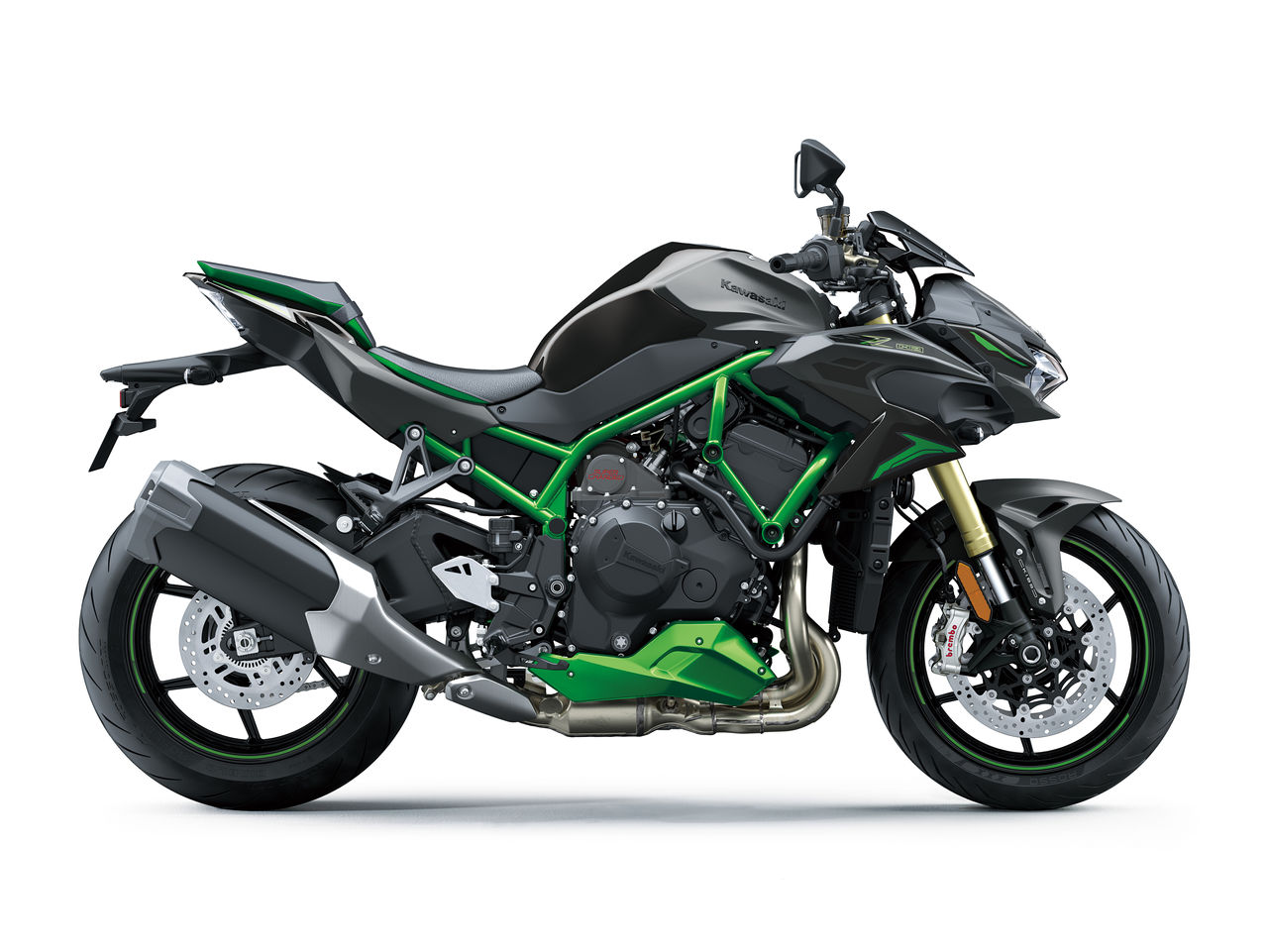

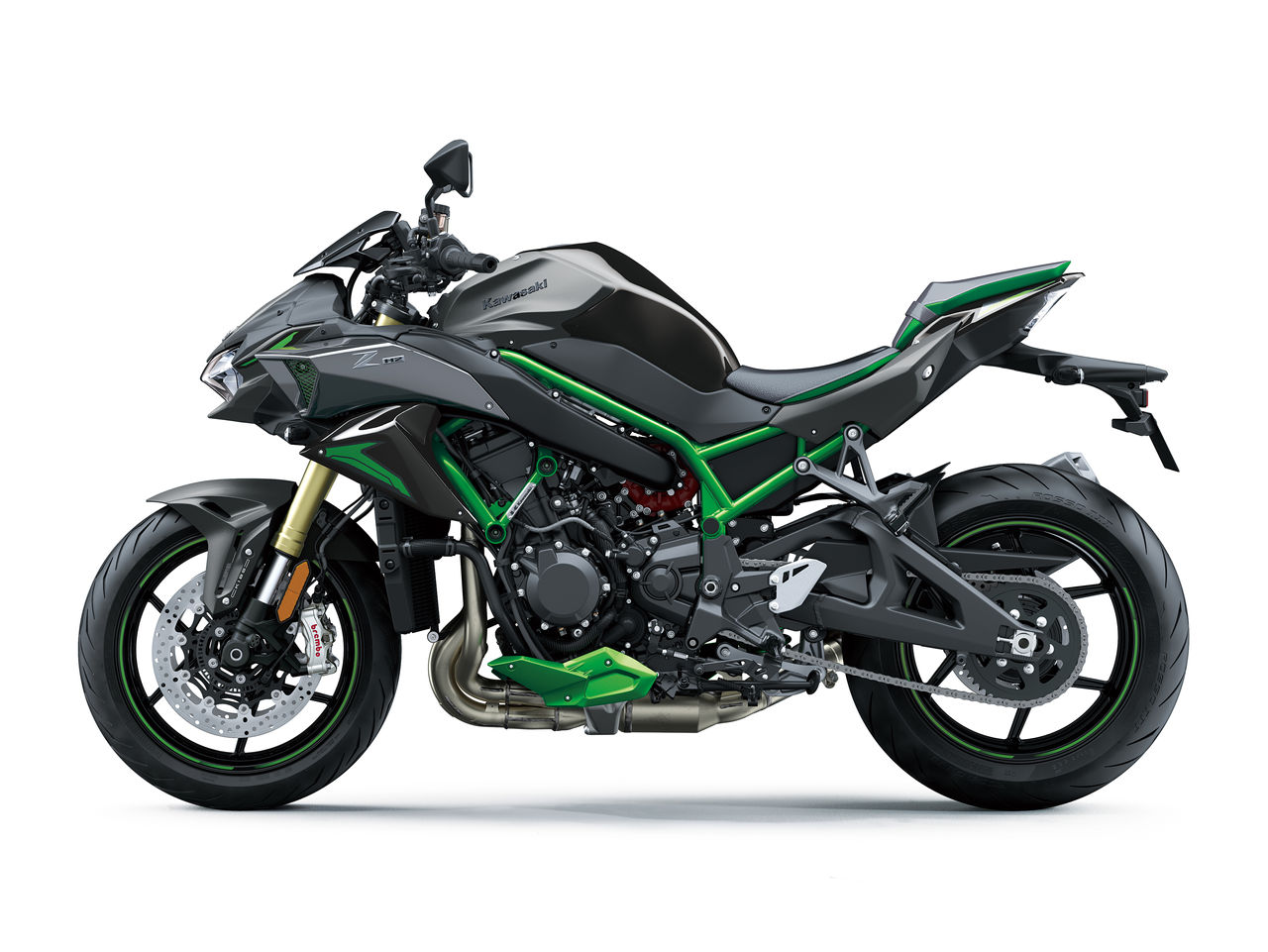

Z H2 SE
Metallic Matte Graphenesteel Gray / Metallic Matte Carbon Gray
Specifications
Engine
Engine type | Liquid-cooled, 4-stroke, in-line four with Supercharger |
Compression ratio | 11.2:1 |
Valve system | DOHC, 16 valves |
Bore x stroke | 76.0 x 55.0 mm |
Displacement | 998 cm³ |
Fuel system | Fuel injection: 40 mm x 4 |
Lubrication | Forced lubrication, wet sump |
Starting system | Electric |
Ignition system | Digital |
Performance & Transmission
Maximum power | 147.1 kW {200 PS} / 11,000 rpm |
Maximum torque | 137.0 N•m {14.0 kgf•m} / 8,500 rpm |
CO2 emission | 134 g/km |
Fuel consumption | 6.0 l/100km |
Transmission | 6-speed, return shift |
Clutch | Wet, multi disc |
Primary reduction ratio | 1.480 (74/50) |
Gear ratios 1st | 3.077 (40/13) |
Gear ratios 2nd | 2.471 (42/17) |
Gear ratios 3rd | 2.045 (45/22) |
Gear ratios 4th | 1.727 (38/22) |
Gear ratios 5th | 1.524 (32/21) |
Gear ratios 6th | 1.348 (31/23) |
Final drive | Sealed chain |
Final reduction ratio | 2.556 (46/18) |
Frame & Dimensions
Frame type | Trellis, high-tensile steel |
Trail | 104 mm |
Wheel travel front | 120 mm |
Wheel travel rear | 134 mm |
Tyre, front | 120/70 ZR17 M/C (58W) |
Tyre, rear | 190/55 ZR17 M/C (75W) |
L x W x H | 2,085 x 815 x 1,130 mm |
Steering angle L/R | 29° / 29° |
Wheel base | 1,455 mm |
Ground clearance | 140 mm |
Fuel capacity | 19.0 litres |
Seat height | 830 mm |
Curb mass* | 240 kg |
| *Curb mass includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
Estimated dry weight** | 220 kg |
| **Estimated Dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
Brakes & Suspension
Front brake type | Dual semi-floating discs |
Front brake diameter | Ø 320 mm |
Front brake caliper type | Brembo radial-mount, Stylema monobloc, opposed 4-piston |
Rear brake type | Single disc |
Rear brake diameter | Ø 260 mm |
Rear brake caliper type | Single-piston |
Front suspension type | Inverted Separate Function fork (SFF-CA) with KECS-controlled compression and rebound damping, manual spring preload adjustability, and top-out springs |
Front suspension diameter | Ø 43 mm |
Rear suspension type | Uni-Trak, BFRC lite gas-charged shock with piggyback reservoir, KECS-controlled compression and rebound damping, manual spring preload adjustability, and top-out spring |
