The Z1100 is the pinnacle of Kawasaki’s unique Sugomi performance and styling philosophy condensed into our largest-displacement supernaked Z model, taking its rightful place as the new leader of Kawasaki's naturally aspirated Z family.
This crouching predator is ready to strike with its torquier 1,099cc engine combined with an impressive suite of advanced rider support technologies appealing to performance-focused and sport-minded riders who are looking to experience the ultimate in excitement and sensory stimulation.

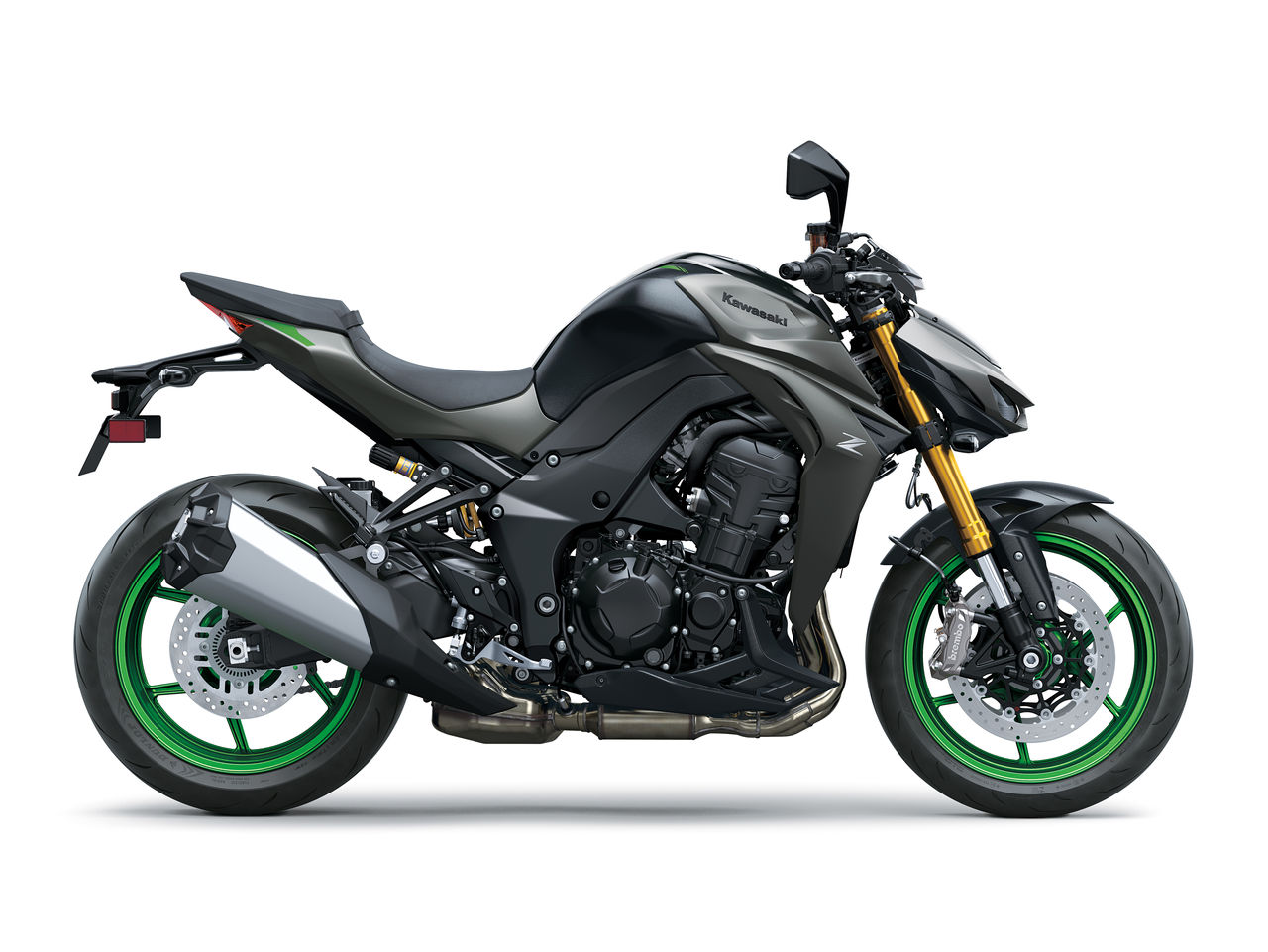

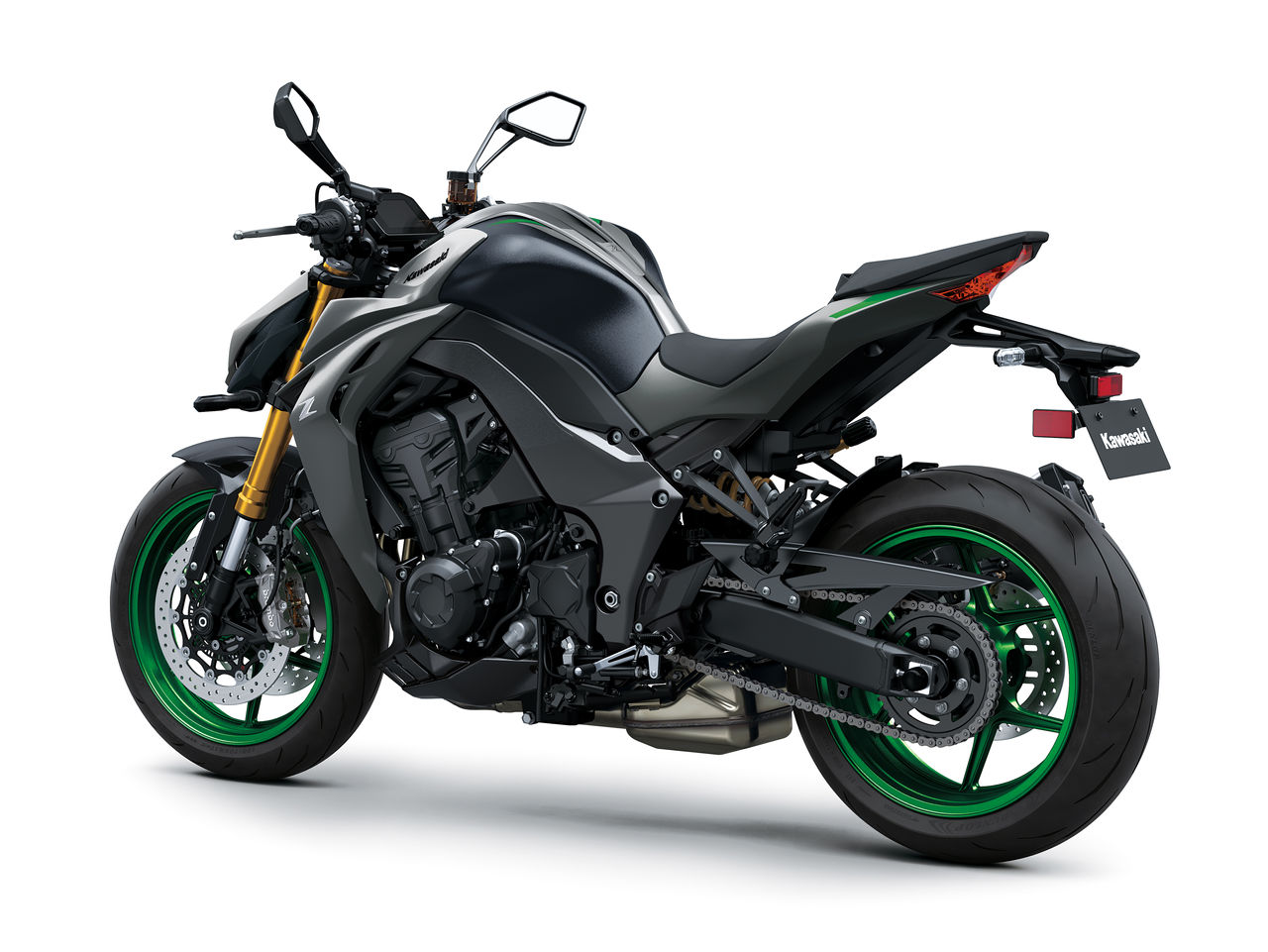

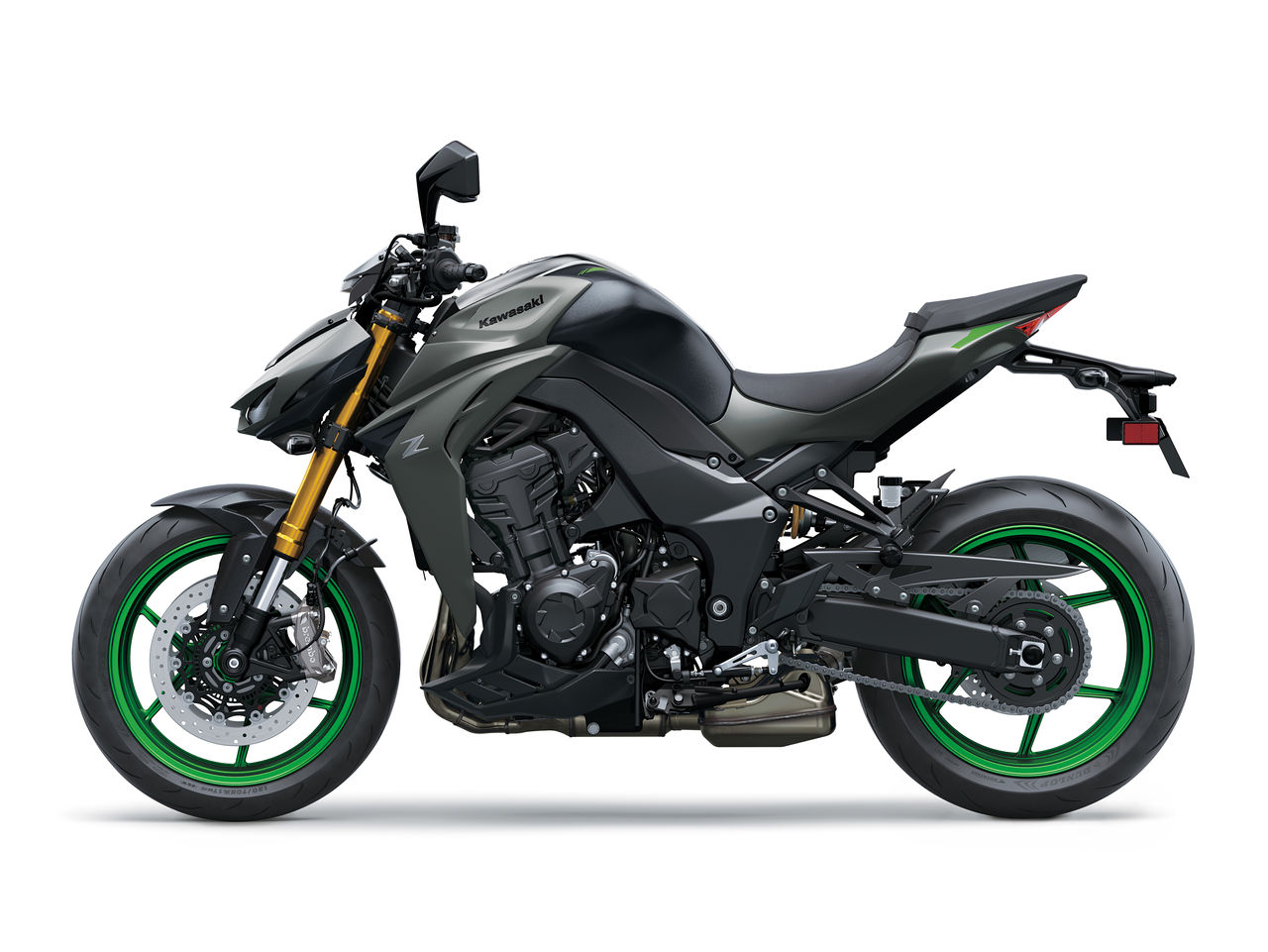

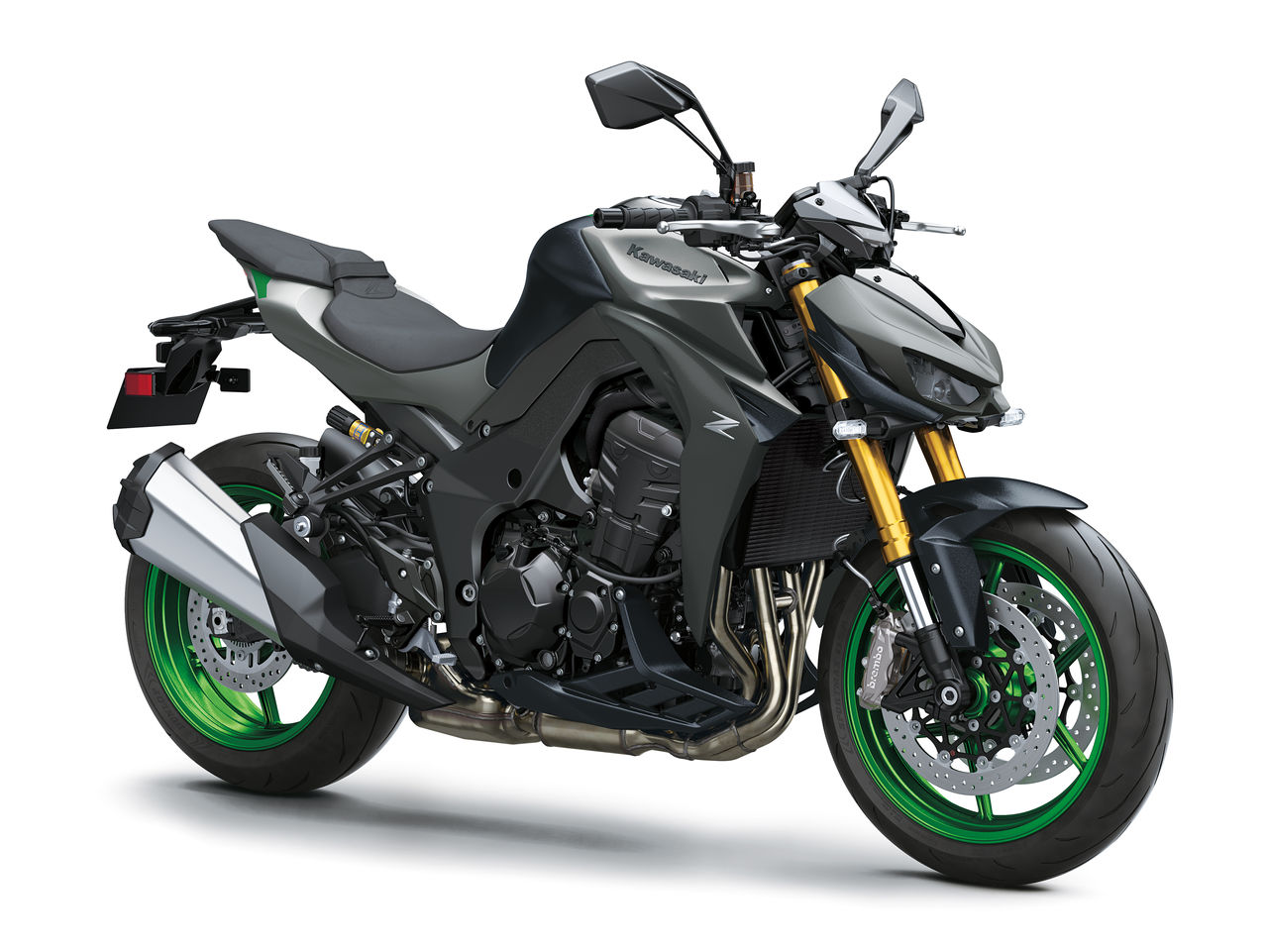

Z1100 SE
Metallic Matte Graphenesteel Gray / Metallic Matte Carbon Gray
Specifications
Engine
Engine type | Liquid-cooled, 4-stroke, in-line four |
Compression ratio | 11.8:1 |
Valve system | DOHC, 16 valves |
Bore x stroke | 77.0 x 59.0 mm |
Displacement | 1,099 cm³ |
Fuel system | Fuel injection: 38 mm x 4 |
Lubrication | Forced lubrication, wet sump |
Starting system | Electric |
Ignition system | Digital |
Performance & Transmission
Maximum power | 100.0 kW {136 PS} / 9,000 rpm |
Maximum torque | 113.0 N•m {11.5 kgf•m} / 7,600 rpm |
CO2 emission | 126 g/km |
Fuel consumption | 5.6 l/100km |
CO2 emission 85 kW kit | 126.0 g/km |
Fuel consumption 85 kW kit | 5.6 l/100km |
Transmission | 6-speed, return shift |
Clutch | Wet, multi disc |
Primary reduction ratio | 1.528 (81/53) |
Gear ratios 1st | 2.600 (39/15) |
Gear ratios 2nd | 1.950 (39/20) |
Gear ratios 3rd | 1.600 (24/15) |
Gear ratios 4th | 1.389 (25/18) |
Gear ratios 5th | 1.217 (28/23) |
Gear ratios 6th | 1.069 (31/29) |
Final drive | Sealed chain |
Final reduction ratio | 2.800 (42/15) |
Frame & Dimensions
Frame type | Twin-tube aluminium |
Trail | 101 mm |
Wheel travel front | 120 mm |
Wheel travel rear | 136 mm |
Tyre, front | 120/70 ZR17 M/C (58W) |
Tyre, rear | 190/50 ZR17 M/C (73W) |
L x W x H | 2,055 x 825 x 1,085 mm |
Steering angle L/R | 29° / 29° |
Wheel base | 1,440 mm |
Ground clearance | 125 mm |
Fuel capacity | 17.0 litres |
Seat height | 815 mm |
Curb mass* | 221 kg |
| *Curb mass includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
Estimated dry weight** | 201 kg |
| **Estimated Dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
Brakes & Suspension
Front brake type | Dual semi-floating Brembo discs |
Front brake diameter | Ø 310 mm |
Front brake caliper type | Brembo radial-mount, M4.32 monobloc, opposed 4-piston |
Rear brake type | Single disc |
Rear brake diameter | Ø 260 mm |
Rear brake caliper type | Single-piston |
Front suspension type | Inverted fork with compression and rebound damping, and spring preload adjustability |
Front suspension diameter | Ø 41 mm |
Rear suspension type | Horizontal Back-link, Öhlins S46 gas-charged rear shock with rebound damping adjustability and remote spring preload adjustability |
