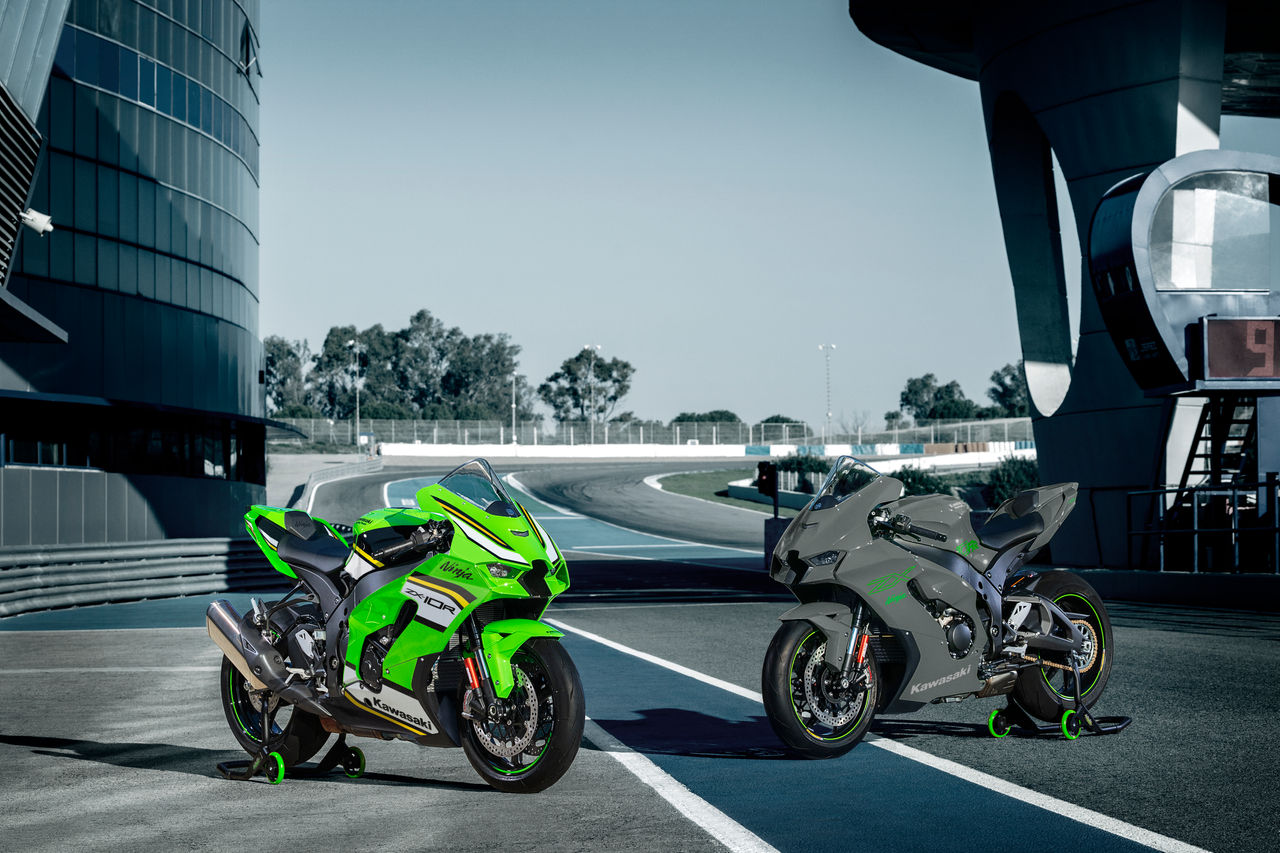

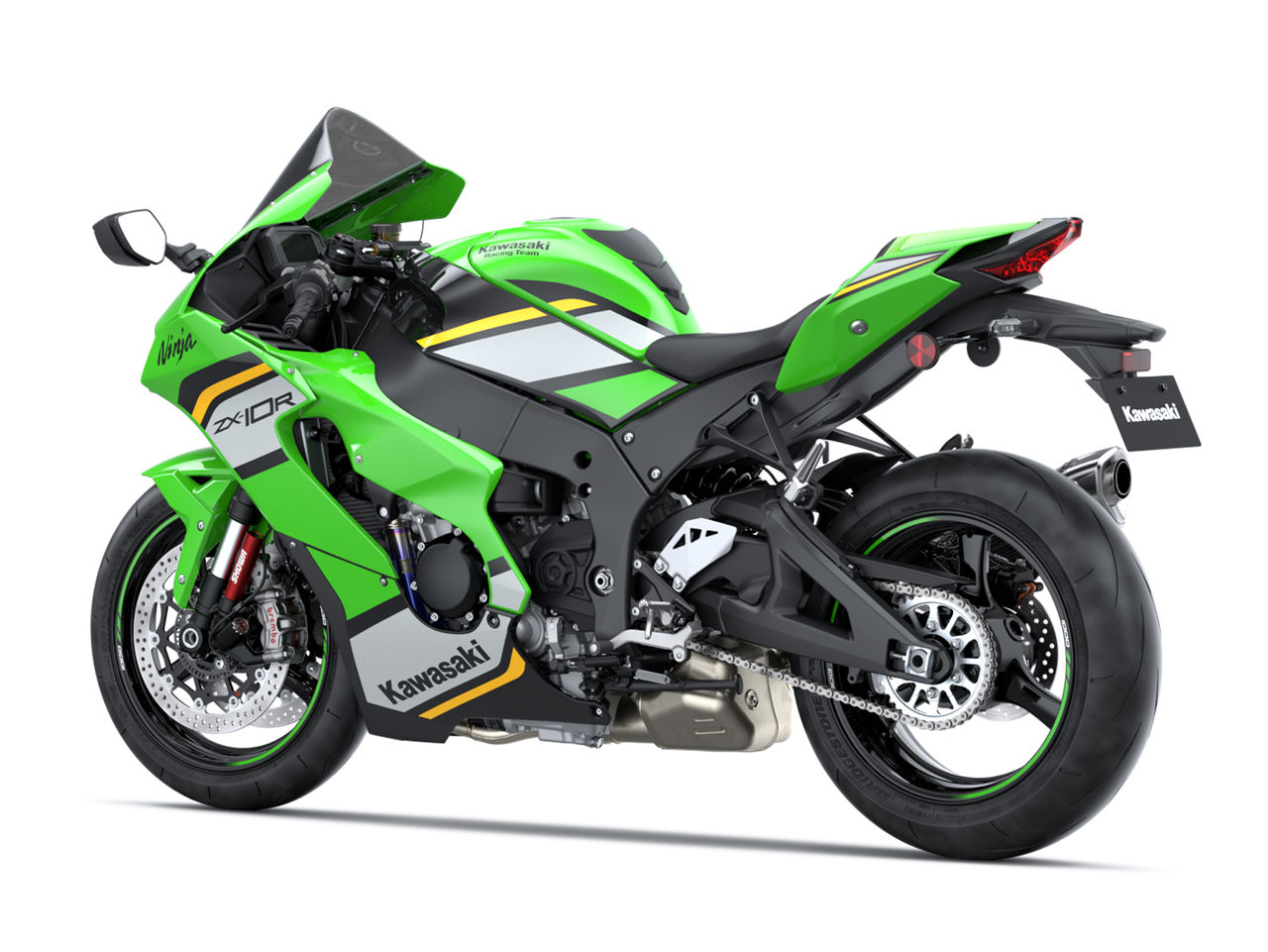

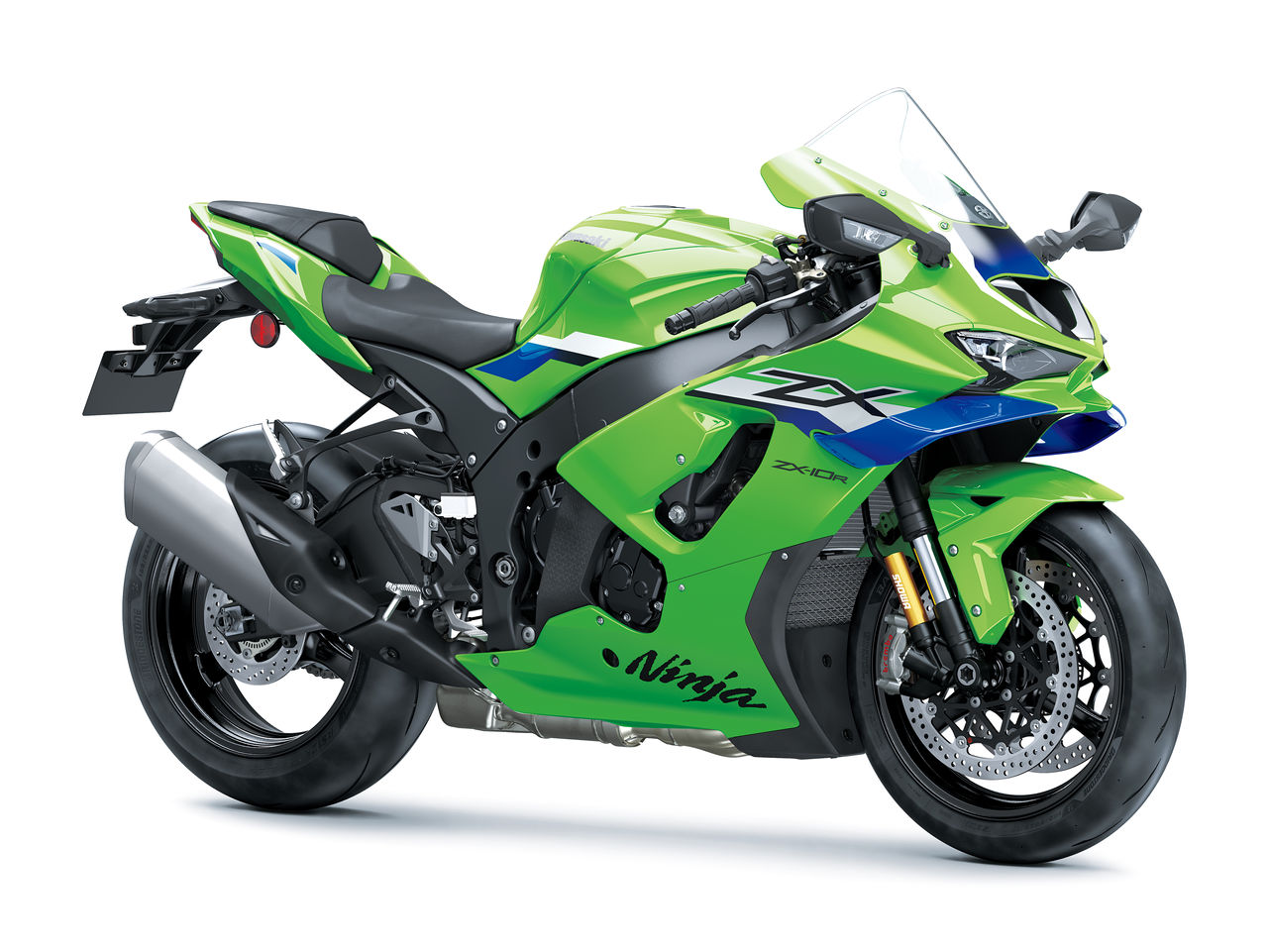

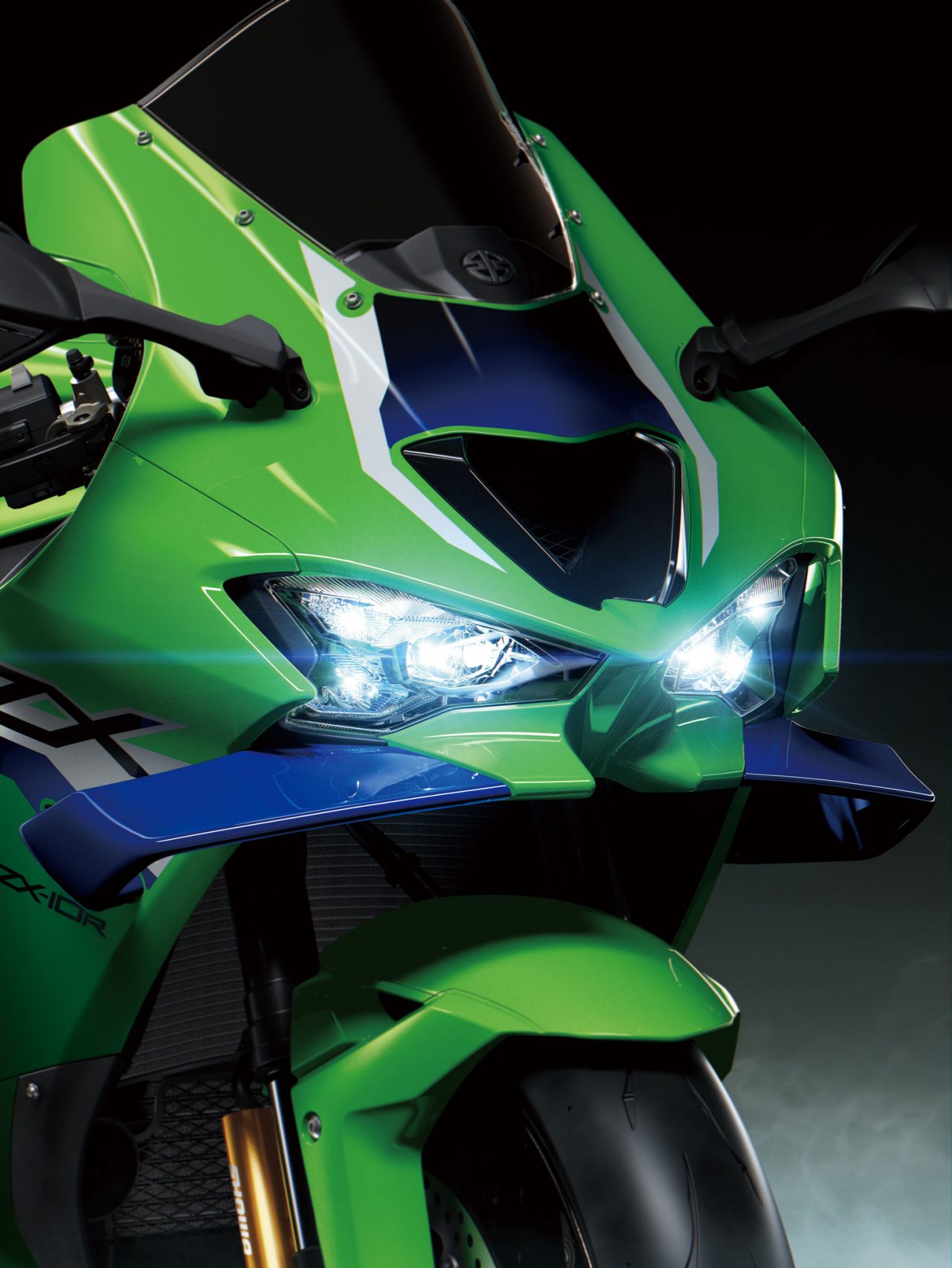

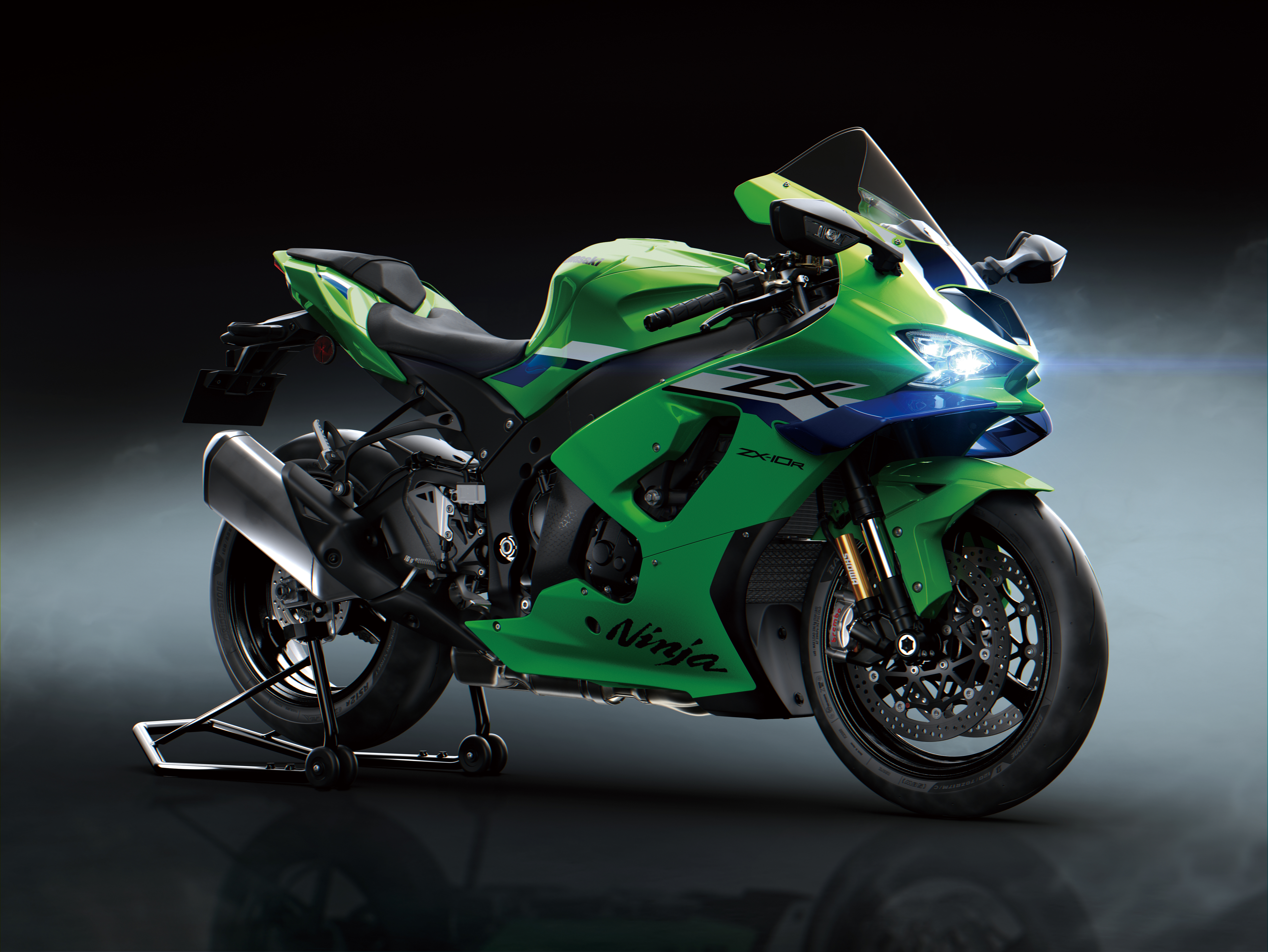

You can beat all opponents, but there is always a challenge you still have to face, the one within yourself. For those like you who rise to any challenge, we have developed the bike that a true champion deserves. The Ninja ZX-10R has what it takes to win: aerodynamic body with integrated winglets, small & light LED headlights, TFT colour instrumentation, and Smartphone connectivity plus updates derived from Kawasaki Racing Team World Superbike expertise. Now that you have the definitive race focused Ninja, Face Yourself.

See all details
DOWNLOAD BROCHURE

This edition contains:

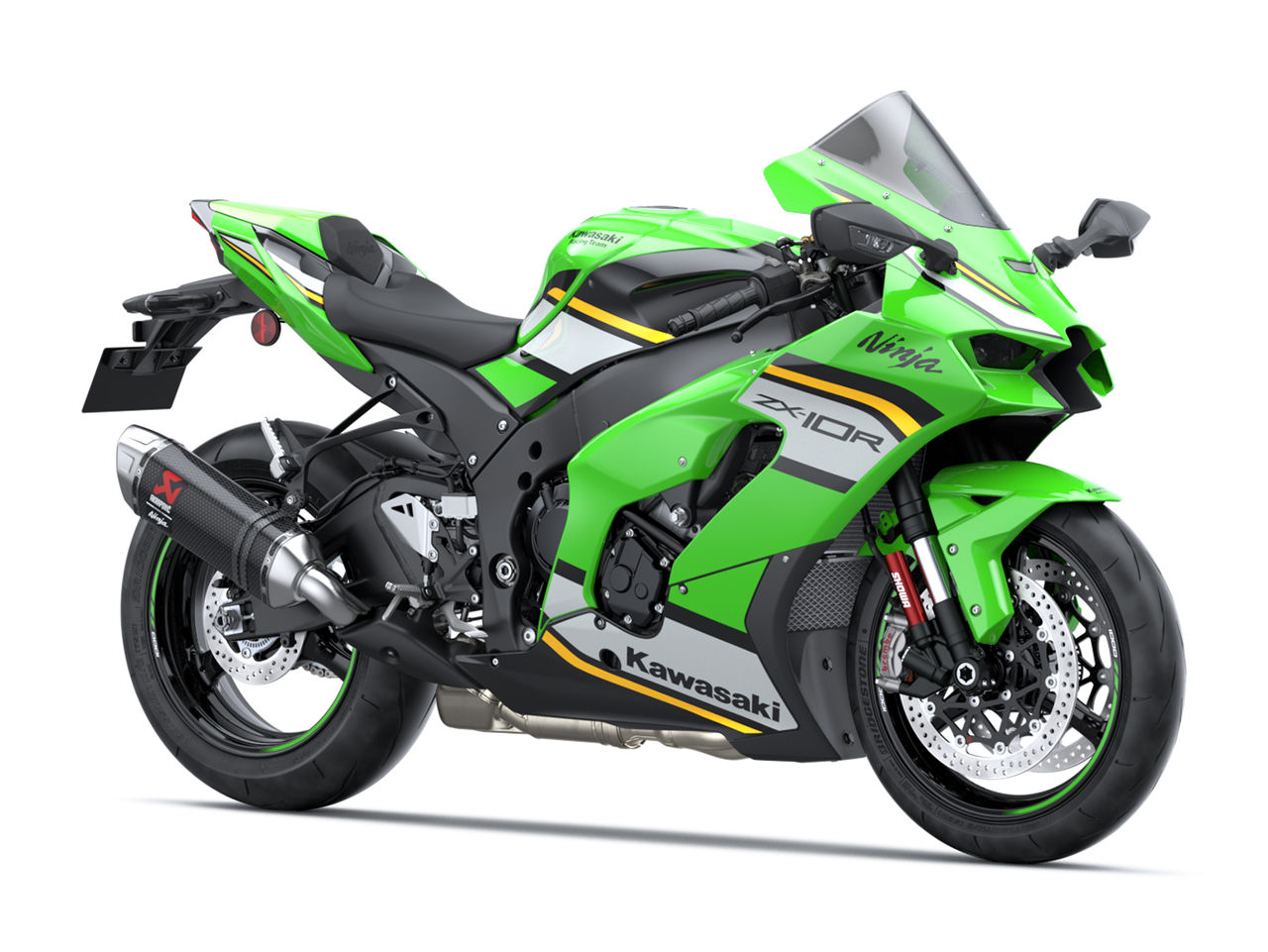

  • Akrapovič Carbon SBK Replica Exhaust
  • Single Seat Cover, Lime Green
  • Smoke Windscreen
  • Kawasaki Tag Keyring (not visible)

Specifications

Engine

Engine type

Liquid-cooled, 4-stroke, in-line four

Compression ratio

13.0:1

Valve system

DOHC, 16 valves

Bore x stroke

76.0 x 55.0 mm

Displacement

998 cm³

Fuel system

Fuel injection with dual injection: 47 mm x 4

Lubrication

Forced lubrication, wet sump with oil cooler

Starting system

Electric

Ignition system

Digital





Performance & Transmission

Maximum power

149.3 kW {203 PS} / 13,200 rpm

Maximum power with RAM Air

156.8 kW {213 PS} / 13,200 rpm

Maximum torque

114.9 N•m {11.7 kgf•m} / 11,400 rpm

CO2 emission

140 g/km

Fuel consumption

6.0 l/100km

CO2 emission 85 kW kit

151 g/km

Fuel consumption 85 kW kit

5.9 l/100km

Transmission

6-speed, return shift, cassette

Clutch

Wet, multi disc

Primary reduction ratio

1.681 (79/47)

Gear ratios 1st

2.600 (39/15)

Gear ratios 2nd

2.158 (41/19)

Gear ratios 3rd

1.882 (32/17)

Gear ratios 4th

1.650 (33/20)

Gear ratios 5th

1.476 (31/21)

Gear ratios 6th

1.304 (30/23)

Final drive

Sealed chain

Final reduction ratio

2.412 (41/17)





Frame & Dimensions

Frame type

Twin spar, cast aluminium

Trail

105 mm

Wheel travel front

120 mm

Wheel travel rear

115 mm

Tyre, front

120/70 ZR17 M/C (58W)

Tyre, rear

190/55 ZR17 M/C (75W)

L x W x H

2,085 x 750 x 1,185 mm

Steering angle L R

27° / 27°

Wheel base

1,450 mm

Ground clearance

135 mm

Fuel capacity

17.0 litres

Seat height

835 mm

Curb mass

207 kg





Brakes & Suspension

Front brake type

Dual semi-floating Brembo discs

Front brake diameter

Ø 330 mm

Front brake caliper type

Brembo radial-mount, M50 monobloc, opposed 4-piston

Rear brake type

Single disc

Rear brake diameter

Ø 220 mm

Rear brake caliper type

Single-piston

Front suspension type

Inverted Balance Free fork with external compression chamber, compression and rebound damping, spring preload adjustability, and top-out springs

Front suspension diameter

Ø 43 mm

Rear suspension type

Horizontal Back-link, BFRC lite gas-charged shock with piggyback reservoir, compression and rebound damping, spring preload adjustability, and top-out spring
