Meet the KLE500 adventure motorcycle, built to discover new horizons.
Its rally-style design is a prime example of functional beauty both on and off pavement.
With a torquey, fuel-injected parallel twin engine offering confidence-inspiring touring comfort, getting to the dirt is just part of the fun.
If you’re a commuter looking for an adventure motorcycle with civilized road manners or an off-roader looking for more comfort while retaining plenty of off-road capability, this is your invitation to genuine adventure.

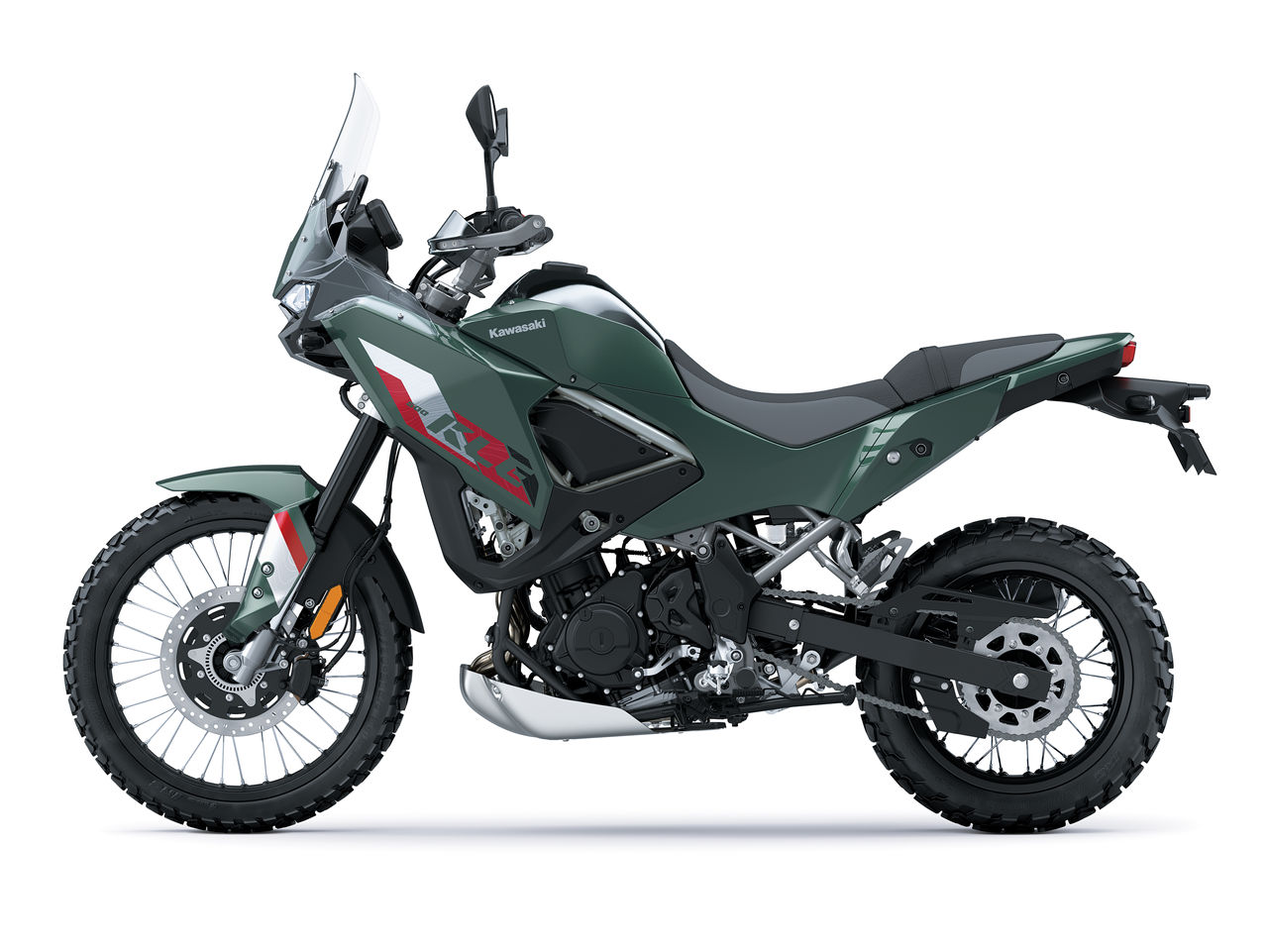

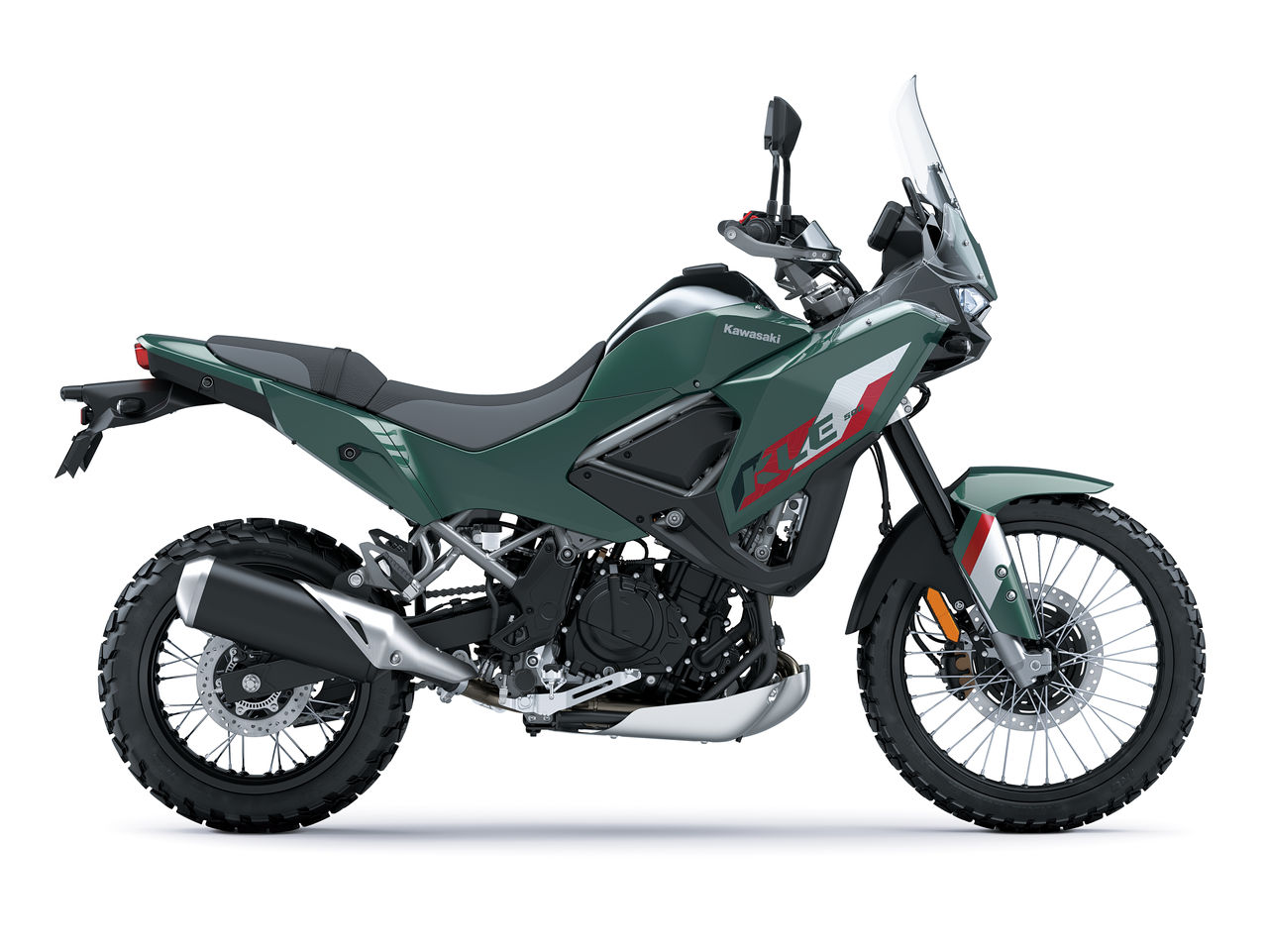

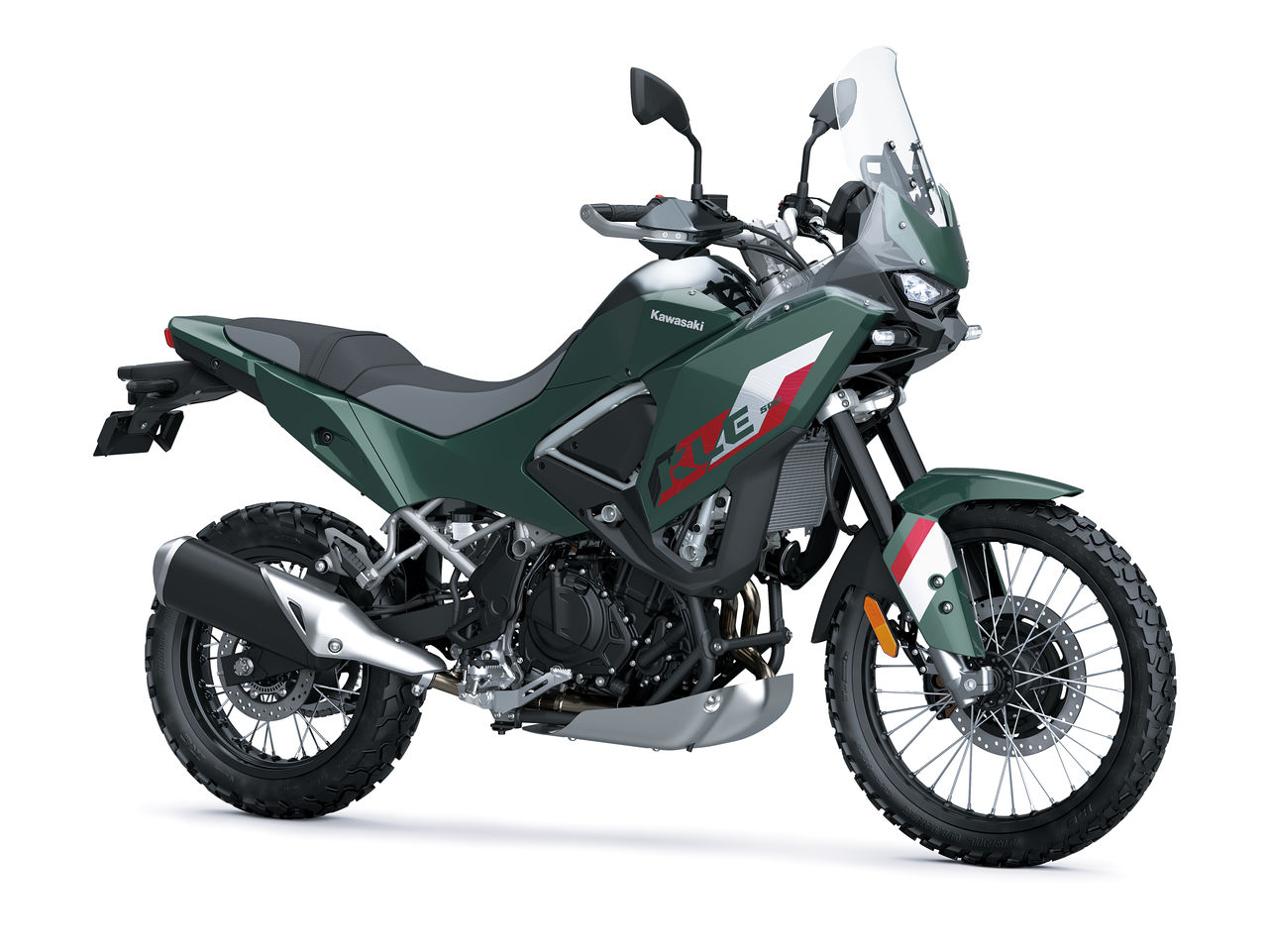

KLE500 SE
Accessorized
Metallic Bluish Green
This vehicle is accessorized with:
- Akrapovic Rally Exhaust (KLE500)
- Engine guards
- Compact LED fog lamp kit
Specifications
Engine
Engine type | Liquid-cooled, 4-stroke, parallel twin |
Compression ratio | 11.3:1 |
Valve system | DOHC, 8 valves |
Bore x stroke | 70.0 x 58.6 mm |
Displacement | 451 cm³ |
Fuel system | Fuel injection: 32 mm x 2 |
Lubrication | Forced lubrication, wet sump |
Starting system | Electric |
Ignition system | Digital |
Performance & Transmission
Maximum power | 33.4 kW {45 PS} / 9,000 rpm |
Maximum torque | 42.6 N•m {4.3 kgf•m} / 6,000 rpm |
CO2 emission | 93.0 g/km |
Fuel consumption | 4.0 l/100km |
Transmission | 6-speed, return shift |
Clutch | Wet, multi disc |
Primary reduction ratio | 2.029 (69/34) |
Gear ratios 1st | 2.929 (41/14) |
Gear ratios 2nd | 2.056 (37/18) |
Gear ratios 3rd | 1.619 (34/21) |
Gear ratios 4th | 1.333 (32/24) |
Gear ratios 5th | 1.154 (30/26) |
Gear ratios 6th | 1.037 (28/27) |
Final drive | Sealed chain |
Final reduction ratio | 3.067 (46/15) |
Frame & Dimensions
Frame type | Trellis, high-tensile steel |
Rake | 28.0 ° |
Trail | 104 mm |
Wheel travel front | 210 mm |
Wheel travel rear | 196 mm |
Tyre, front | 90/90-21 M/C 54S |
Tyre, rear | 140/70-17 M/C 66S |
L x W x H | 2,300 x 980 x 1,460 mm |
Steering angle L/R | 40° / 40° |
Wheel base | 1,555 mm |
Ground clearance | 185 mm |
Fuel capacity | 16.0 litres |
Seat height | 870 mm |
Curb mass* | 195 kg |
| *Curb mass includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
Estimated dry weight** | 176 kg |
| **Estimated Dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
Brakes & Suspension
Front brake type | Single disc |
Front brake diameter | Ø 300 mm |
Front brake caliper type | Dual-piston |
Rear brake type | Single disc |
Rear brake diameter | Ø 230 mm |
Rear brake caliper type | Dual-piston |
Front suspension type | Inverted fork |
Front suspension diameter | Ø 43 mm |
Rear suspension type | Uni-Trak swingarm |
